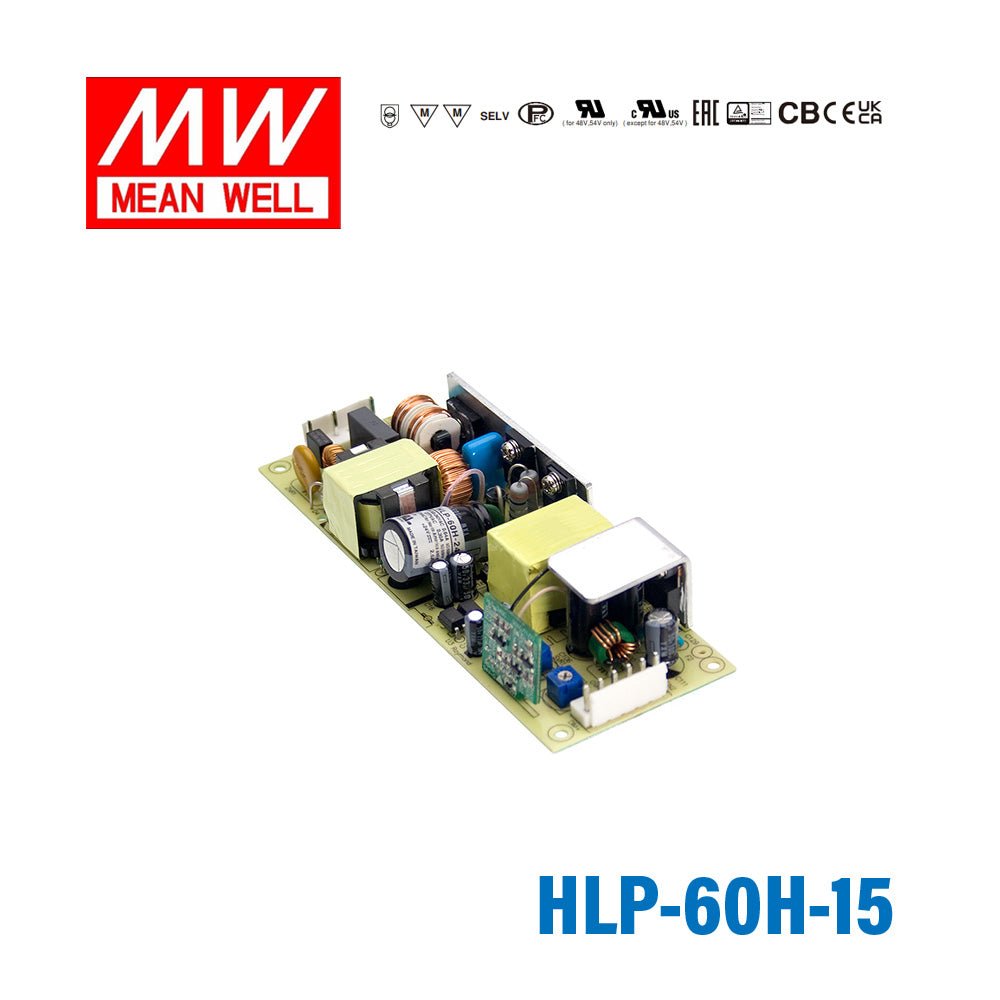

Mean Well HLP-60H-15 PCB Power Supply 60W 15V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well HLP-60H-15?
The HLP-60H-15 is a 60W PCB power supply with a 15V DC output. It is rated for 4.0A output current. This model is designed for applications that need a regulated 15V supply in a compact open-frame format.
What input voltage range does the HLP-60H-15 support?
This model accepts a universal AC input range of 90-305VAC. It also supports 127-431VDC input. That wide range makes it suitable for equipment used across different power environments.
Is the Mean Well HLP-60H-15 suitable for LED lighting applications?
Yes, the HLP-60H-15 is intended for built-in LED lighting systems. It includes built-in active PFC and supports three-in-one dimming through 1-10Vdc, PWM signal, or resistance control. These features make it relevant for LED-related OEM and commercial lighting designs.
Can the HLP-60H-15 be used in demanding temperature conditions?
This power supply is rated for operation from -40°C to +70°C, subject to the manufacturer's derating guidance. It is cooled by free air convection, so no fan is required. The unit is also specified as suitable for dry and damp locations.
What protection features are built into the HLP-60H-15?
The HLP-60H-15 includes protection for short circuit, over current, over voltage, and over temperature. Over current protection operates with constant current limiting and recovers automatically after the fault is removed. Short circuit protection also recovers automatically, while over-voltage and over-temperature conditions require re-powering to recover.
What certifications or safety standards apply to this model?
The HLP-60H-15 is approved to UL8750, CSA C22.2 No. 250.0-08 except for 48V and 54V variants, BS EN/EN61347-1, BS EN/EN61347-2-13, and EAC TP TC 004. Its design also refers to UL60950-1. These ratings make it a strong fit for professional and commercial equipment applications.
