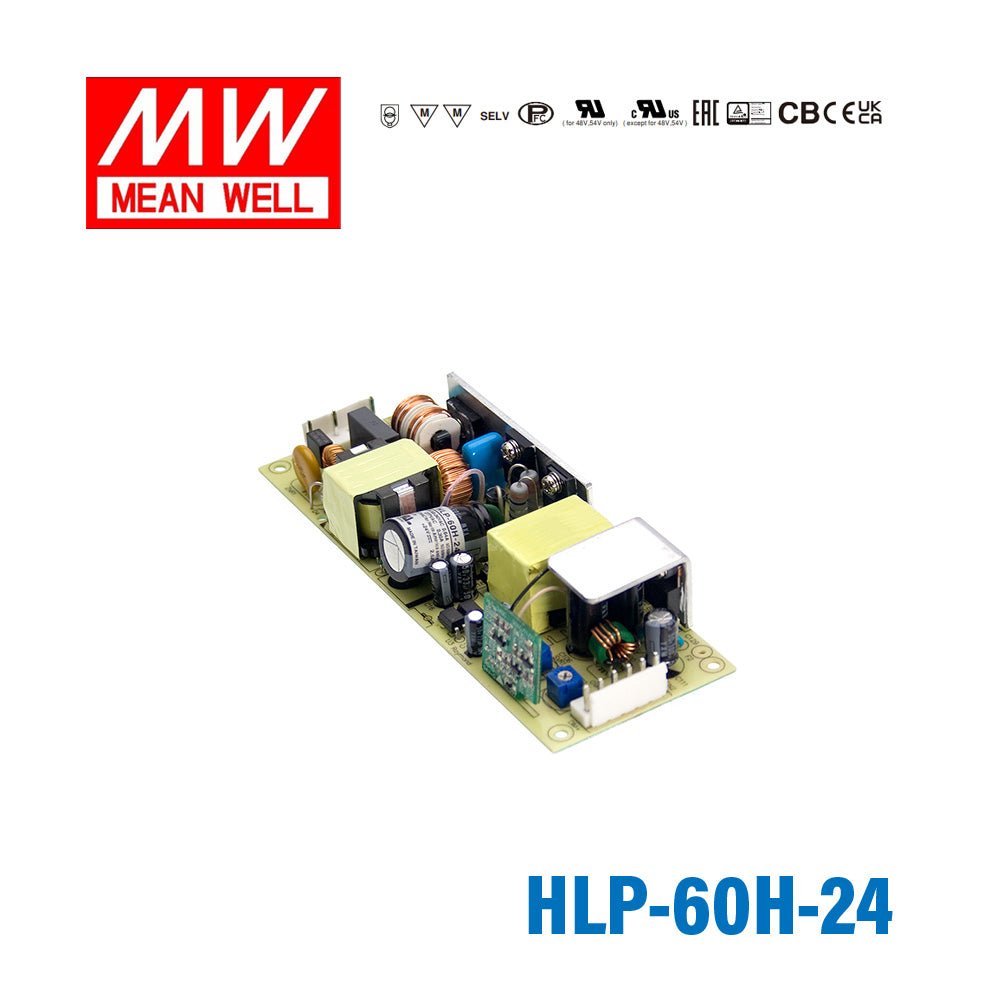

Mean Well HLP-60H-24 PCB Power Supply 60W 24V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well HLP-60H-24?
The HLP-60H-24 is a 60W open-frame PCB power supply with a 24V DC output. Its rated output current is 2.5A, which matches applications that need a regulated 24V supply within that power range.
Is the HLP-60H-24 suitable for LED lighting applications?
Yes. Mean Well specifies this model as suitable for built-in LED lighting systems, and it includes three-in-one dimming support. It is designed for constant voltage output with adjustable constant current level support for lighting-related use cases.
What dimming control options does the HLP-60H-24 support?
This model supports three dimming methods: 1 to 10V DC, PWM signal, and resistance dimming. That gives more flexibility when selecting a compatible lighting control approach for a 24V LED system.
Can the HLP-60H-24 be used in demanding temperature or location conditions?
The HLP-60H-24 has a working temperature range of -40°C to +70°C, subject to the product's derating curve. Mean Well also rates it for dry and damp locations, which makes it more suitable for enclosed commercial and industrial environments than indoor-only power supplies.
What protections are built into the HLP-60H-24?
This model includes short circuit, over current, over voltage, and over temperature protection. Short circuit and over current faults recover automatically after the fault is removed, while over-voltage and over-temperature protection require re-powering to recover.
How does the HLP-60H-24 differ from a basic 24V power supply?
Compared with a basic 24V PCB supply, the HLP-60H-24 adds active PFC, a wide 90 to 305VAC input range, built-in dimming control, and Class 2 rating. Those features make it better suited for LED lighting and broader AC input environments where a standard fixed-input supply may be too limited.
