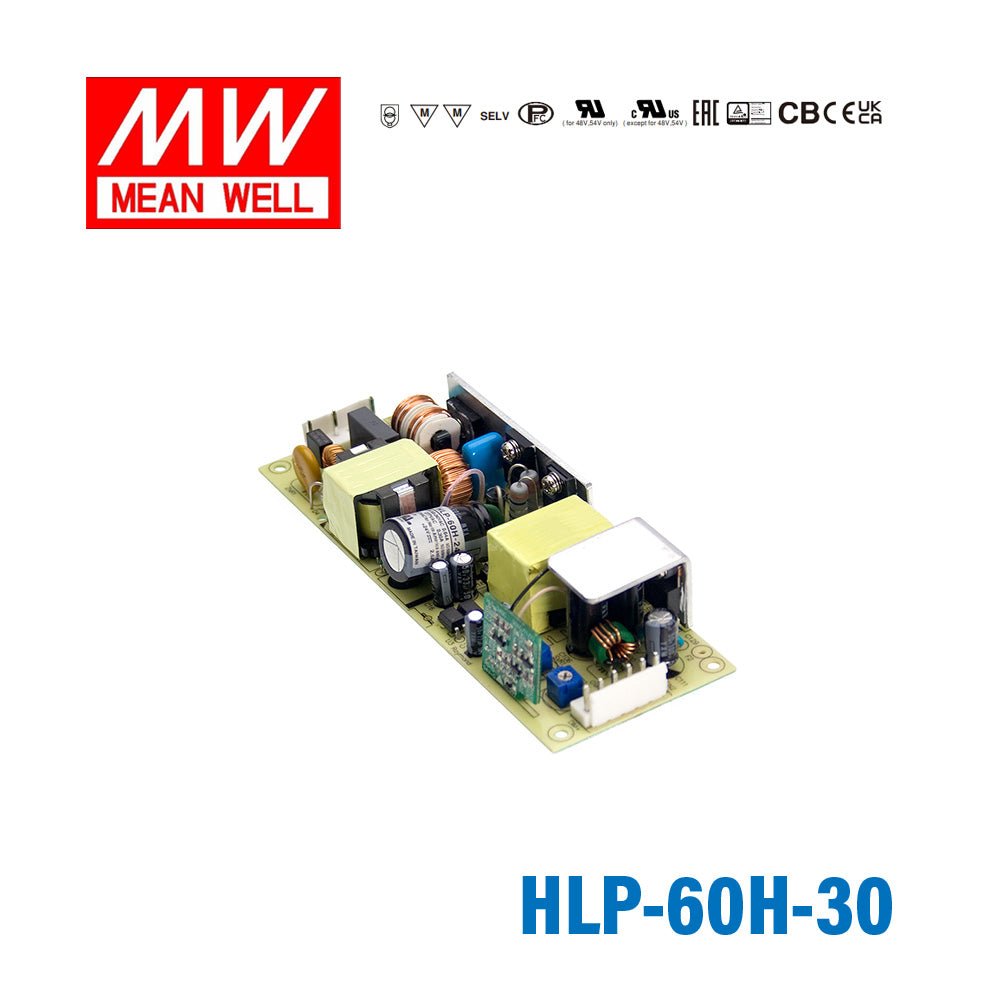

Mean Well HLP-60H-30 PCB Power Supply 60W 30V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating60 Watt
-
Output Voltage30 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What is the Mean Well HLP-60H-30 designed for?
The HLP-60H-30 is a 60W PCB power supply intended for built-in LED lighting systems. It is a Class 2 power unit and is suited for applications where a compact open-frame AC/DC supply with dimming support is needed.
What are the main electrical ratings of the HLP-60H-30?
This model is rated for 60W output with a nominal 30V output and 2.0A rated current. It accepts a universal 90-305VAC input range and also includes built-in active power factor correction.
What dimming control methods does the HLP-60H-30 support?
The HLP-60H-30 supports three-in-one dimming using 1-10Vdc, PWM signal, or resistance. That gives buyers flexibility when selecting a compatible lighting control method for LED applications.
Is the HLP-60H-30 suitable for demanding environmental conditions?
This power supply is specified for operation from -40°C to +70°C, subject to the product's derating curve. It is also described as suitable for dry and damp locations and uses free air convection cooling.
What protection features are built into the HLP-60H-30?
The HLP-60H-30 includes short circuit, over current, over voltage, and over temperature protection. Depending on the fault type, it uses automatic recovery or shutdown with re-power-on recovery to help protect the power supply and connected equipment.
Why would a buyer choose the HLP-60H-30 over a basic fixed-output power supply?
Compared with a basic fixed-output supply, this model adds active PFC, three-in-one dimming control, and LED-lighting-oriented protections in a compact open-frame format. It is also rated for wide AC input up to 305VAC and includes a 3-year warranty.
