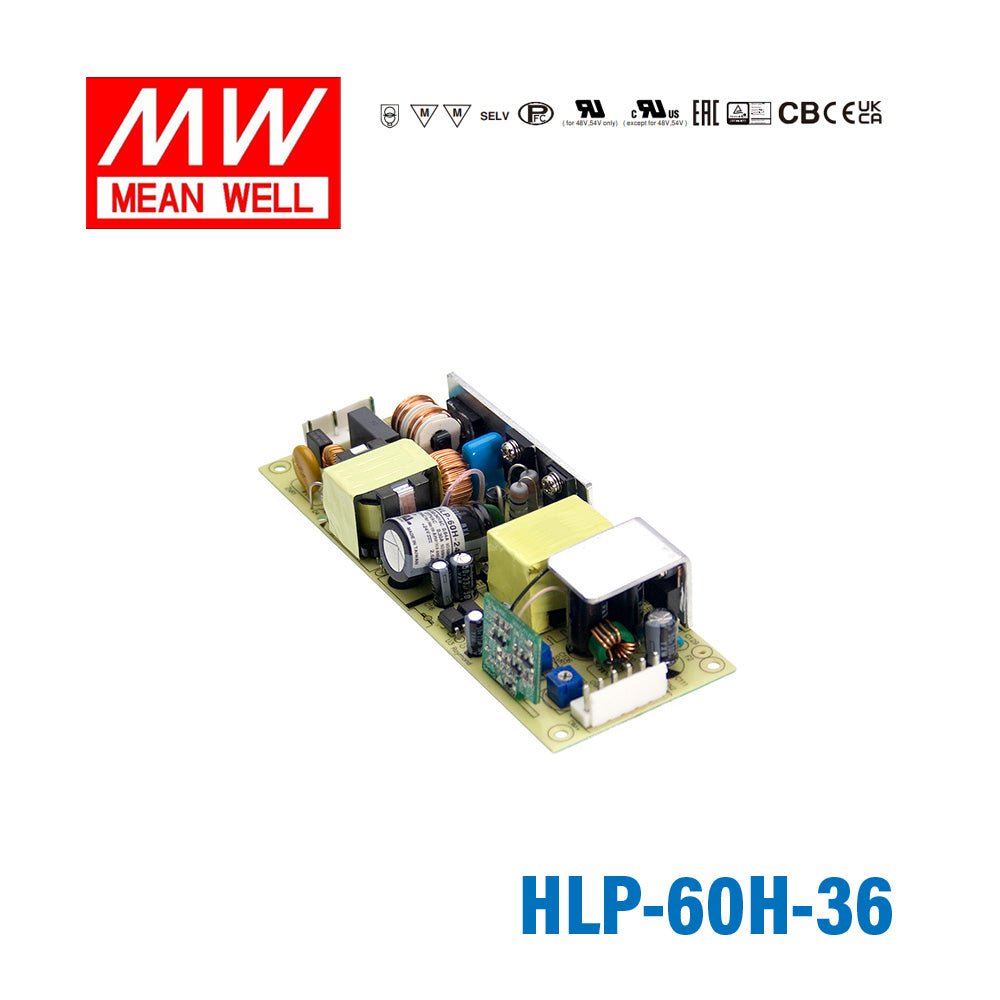

Mean Well HLP-60H-36 PCB Power Supply 60W 36V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating61.2 Watt
-
Output Voltage36 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What is the Mean Well HLP-60H-36 designed for?
The HLP-60H-36 is a 60W, 36V PCB power supply intended for built-in LED lighting systems. It is designed for applications that need a compact AC-DC power unit with constant current level adjustment and dimming support.
What are the key electrical ratings of the HLP-60H-36?
This model provides a 36V output and is rated for 1.7A current with a 60W class power level. It accepts a universal 90-305VAC input range and also supports 127-431VDC input.
Does the HLP-60H-36 support dimming control?
Yes, the HLP-60H-36 includes three-in-one dimming capability. It supports 1-10Vdc, PWM signal, and resistance-based dimming control.
Is the HLP-60H-36 suitable for demanding environments?
This model is rated for operation from -40°C to +70°C, subject to the manufacturer's derating guidance. It is also specified as suitable for dry and damp locations, which makes it useful for a range of indoor lighting environments.
What protection features are built into the HLP-60H-36?
The HLP-60H-36 includes protection for short circuit, over current, over voltage, and over temperature conditions. Depending on the fault type, it uses constant current limiting, hiccup recovery, or shutdown with re-power-on recovery.
What makes the HLP-60H-36 a strong choice for OEM and commercial LED applications?
The unit combines universal AC input, active PFC, Class 2 status, and free-air convection cooling in a compact PCB-format design. It is also 100% full-load burn-in tested and backed by a 3-year warranty, which supports reliability-focused commercial use.
