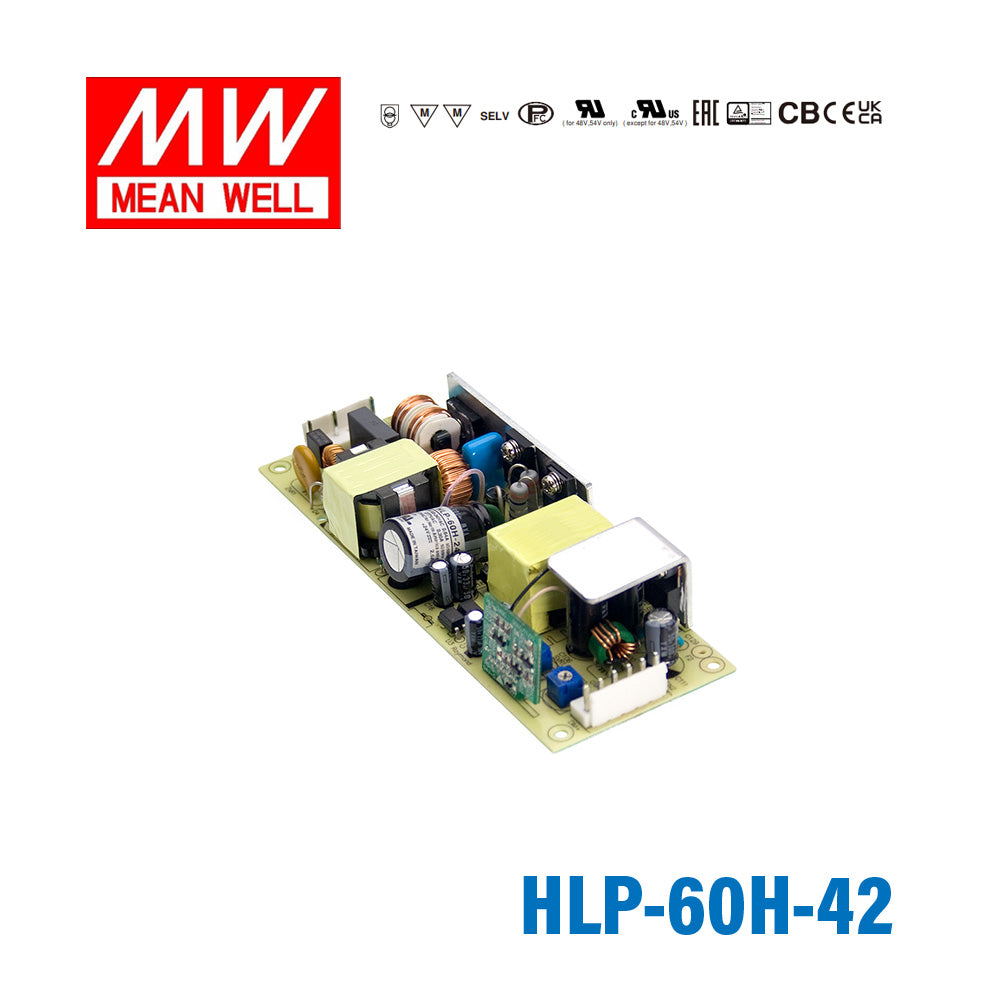

Mean Well HLP-60H-42 PCB Power Supply 60W 42V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating60.9 Watt
-
Output Voltage48 Volt
-
Rated Current1.45 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What kind of applications is the Mean Well HLP-60H-42 designed for?
The HLP-60H-42 is intended for built-in LED lighting systems where a compact PCB-style AC/DC power supply is needed. Its product positioning and listed features make it a fit for commercial and OEM lighting applications rather than general-purpose consumer use.
What are the main electrical ratings of the HLP-60H-42?
This model is rated at about 60W output power with a rated current of 1.45A. It supports universal AC input from 90 to 305VAC and includes active power factor correction (PFC).
Does the HLP-60H-42 support dimming control?
Yes. The HLP-60H-42 supports three-in-one dimming control using 1 to 10Vdc, PWM signal, or resistance-based dimming. That makes it more flexible for LED lighting designs that need multiple dimming method options.
Is the HLP-60H-42 suitable for demanding temperature conditions?
Yes, this power supply is specified for operation from -40°C to +70°C, subject to the manufacturer's derating guidance. It is also cooled by free air convection, so it is designed for applications where passive cooling is preferred.
What protection and compliance features does the HLP-60H-42 include?
The HLP-60H-42 includes short circuit, over current, over voltage, and over temperature protection. It is also described as a Class 2 power unit and lists safety approvals including UL8750, CSA C22.2 No. 250.0-08, and EN61347-related standards.
