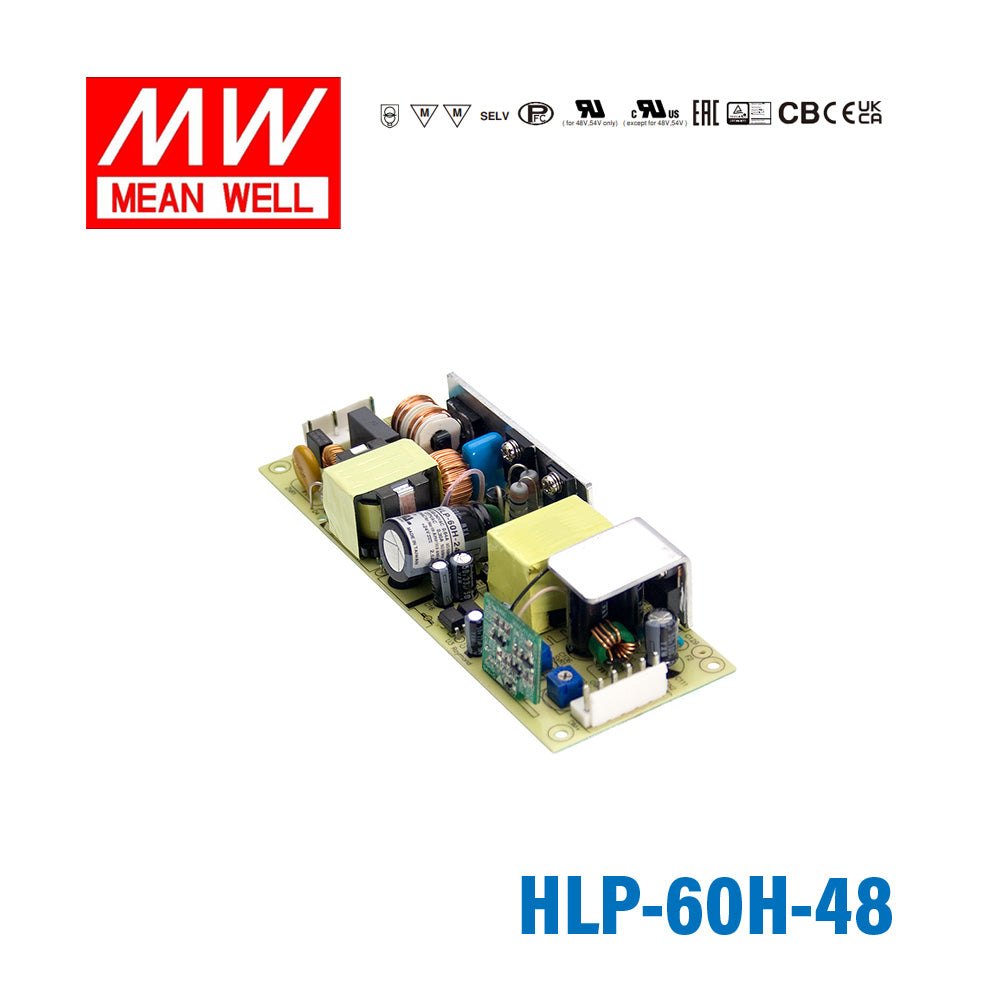

Mean Well HLP-60H-48 PCB Power Supply 60W 48V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating62.4 Watt
-
Output Voltage48 Volt
-
Rated Current1.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What is the main use case for the Mean Well HLP-60H-48?
The HLP-60H-48 is designed for built-in LED lighting systems that need a 48V constant voltage power supply. It is an open-frame PCB power supply rated at 60W, making it suitable for OEM and industrial lighting applications where compact internal power conversion is needed.
What are the output ratings of the HLP-60H-48?
This model provides a 48V DC output and is rated for 1.3A. Its listed power rating is 62.4W, and the product name identifies it as a 60W class power supply.
Does the HLP-60H-48 support dimming control?
Yes, the HLP-60H-48 supports three-in-one dimming control. The supported dimming methods are 1 to 10V DC, PWM signal, and resistance-based dimming.
What input voltage range does this power supply accept?
The HLP-60H-48 has a universal AC input range of 90 to 305VAC. It also supports 127 to 431VDC input, which gives it flexibility for a wide range of power environments.
Can the HLP-60H-48 be used in demanding temperature conditions?
This model is rated for operation from -40°C to +70°C, subject to the manufacturer's derating guidance. That makes it suitable for applications exposed to both low and elevated ambient temperatures.
Is the HLP-60H-48 intended for dry or damp locations?
Yes, the HLP-60H-48 is specified as suitable for dry and damp locations. That makes it a practical choice for indoor lighting environments where some moisture exposure may be present but full wet-location protection is not stated here.
What protection features are built into the HLP-60H-48?
The HLP-60H-48 includes short circuit, over current, over voltage, and over temperature protection. Depending on the fault type, it uses automatic recovery or shutdown with re-power-on recovery as described in the product specifications.
What distinguishes the HLP-60H-48 from simpler fixed-output power supplies?
Compared with more basic PCB power supplies, the HLP-60H-48 combines active PFC, Class 2 designation, and three-in-one dimming support in one model. It is also built for LED lighting applications and supports free-air convection cooling without requiring forced-air cooling in the stated design context.
