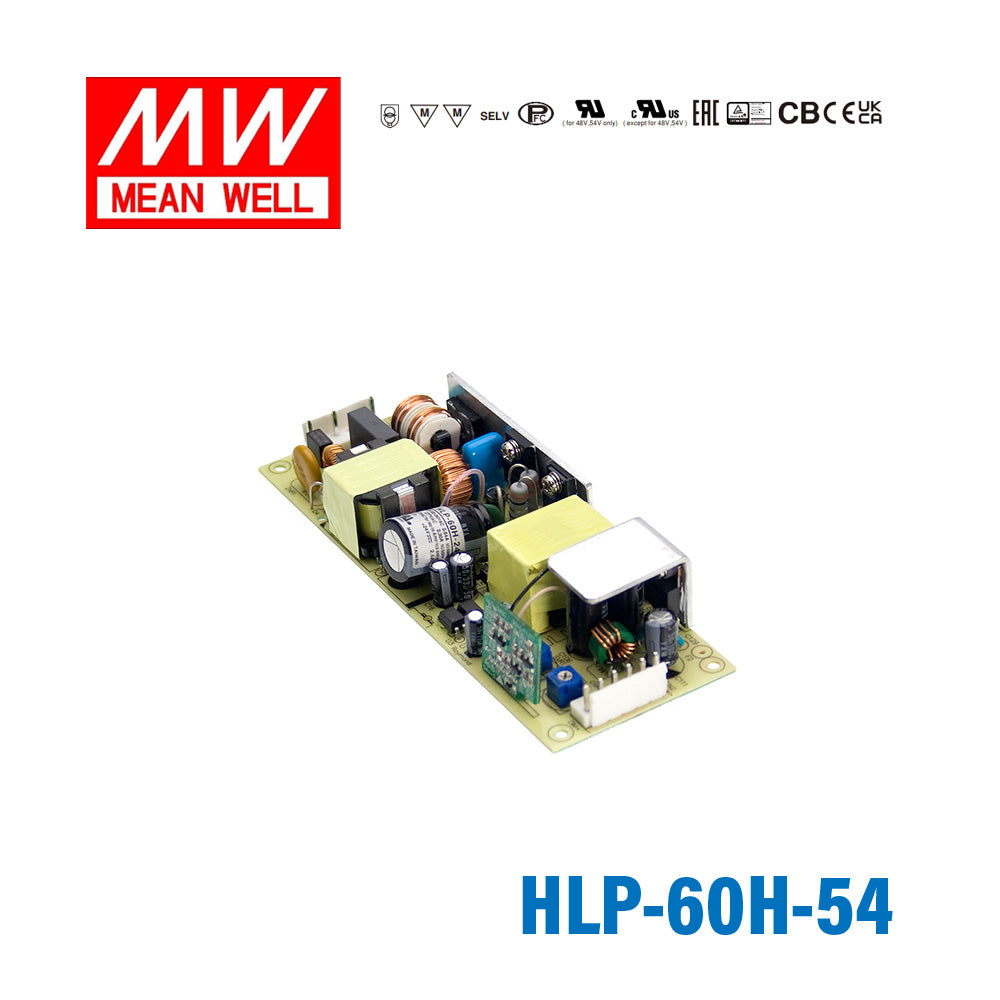

Mean Well HLP-60H-54 PCB Power Supply 60W 54V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating62.1 Watt
-
Output Voltage54 Volt
-
Rated Current1.15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well HLP-60H-54?
The HLP-60H-54 is a 60W class PCB power supply with a 54V DC output and 1.15A rated current. The provided power rating is 62.1W, making it suitable for constant-voltage LED and power applications that need a 54V supply.
What kinds of applications is the HLP-60H-54 designed for?
This model is intended for built-in LED lighting systems where a compact PCB-style AC-DC supply is needed. Its three-in-one dimming support and Class 2 designation make it a fit for professional lighting products that require regulated 54V output.
Does the Mean Well HLP-60H-54 support dimming control?
Yes. The HLP-60H-54 supports three dimming methods: 1 to 10V DC, PWM signal, and resistance dimming. That flexibility helps it integrate into a wider range of LED lighting control schemes without changing the power supply model.
Can the HLP-60H-54 be used in demanding temperature conditions?
The rated working temperature range is -40°C to +70°C, subject to the manufacturer's derating guidance. It is also specified as suitable for dry and damp locations, which makes it more versatile than indoor-only power supplies.
What protection features are included in the HLP-60H-54?
This model includes short circuit, over current, over voltage, and over temperature protection. Depending on the fault type, it uses automatic recovery or requires re-powering after shutdown, which helps protect both the power supply and the connected load.
What input range does the HLP-60H-54 accept?
The HLP-60H-54 has a universal AC input range of 90 to 305VAC and also supports 127 to 431VDC input. It also includes active power factor correction, which is important in many commercial and lighting applications.
