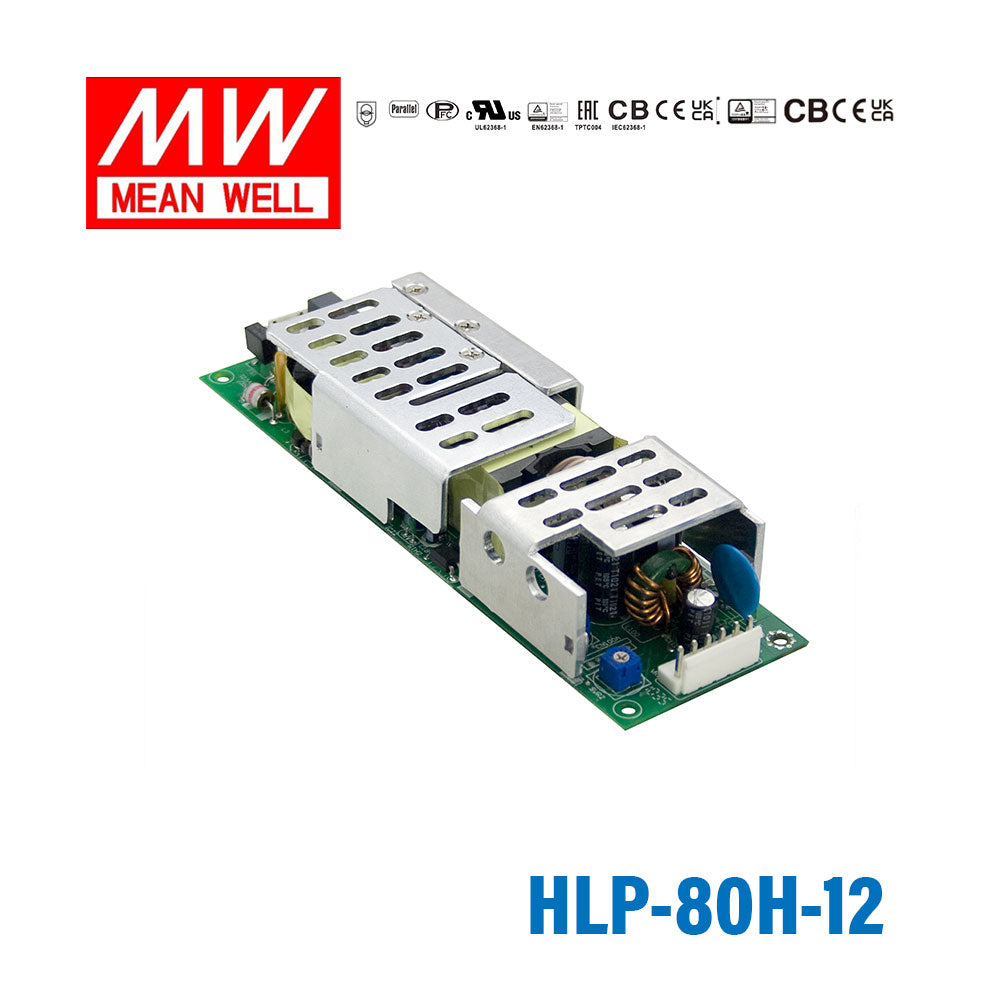

Mean Well HLP-80H-12 PCB Power Supply 60W 12V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well HLP-80H-12?
The HLP-80H-12 is a 12V open-frame AC/DC power supply rated for 60W total output power. Its rated output current is 5A, making it suitable for applications that need a regulated 12V DC supply within that power range.
What kinds of applications is the HLP-80H-12 designed for?
This model is intended for built-in LED lighting systems and other equipment that needs a compact PCB-style AC/DC power supply. Its open-frame format and Class 2 designation make it a fit for OEM and embedded commercial or industrial designs where a 12V, 60W supply is required.
Can the HLP-80H-12 be used in challenging temperature conditions?
Yes. The specified operating temperature range is -40°C to +70°C, which supports use in demanding indoor equipment environments when the application stays within the product's derating limits. The unit is also described as suitable for dry and damp locations.
What protection features are included in the Mean Well HLP-80H-12?
The HLP-80H-12 includes short circuit, over current, over voltage, and over temperature protection. According to the specification, short circuit protection uses hiccup mode with automatic recovery after the fault is removed, while over current protection uses constant-current limiting with automatic recovery.
What input range does the HLP-80H-12 support?
This power supply accepts a universal AC input range of 90 to 305VAC, and it also lists a 127 to 431VDC input range. That wide input capability helps it fit designs intended for global mains environments without needing multiple regional variants.
How does the HLP-80H-12 compare with a sealed power supply?
The HLP-80H-12 is an open-frame PCB power supply, so it is aimed at built-in equipment designs rather than standalone enclosed use. Compared with a sealed power supply, it prioritizes compact integration into OEM assemblies while still offering active PFC, free-air convection cooling, and standard protection features.
