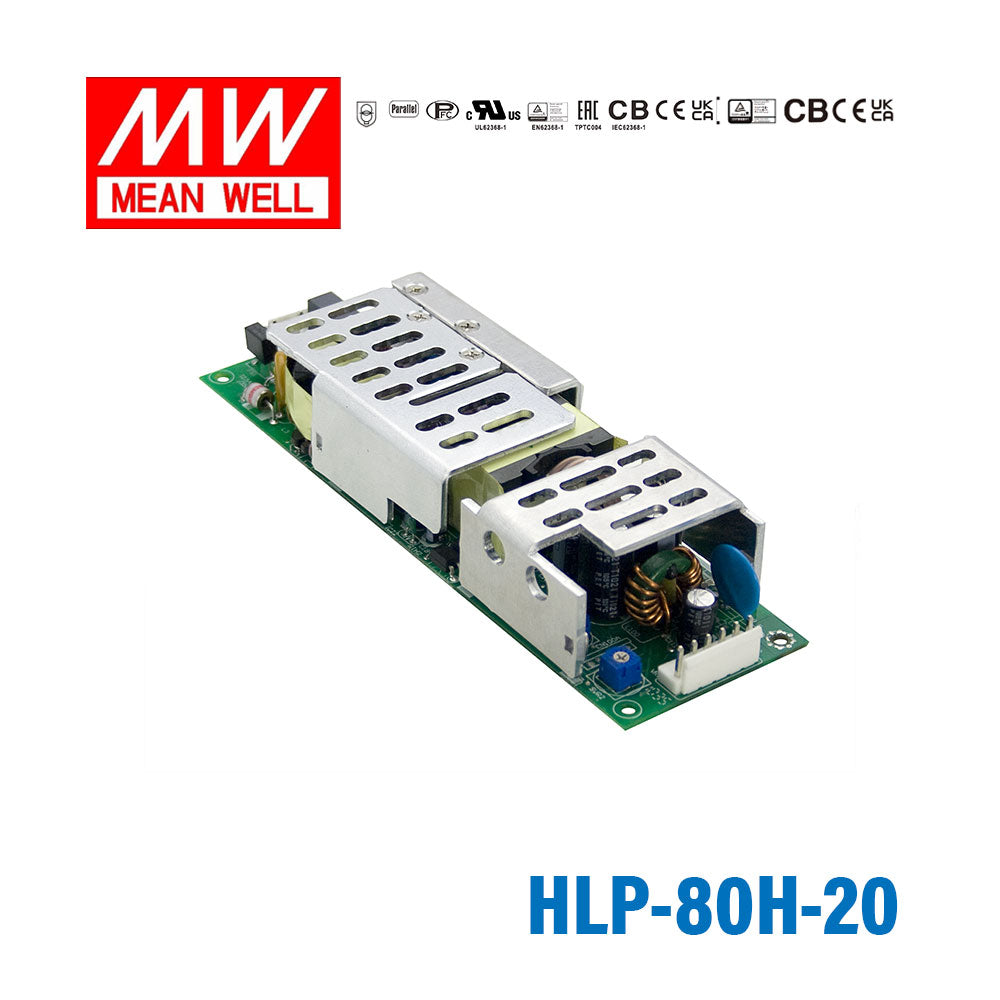

Mean Well HLP-80H-20 PCB Power Supply 80W 20V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating80 Watt
-
Output Voltage20 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What are the main electrical ratings of the Mean Well HLP-80H-20?
The HLP-80H-20 is an 80W PCB power supply with a 20V DC output and 4.0A rated current. It accepts a universal 90-305VAC input range and includes built-in active PFC for broad AC input compatibility.
What types of applications is the HLP-80H-20 designed for?
Mean Well specifies this model as suitable for built-in LED lighting systems. Its 20V output, 80W capacity, Class 2 rating, and free-air convection cooling make it relevant for OEM and commercial lighting designs that need an open-frame AC-DC power supply.
Can the HLP-80H-20 be used in dry or damp locations?
Yes. The product description states that it is suitable for dry and damp locations. Buyers should still confirm that the full end equipment design matches the environmental requirements of the final application.
What protection features are built into the HLP-80H-20?
This model includes short circuit, over current, over voltage, and over temperature protection. Over-current protection operates with constant-current limiting, while short-circuit faults recover automatically after the fault is removed.
When is the HLP-80H-20 the right choice compared with another output-voltage version?
The HLP-80H-20 is the right fit when your equipment requires a nominal 20V output and up to 4A of current within an 80W power budget. If your design needs a different DC output voltage, a different HLP series voltage variant would be the better match.
Is the HLP-80H-20 suitable for demanding operating temperatures?
It is rated for operation from -40°C to +70°C, subject to the manufacturer's derating guidance. That range makes it relevant for industrial and commercial equipment exposed to both low and elevated ambient temperatures.
What should OEM buyers know about the physical format of the HLP-80H-20?
The HLP-80H-20 is an open-frame PCB power supply with dimensions of 167 x 53 x 29.5 mm and a weight of 0.27 kg. That makes it useful for equipment builders who need a compact internal AC-DC supply rather than a fully enclosed external unit.
