Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

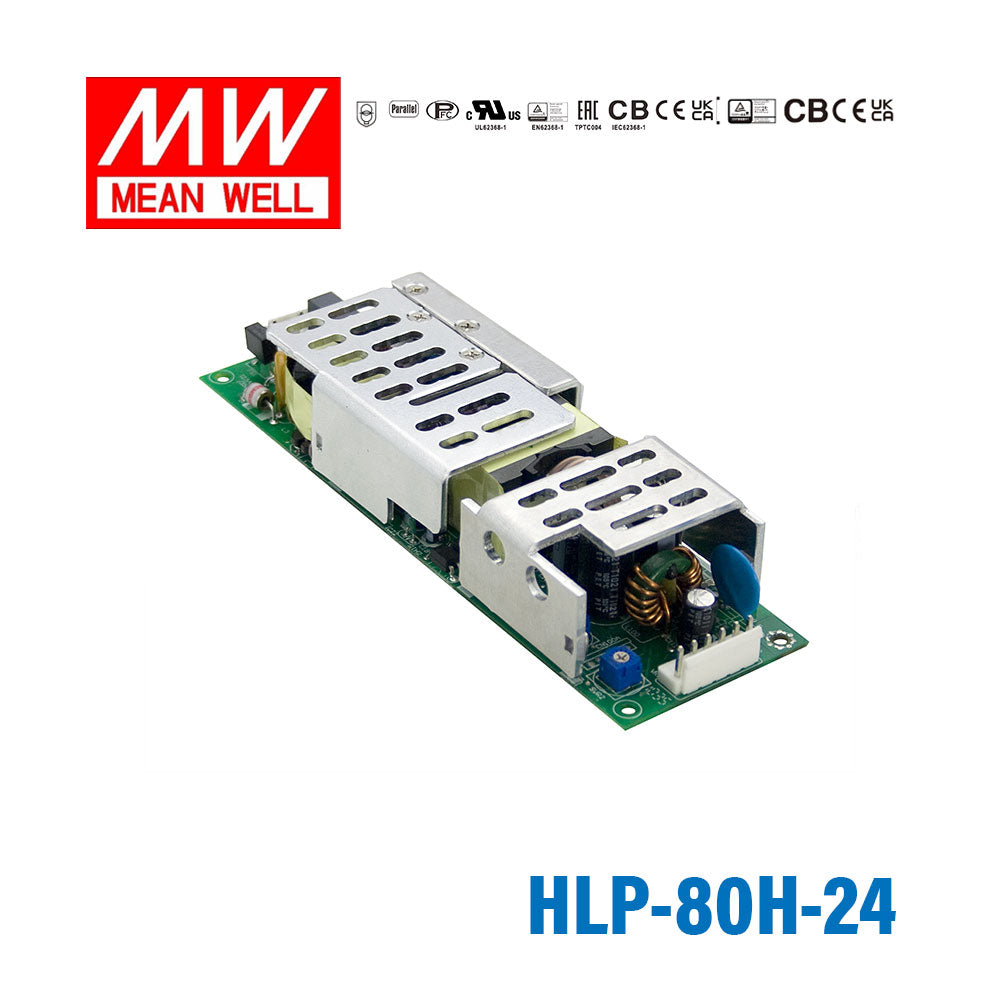

Mean Well HLP-80H-24 PCB Power Supply 80W 24V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating81.6 Watt
-
Output Voltage24 Volt
-
Rated Current3.4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What kind of applications is the Mean Well HLP-80H-24 designed for?
The HLP-80H-24 is an 80W open-frame AC/DC power supply intended for built-in LED lighting systems. Its PCB-style format makes it suitable for OEM and embedded equipment applications where a compact internal power supply is needed.
What are the main electrical ratings of the HLP-80H-24?
This model provides a 24V DC output with a rated current of 3.4A and a power rating of 81.6W. It accepts a universal AC input range of 90-305VAC, which supports use across a wide range of supply conditions.
What protection features are included in the HLP-80H-24?
The HLP-80H-24 includes short circuit, over current, over voltage, and over temperature protection. According to the product data, short circuit and over current conditions recover automatically after the fault is removed, while over-voltage and over-temperature protection require re-powering to recover.
Can the HLP-80H-24 be used in demanding temperature conditions?
This power supply is rated for operation from -40°C to +70°C, subject to the manufacturer's derating guidance. That range makes it suitable for industrial and commercial environments where temperatures may vary significantly.
Is the HLP-80H-24 intended for dry or damp locations?
Yes. The product description states that the HLP-80H-24 is suitable for dry and damp locations, which is useful for indoor lighting and enclosure-based applications that are not limited to strictly dry spaces.
How compact is the Mean Well HLP-80H-24?
The listed dimensions are 167 x 53 x 29.5 mm, and the weight is 0.27 kg. That gives buyers a relatively slim open-frame power supply for designs where internal space and weight matter.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLP-80H Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLP-80H-54 PCB Power Supply 80W 54V | 81W | 54V | 1.5A | Indoor | $49.32 | View |
| Mean Well HLP-80H-48 PCB Power Supply 80W 48V | 81.6W | 48V | 1.7A | Indoor | $49.32 | View |
| Mean Well HLP-80H-42 PCB Power Supply 80W 42V | 81.9W | 48V | 1.95A | Indoor | $49.32 | View |
| Mean Well HLP-80H-36 PCB Power Supply 80W 36V | 82.8W | 36V | 2.3A | Indoor | $49.32 | View |
| Mean Well HLP-80H-30 PCB Power Supply 80W 30V | 81W | 30V | 2.7A | Indoor | $49.32 | View |
| Mean Well HLP-80H-20 PCB Power Supply 80W 20V | 80W | 20V | 4A | Indoor | $49.32 | View |
| Mean Well HLP-80H-15 PCB Power Supply 75W 15V | 75W | 15V | 5A | Indoor | $49.32 | View |
| Mean Well HLP-80H-12 PCB Power Supply 60W 12V | 60W | 12V | 5A | Indoor | $49.32 | View |
