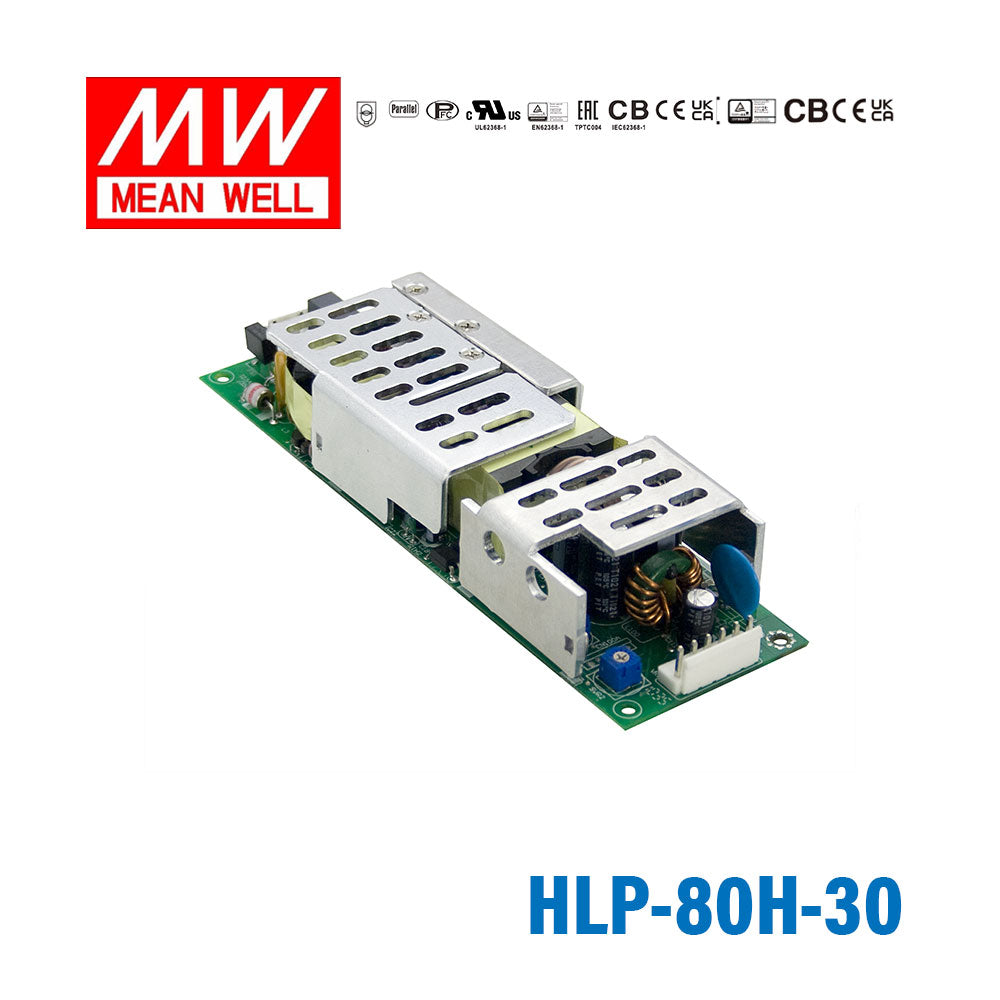

Mean Well HLP-80H-30 PCB Power Supply 80W 30V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating81 Watt
-
Output Voltage30 Volt
-
Rated Current2.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What are the main electrical ratings of the Mean Well HLP-80H-30?
The HLP-80H-30 is an 80W open-frame AC/DC power supply with a 30V output and 2.7A rated current. Its input range is 90-305VAC or 127-431VDC, which supports universal AC input use.
What types of applications is the HLP-80H-30 designed for?
This model is described as suitable for built-in LED lighting systems. Its 30V output, Class 2 rating, and open-frame PCB format make it relevant for OEM and commercial equipment designs that need a compact internal power supply rather than a finished external adapter.
Can the HLP-80H-30 be used in dry or damp locations?
Yes. Mean Well lists this model as suitable for dry and damp locations. It is also rated for operation from -40°C to +70°C, subject to the manufacturer's derating guidance.
What protections are built into the HLP-80H-30?
This model includes short circuit, over current, over voltage, and over temperature protection. The description also notes automatic recovery after some fault conditions are removed, while over-voltage and over-temperature protection require re-powering to recover.
What distinguishes the HLP-80H-30 from a standard fixed-output PCB power supply?
The HLP-80H-30 combines universal 90-305VAC input, active PFC, Class 2 classification, and a specification aimed at LED lighting use. The product description also notes adjustable constant current level capability, which makes it more application-specific than a basic general-purpose internal PSU.
What size is the HLP-80H-30 and why does that matter for equipment design?
The listed dimensions are 167 x 53 x 29.5 mm, and the weight is 0.27 kg. For OEMs and panel builders, that helps determine whether the unit will fit inside compact housings or lighting assemblies where internal clearance is limited.
