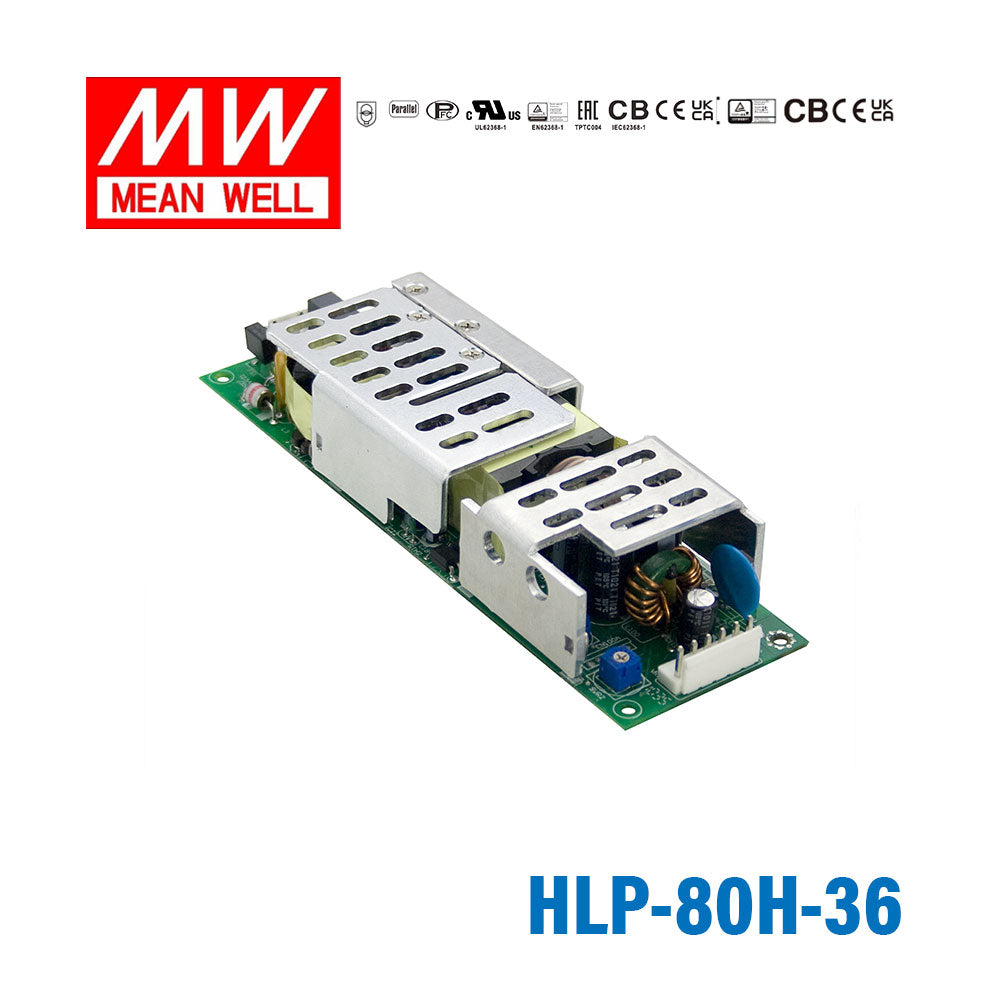

Mean Well HLP-80H-36 PCB Power Supply 80W 36V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating82.8 Watt
-
Output Voltage36 Volt
-
Rated Current2.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What type of applications is the Mean Well HLP-80H-36 designed for?
The HLP-80H-36 is intended for built-in LED lighting systems that need a 36V constant-voltage output. Its Class 2 design, active PFC, and three-in-one dimming capability make it a fit for commercial and OEM lighting applications where compact open-frame power supplies are used.
What are the main electrical ratings of the HLP-80H-36?
This model is rated at 80W class output, with listed product power of 82.8W, 36V output, and 2.3A rated current. It accepts a universal 90-305VAC input range and also supports 127-431VDC input.
Does the Mean Well HLP-80H-36 support dimming?
Yes. The product supports three-in-one dimming via 1-10Vdc, PWM signal, or resistance control. It is designed for LED lighting applications where output current adjustment is required.
Can the HLP-80H-36 be used in demanding temperature conditions?
The HLP-80H-36 has a working temperature range of -40°C to +70°C, subject to the derating curve. It is also specified as suitable for dry and damp locations, which helps in a range of indoor lighting environments.
What protection features are included in the HLP-80H-36?
This model includes short circuit, over current, over voltage, and over temperature protection. Over current uses constant-current limiting with automatic recovery after the fault is removed, while some other fault conditions require re-powering to recover.
How does the HLP-80H-36 compare to enclosed power supplies?
The HLP-80H-36 is an open-frame PCB power supply, so it is typically chosen for integration into OEM equipment rather than as a standalone enclosed unit. Buyers usually select it when they need a compact 36V LED power solution with active PFC and dimming support in a built-in form factor.
What certifications and warranty come with the HLP-80H-36?
The HLP-80H-36 is listed with safety approvals including UL8750, CSA C22.2 No. 250.0-08 except for certain voltage variants, BS EN/EN61347-1, BS EN/EN61347-2-13, and EAC TP TC 004. It also includes a 3-year warranty and is 100% full-load burn-in tested.
