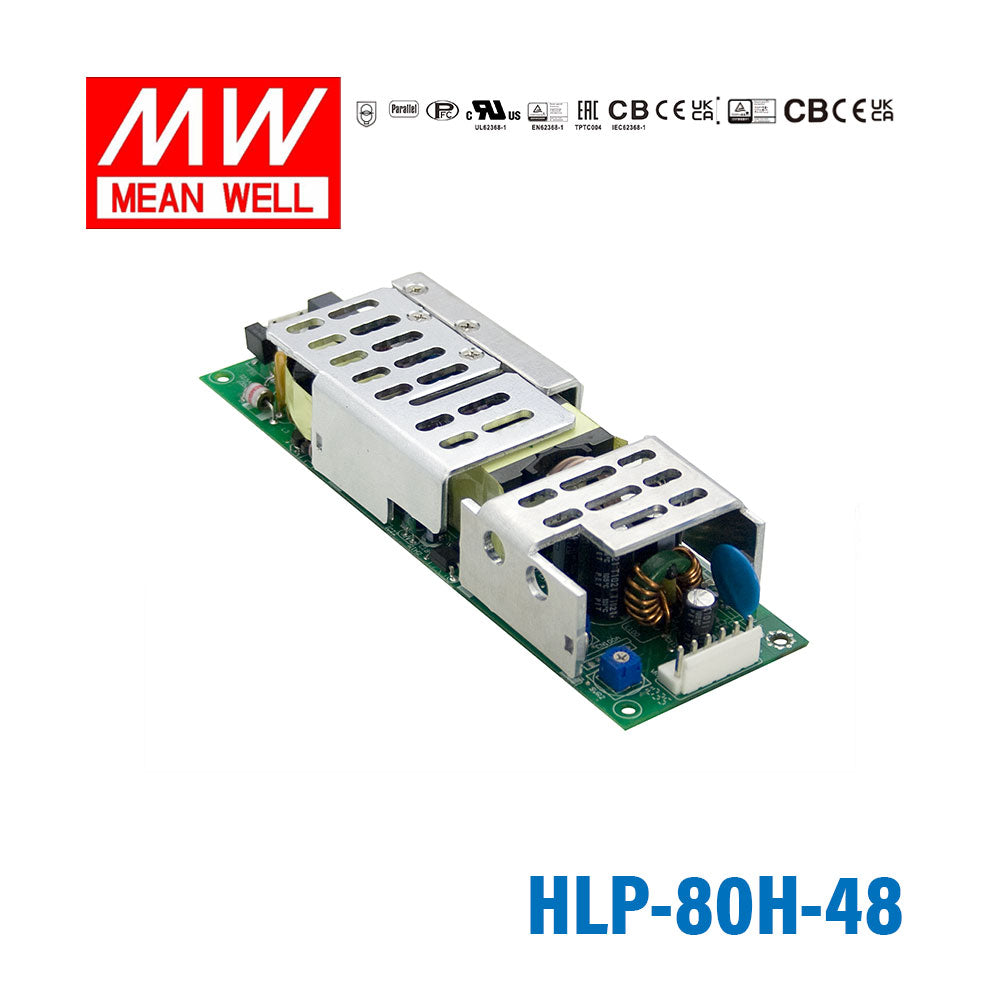

Mean Well HLP-80H-48 PCB Power Supply 80W 48V
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating81.6 Watt
-
Output Voltage48 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well HLP-80H-48?
The HLP-80H-48 is an 80W class open frame AC-DC power supply with a 48V DC output. Its rated output current is 1.7A, making it suitable for applications that require regulated 48V power within that power range.
What kinds of applications is the HLP-80H-48 designed for?
This model is intended for built-in LED lighting systems and other equipment that needs a compact 48V open frame power supply. Its Class 2 rating, free air convection cooling, and open frame form factor make it relevant for enclosed OEM and commercial lighting designs.
What input voltage range does the HLP-80H-48 support?
The HLP-80H-48 accepts a universal AC input range of 90-305VAC and also supports 127-431VDC input. That wide range helps it fit projects that need flexibility across different mains power environments.
Can the HLP-80H-48 be used in demanding temperature conditions?
Yes. This power supply is rated for operation from -40°C to +70°C, with derating at higher temperatures as noted in the product data. It is also described as suitable for dry and damp locations.
What protection features are included in the HLP-80H-48?
The HLP-80H-48 includes short circuit, over current, over voltage, and over temperature protection. Depending on the fault type, it uses automatic recovery or requires re-powering after the fault condition is removed.
What makes the HLP-80H-48 different from a basic fixed-output power supply?
Compared with simpler fixed-output units, this model includes active power factor correction, free air convection cooling, and a 100% full load burn-in test. The product listing also identifies it as a Class 2 power unit intended for LED lighting applications, which can matter for commercial product selection.
