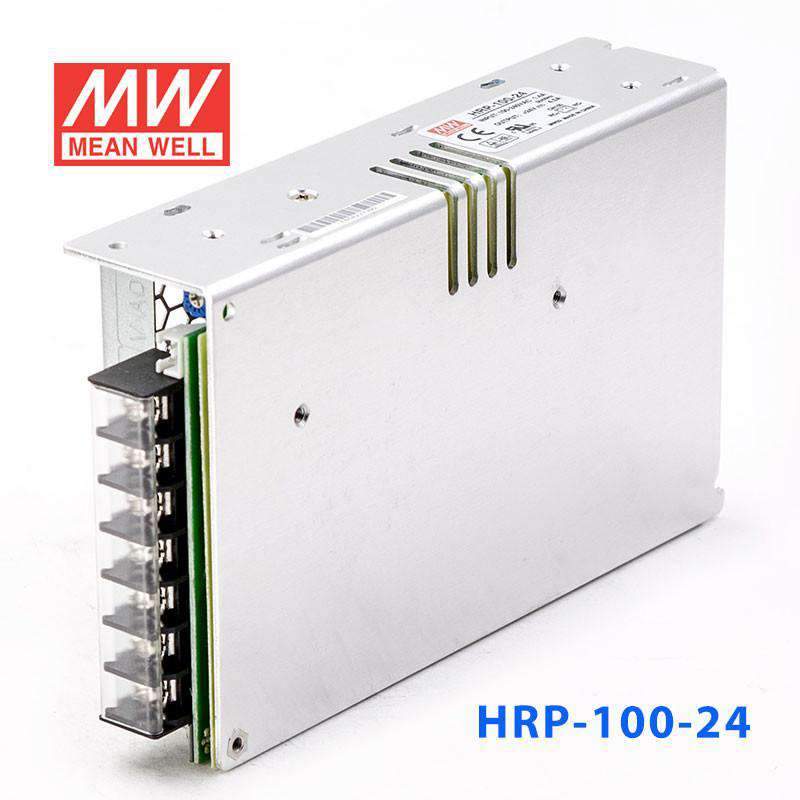

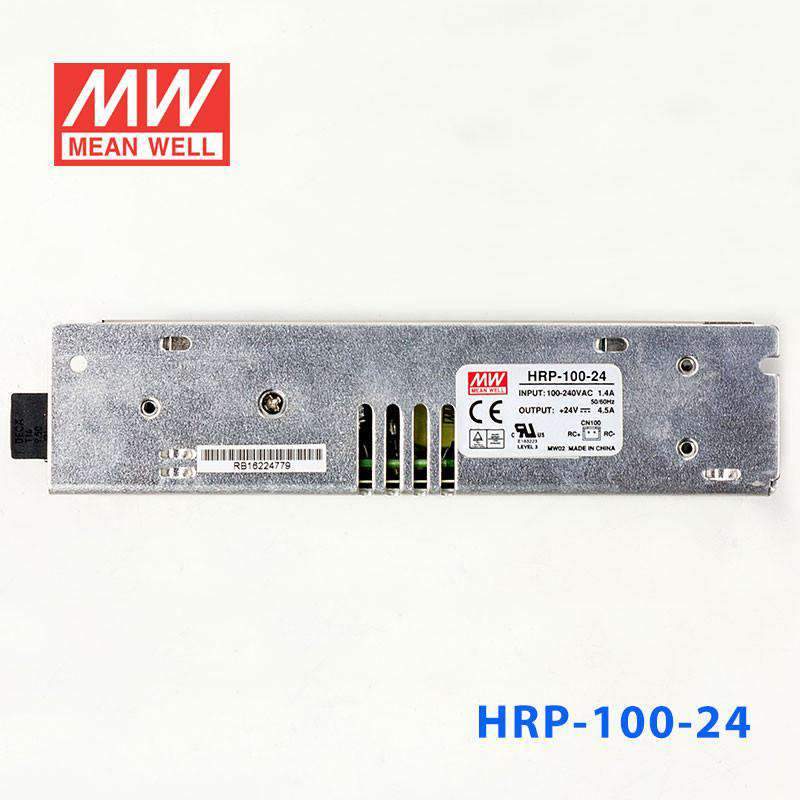

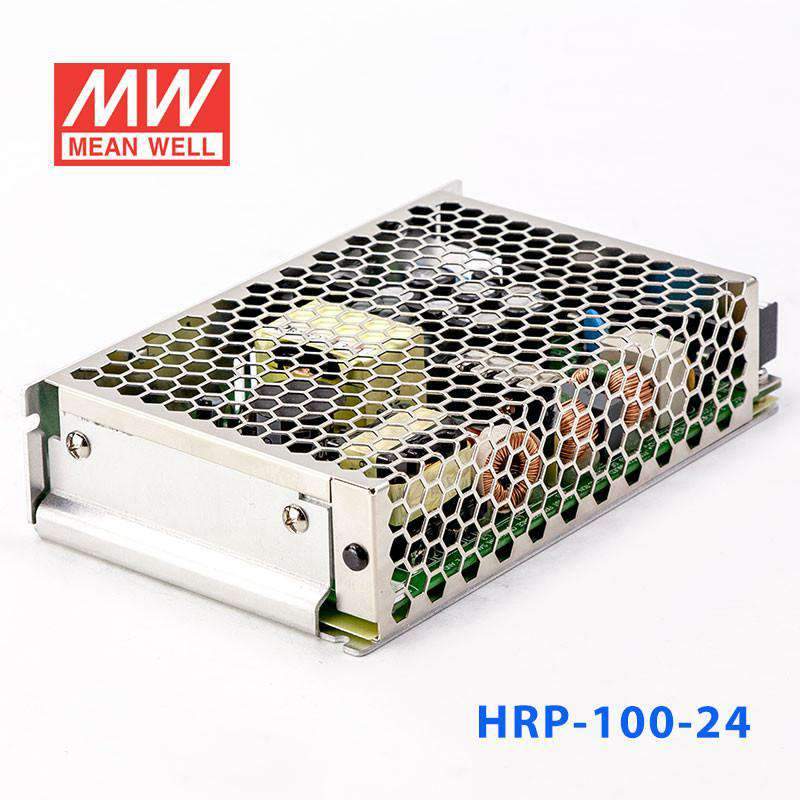

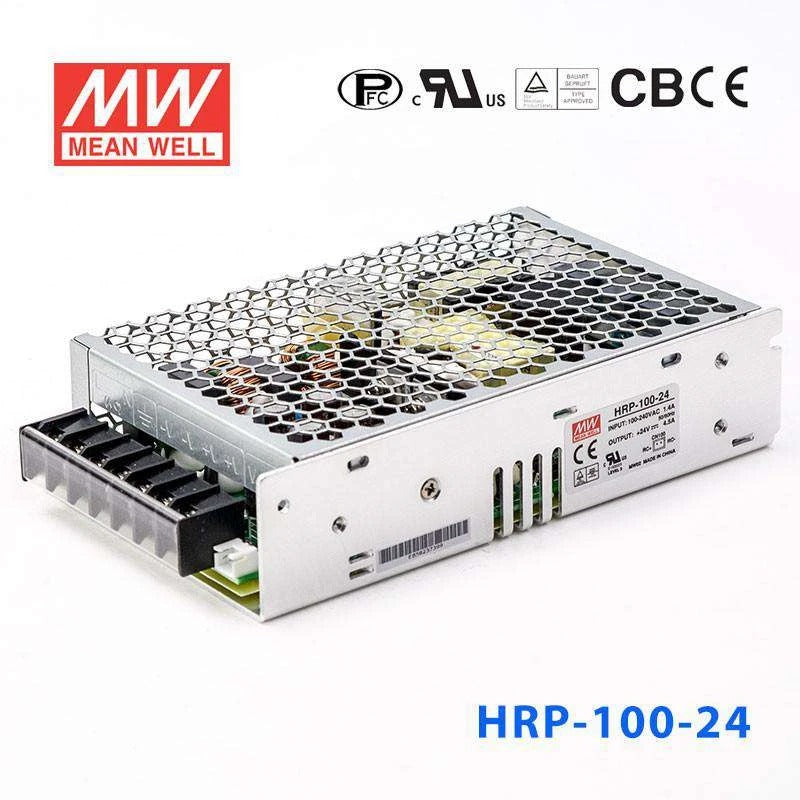

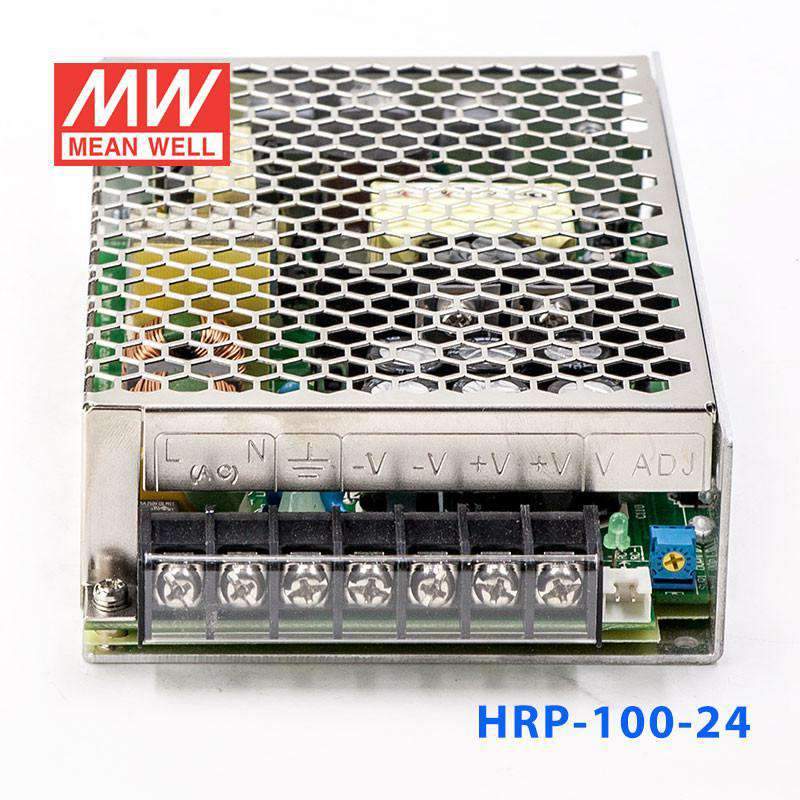

Mean Well HRP-100-24 Power Supply 108W 24V
The HRP-100 is a 100W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating108 Watt
-
Output Voltage24 Volt
-
Rated Current4.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.23 lb
::specification::
Frequently Asked Questions
Can I use the HRP-100-24 for a 24V PLC, I/O, or automation control system?
Yes, if the system uses constant 24V DC and the total demand stays within 108W and 4.5A. That makes it suitable for lower-power 24V automation loads rather than larger 24V cabinets with heavier current demand.
Is the HRP-100-24 suitable for 24V sensors, relays, and industrial control accessories?
It can support 24V sensors, relays, and control accessories when their combined load does not exceed 4.5A or 108W. Because it is a constant-voltage model, it matches equipment designed for a fixed 24V DC supply.
Can this model power 24V embedded or industrial computing equipment?
It is a reasonable choice for 24V embedded or industrial computing hardware that requires constant 24V output and stays within 108W total load. The 85-264VAC input range is also useful where the same hardware platform may see different AC input conditions.
Will the HRP-100-24 handle cold or hot factory environments?
Its specified operating range is -40°C to +60°C, which supports use in demanding industrial temperature conditions. No IP rating is listed in the supplied specs, so these data do not confirm suitability for direct outdoor exposure.
How does the HRP-100-24 compare with the other HRP-100 versions?
The listed HRP-100 outputs are 3.3V 20A 66W, 5V 17A 85W, 7.5V 13.5A 101.3W, 12V 8.5A 102W, 15V 7A 105W, 24V 4.5A 108W, 36V 2.9A 104.4W, and 48V 2.2A 105.6W. This 24V version has the highest wattage shown in that group at 108W, with current scaled to 4.5A at 24V.
