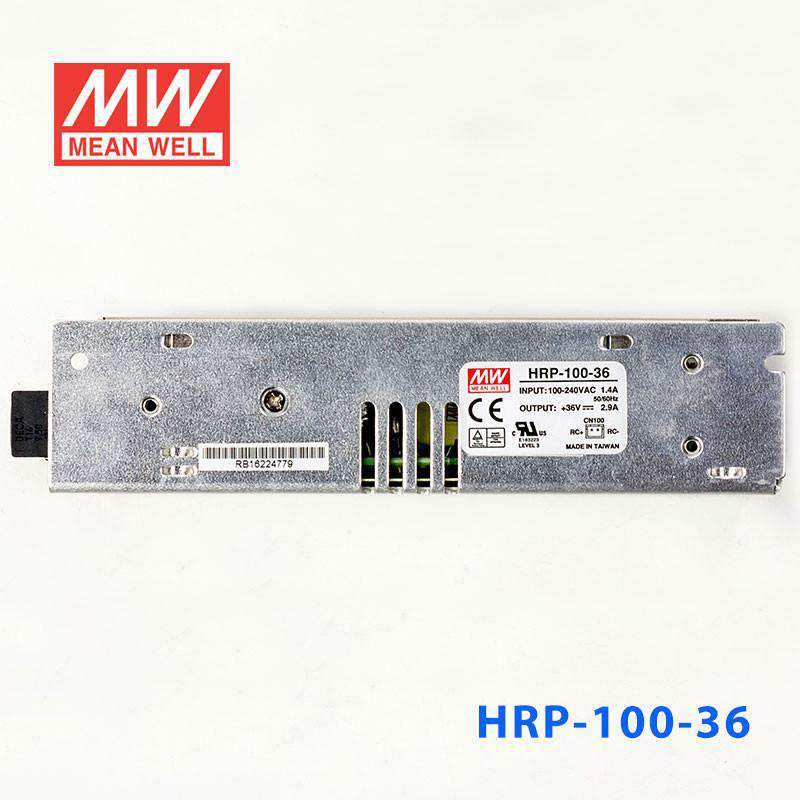

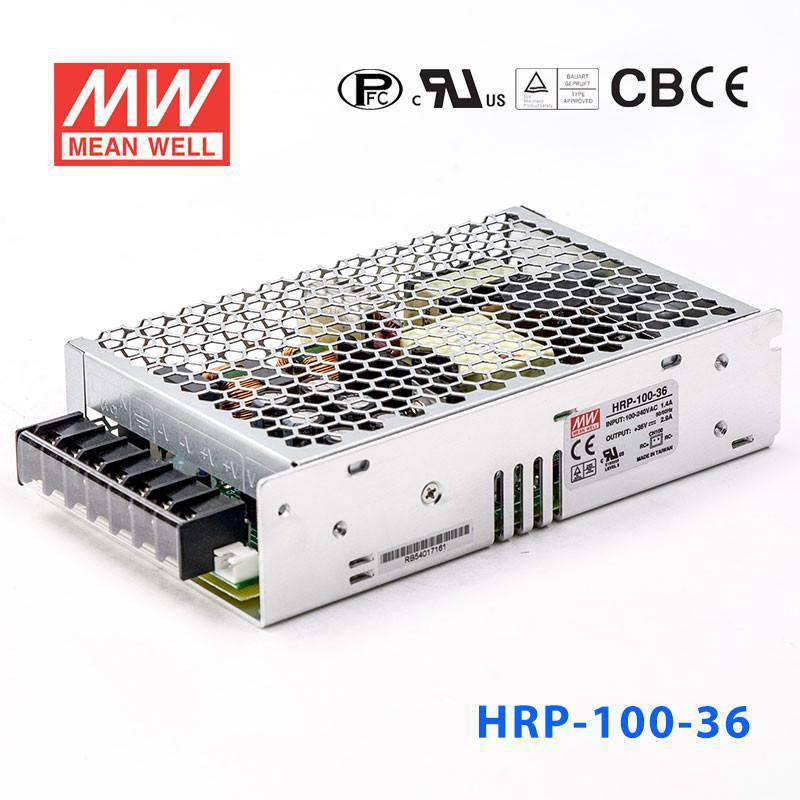

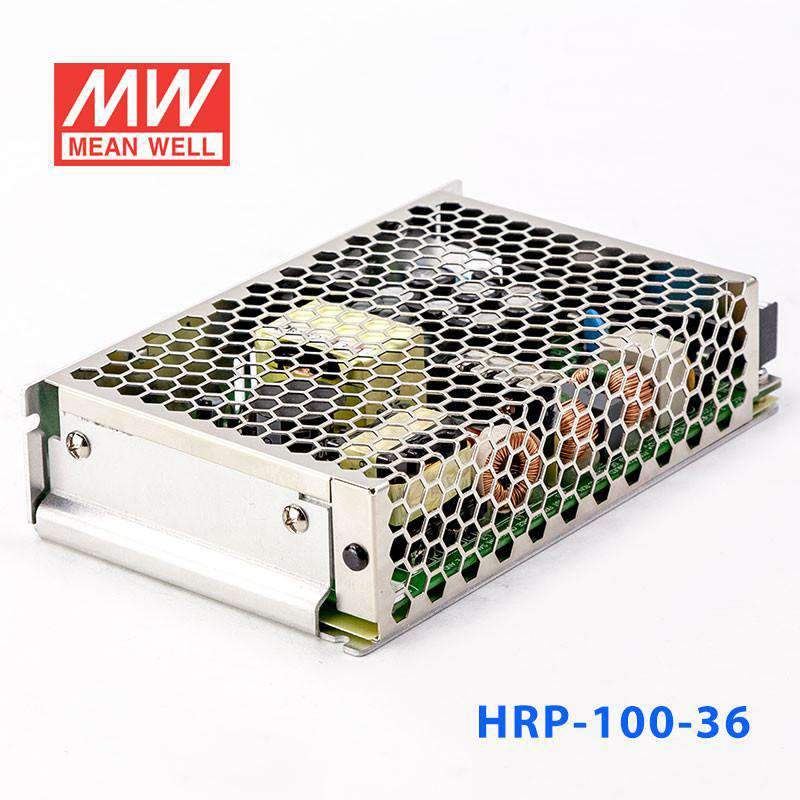

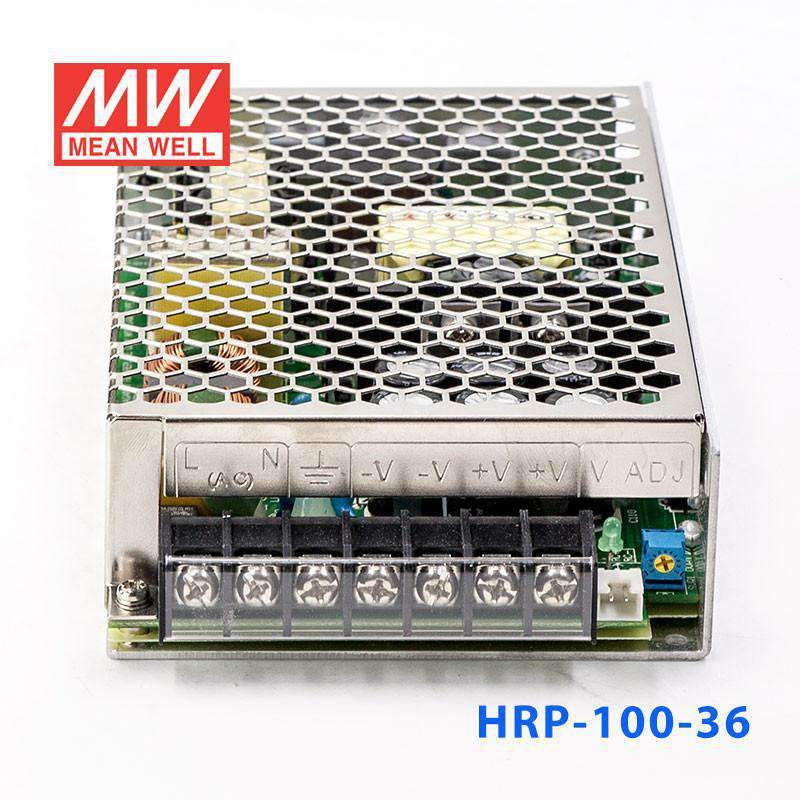

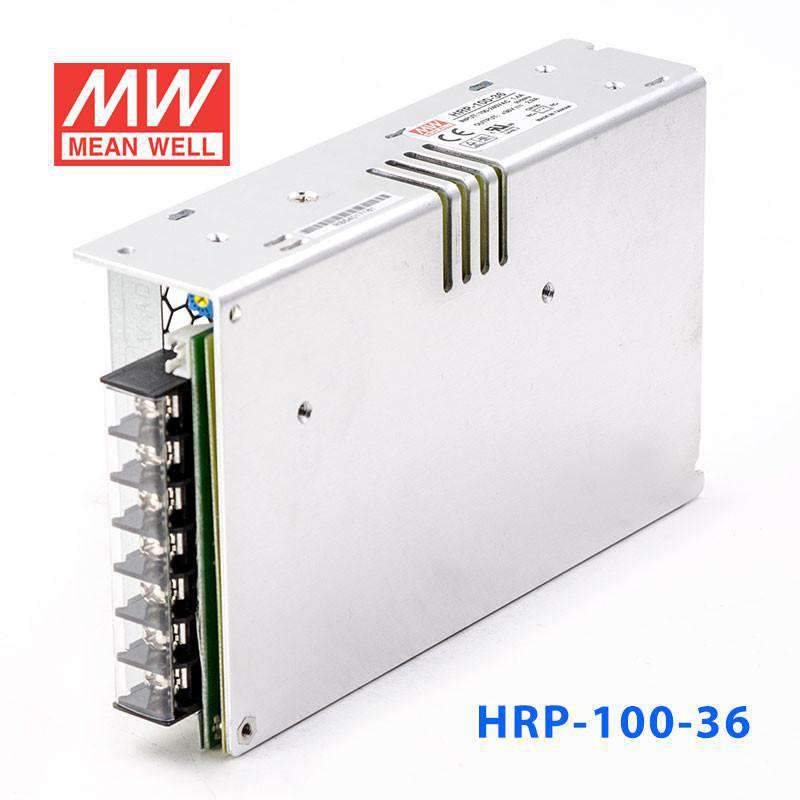

Mean Well HRP-100-36 Power Supply 104.4W 36V
The HRP-100 is a 100W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating104.4 Watt
-
Output Voltage36 Volt
-
Rated Current2.9 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.23 lb
::specification::
Frequently Asked Questions
Can I use the HRP-100-36 for a 36V industrial control device or actuator?
It is a constant-voltage 36V power supply rated for 2.9A and 104.4W, so it fits equipment that specifically requires a 36V DC source within those limits. It is better suited to fixed 36V loads than to applications that need a different output voltage.
Is the HRP-100-36 suitable for embedded 36V electronics in a cabinet or test fixture?
Yes, if the embedded system needs 36V DC and stays within 2.9A and 104.4W. Its 159.0 × 97.0 × 38.0 mm size and constant-voltage output make it appropriate for enclosed equipment where a regulated 36V supply is required.
Can this power supply run a 36V automation subsystem from standard AC mains?
It accepts 85-264VAC input and provides 36V DC output at up to 2.9A. That makes it appropriate for automation equipment that must operate from a wide AC input range while using a 36V constant-voltage supply.
Is the HRP-100-36 a good fit for a moderate-power 36V DC load instead of a higher-current system?
Yes. This model is intended for 36V applications up to 104.4W and 2.9A, so it fits moderate-power loads better than systems that need substantially more current at 36V.
What is the difference between the HRP-100 voltage options in this series?
Within the HRP-100 family, the listed models are 3.3V at 20A and 66W, 5V at 17A and 85W, 7.5V at 13.5A and 101.3W, 12V at 8.5A and 102W, 15V at 7A and 105W, 24V at 4.5A and 108W, 36V at 2.9A and 104.4W, and 48V at 2.2A and 105.6W. The HRP-100-36 is the 36V version in that group.
Can the HRP-100-36 be used in hot or cold industrial environments?
Its specified operating temperature range is -40°C to +60°C, so it is designed for a wide range of indoor industrial conditions. No IP rating is provided in the listed specs, so outdoor or washdown suitability cannot be confirmed from this data alone.
