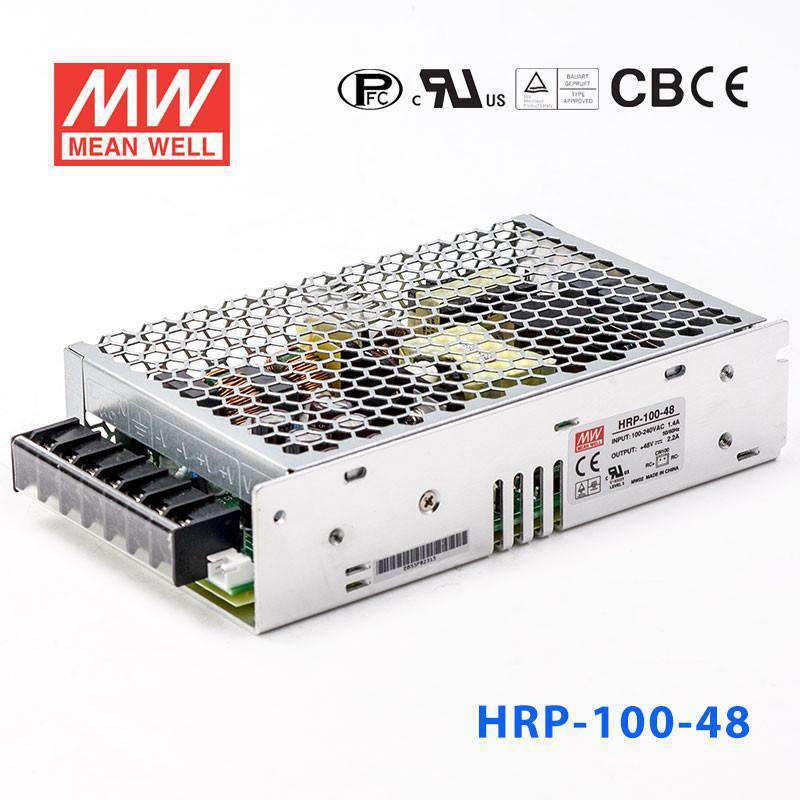

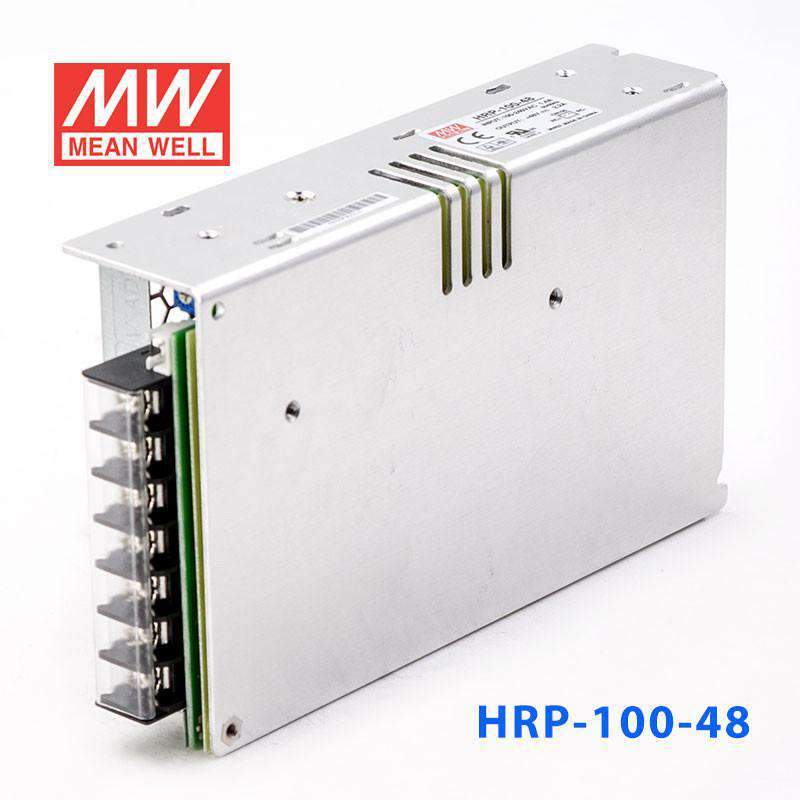

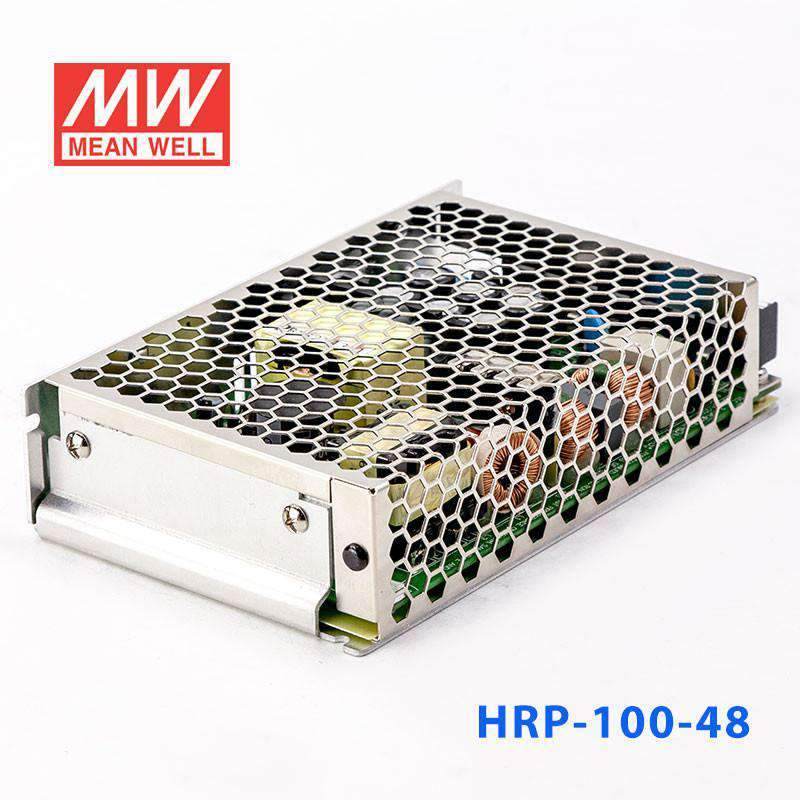

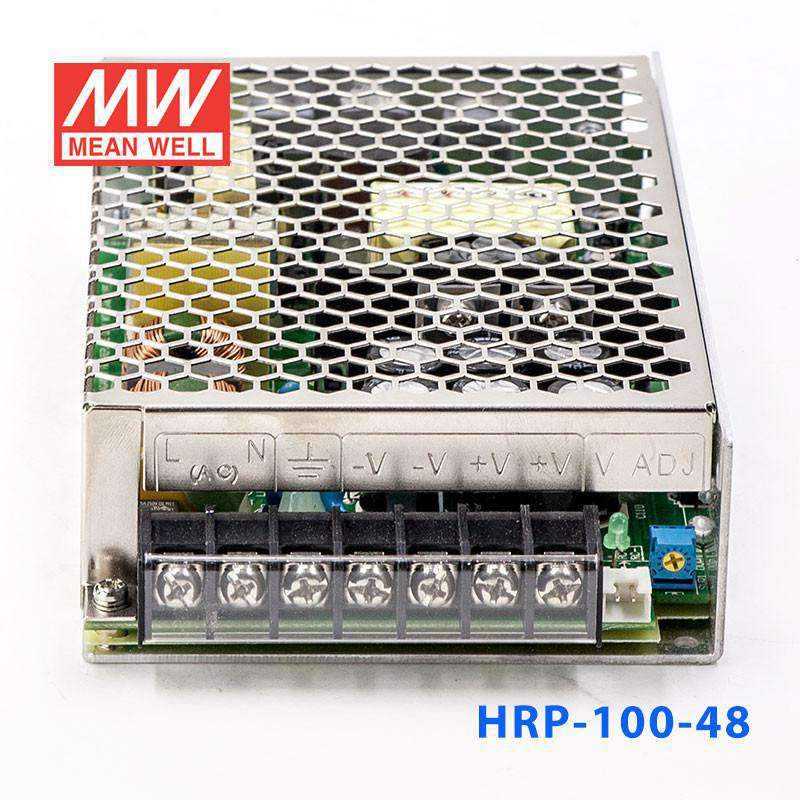

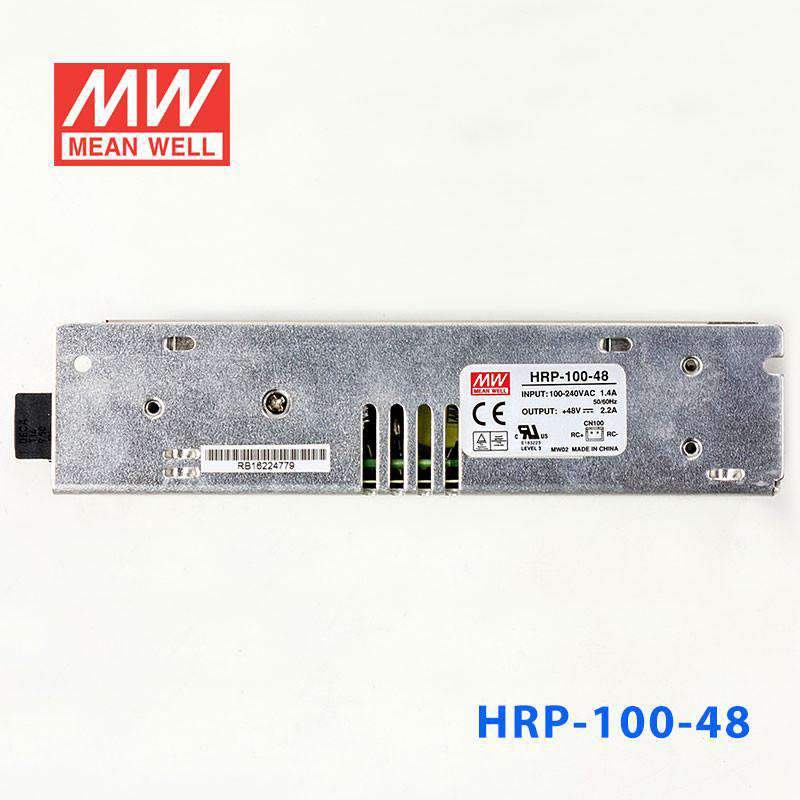

Mean Well HRP-100-48 Power Supply 105.6W 48V
The HRP-100 is a 100W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating105.6 Watt
-
Output Voltage48 Volt
-
Rated Current2.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.23 lb
::specification::
Frequently Asked Questions
Can I use the HRP-100-48 for a 48V industrial control or communications load?
Yes, if the equipment requires a constant 48V DC source and draws no more than 2.2A or 105.6W. It is intended for 48V systems, so voltage matching is the key requirement.
Is the HRP-100-48 appropriate for a compact 48V embedded system?
It can be a fit for embedded 48V electronics that stay within 2.2A output current and 105.6W total power. The 159.0 × 97.0 × 38.0 mm form factor is also suitable where a compact enclosed power supply is needed.
Can this model power a 48V automation device from a wide AC input range?
Yes. The unit accepts 85-264VAC input and converts it to a constant 48V DC output, with up to 2.2A available on the output side.
Is the HRP-100-48 better for lower-current 48V loads than for high-current 48V equipment?
Yes. Its output is limited to 2.2A at 48V, so it is suited to lower-current 48V loads within 105.6W rather than heavier 48V systems that need more output current.
How does the HRP-100-48 compare with the other HRP-100 models?
The HRP-100 series includes 3.3V at 20A and 66W, 5V at 17A and 85W, 7.5V at 13.5A and 101.3W, 12V at 8.5A and 102W, 15V at 7A and 105W, 24V at 4.5A and 108W, 36V at 2.9A and 104.4W, and 48V at 2.2A and 105.6W. The HRP-100-48 is the highest-voltage listed version in the 100W family.
Can the HRP-100-48 be used outdoors or in harsh ambient temperatures?
The specified operating temperature range is -40°C to +60°C, which supports use across a broad temperature range. No IP rating is listed in the provided specs, so exposure to rain, dust, or washdown conditions should not be assumed.
