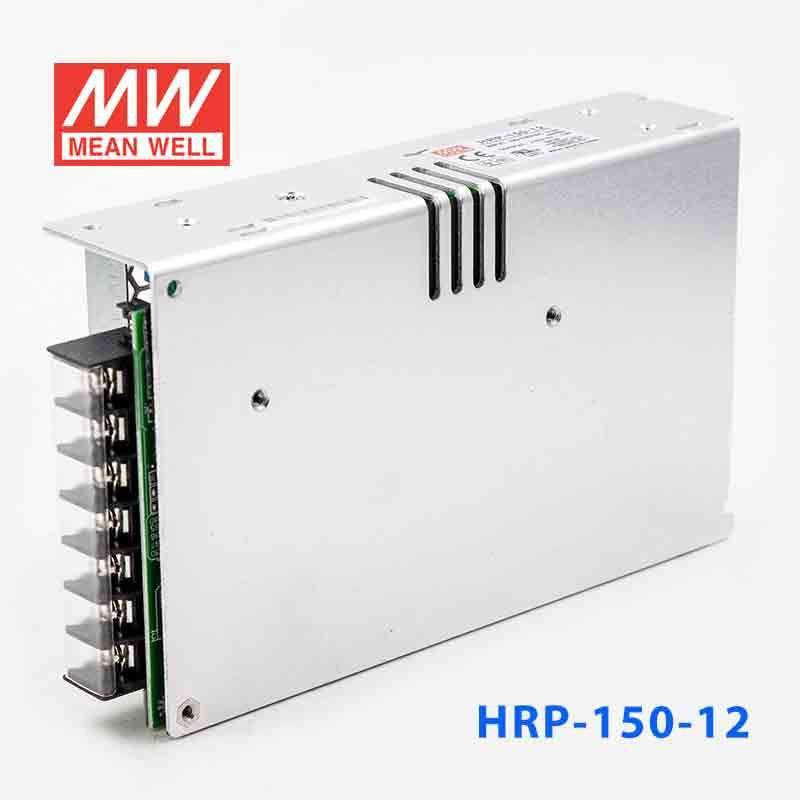

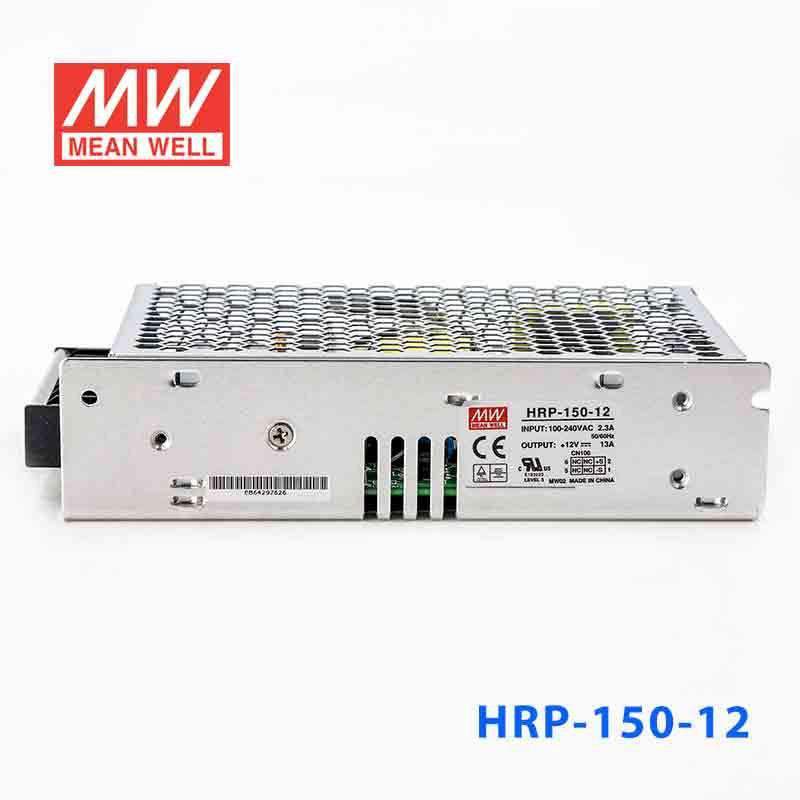

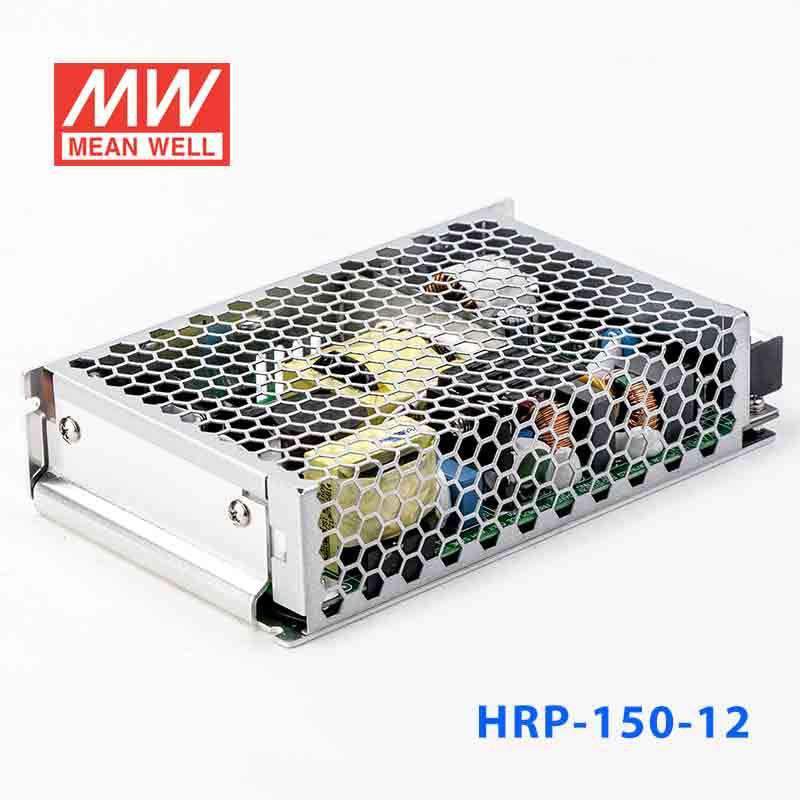

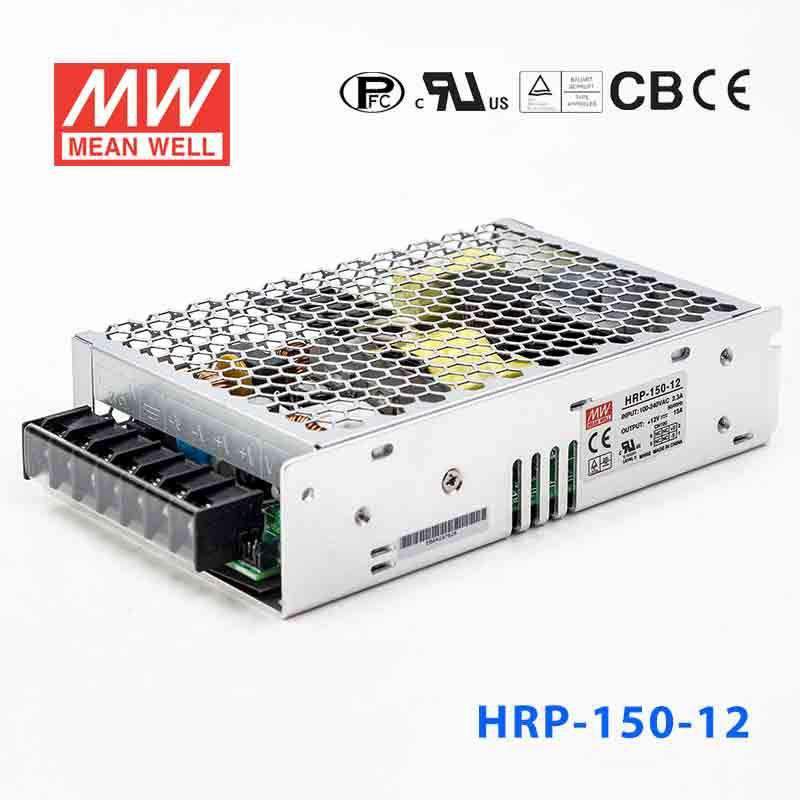

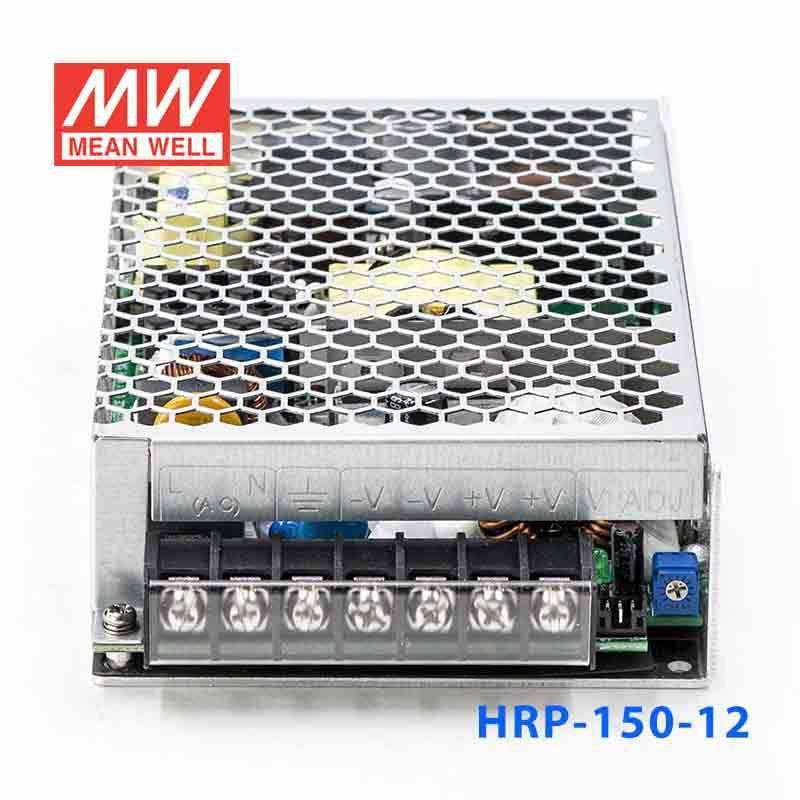

Mean Well HRP-150-12 Power Supply 156W 12V
The HRP-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating156 Watt
-
Output Voltage12 Volt
-
Rated Current13 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.34 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150-12 for a 12V industrial automation panel or controller?
Yes, if the equipment requires constant 12V DC and the load stays within 13A and 156W. It is suited to higher-power 12V control applications compared with lower-output 12V models.
Is the HRP-150-12 suitable for 12V embedded systems with multiple connected loads?
It can be, because it provides 12V constant-voltage output at up to 13A with 156W total power. That gives more headroom for embedded or control assemblies with several 12V loads sharing one supply.
Can this model power a 12V HMI, relay, or control subsystem from standard AC input?
Yes. It accepts 85-264VAC input and delivers 12V DC output, so it fits 12V automation subsystems that need operation from a wide AC mains range.
Would the HRP-150-12 fit a 12V bench, fixture, or industrial test application?
It is appropriate where the fixture or test setup needs a regulated 12V supply and the total demand does not exceed 13A or 156W. The constant-voltage design is intended for equipment built around a fixed 12V DC input.
How does the HRP-150-12 compare with other HRP-150 output versions?
The listed HRP-150 models are 3.3V at 30A and 99W, 5V at 26A and 130W, 7.5V at 20A and 150W, 12V at 13A and 156W, 15V at 10A and 150W, 24V at 6.5A and 156W, 36V at 4.3A and 154.8W, and 48V at 3.3A and 158.4W. The HRP-150-12 is the 12V, 13A version in that range.
Is the HRP-150-12 suitable for hot or cold indoor industrial environments?
Its operating temperature range is -40°C to +70°C, which is broader on the high end than the 100W models listed here. No IP rating is included in the provided specs, so outdoor exposure or washdown use cannot be confirmed from this information alone.
