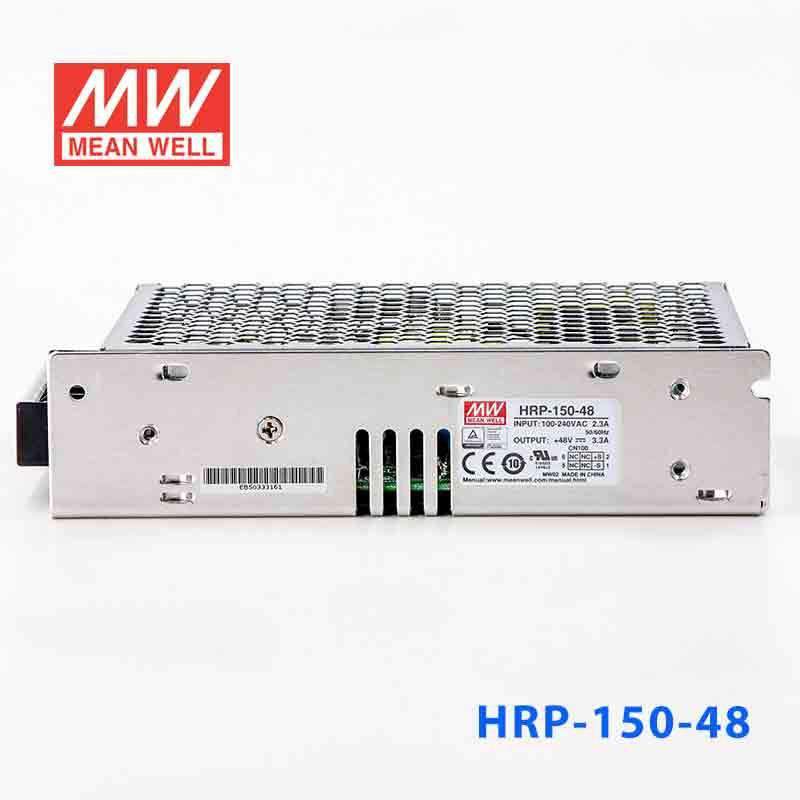

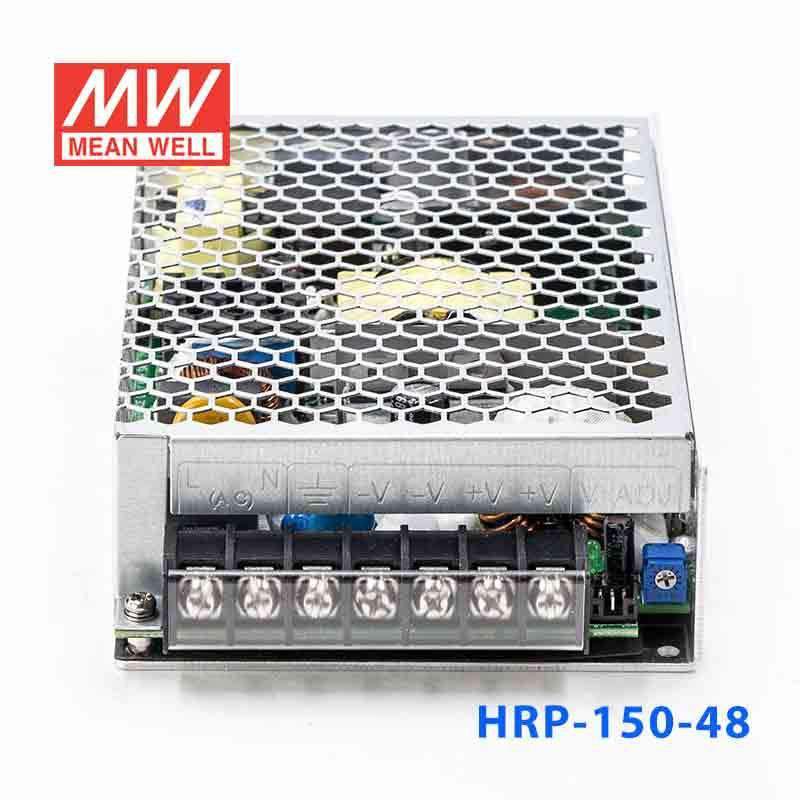

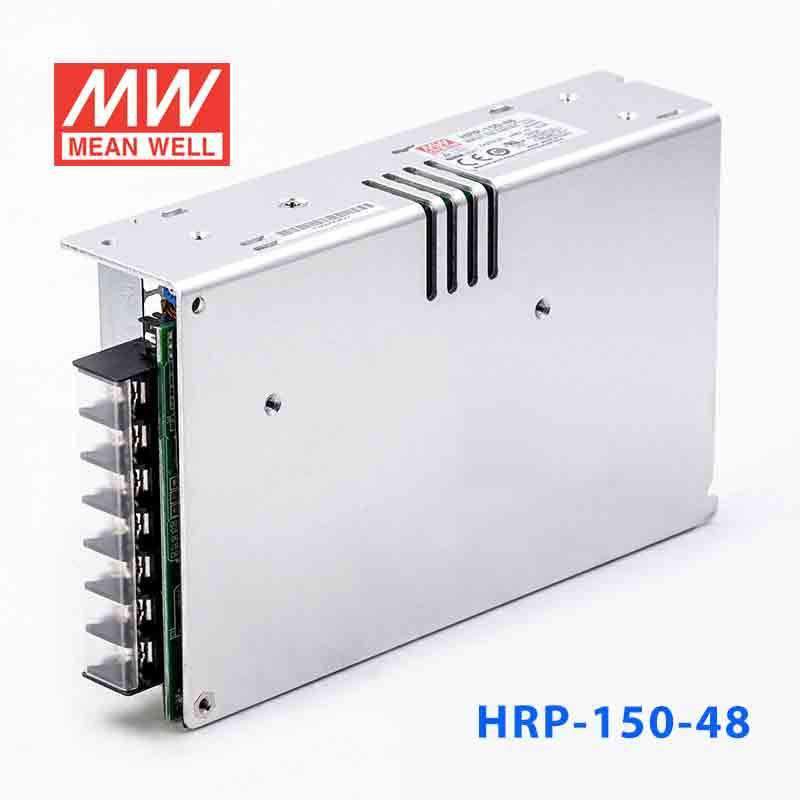

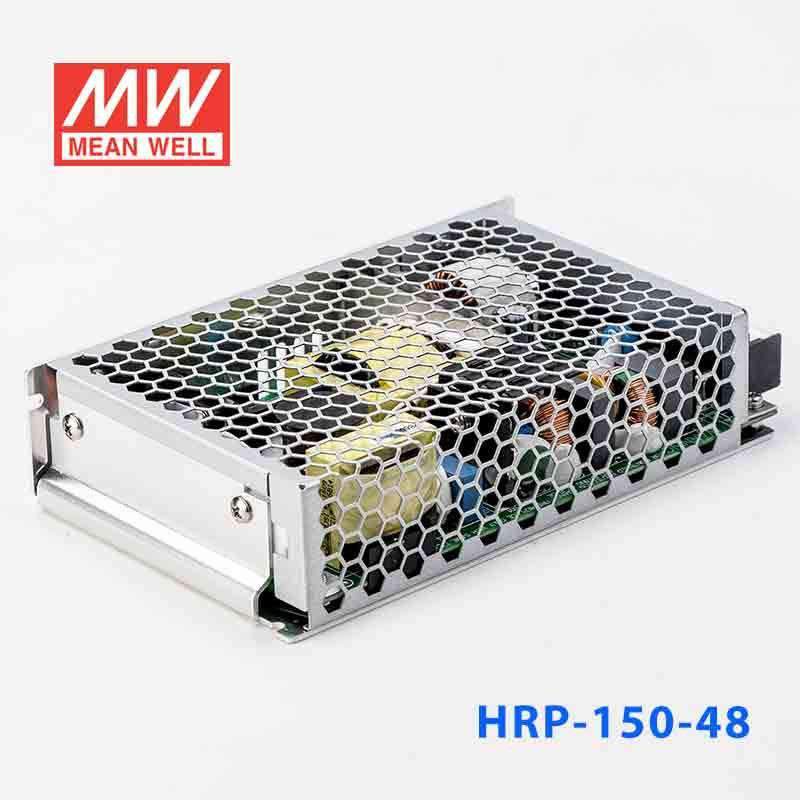

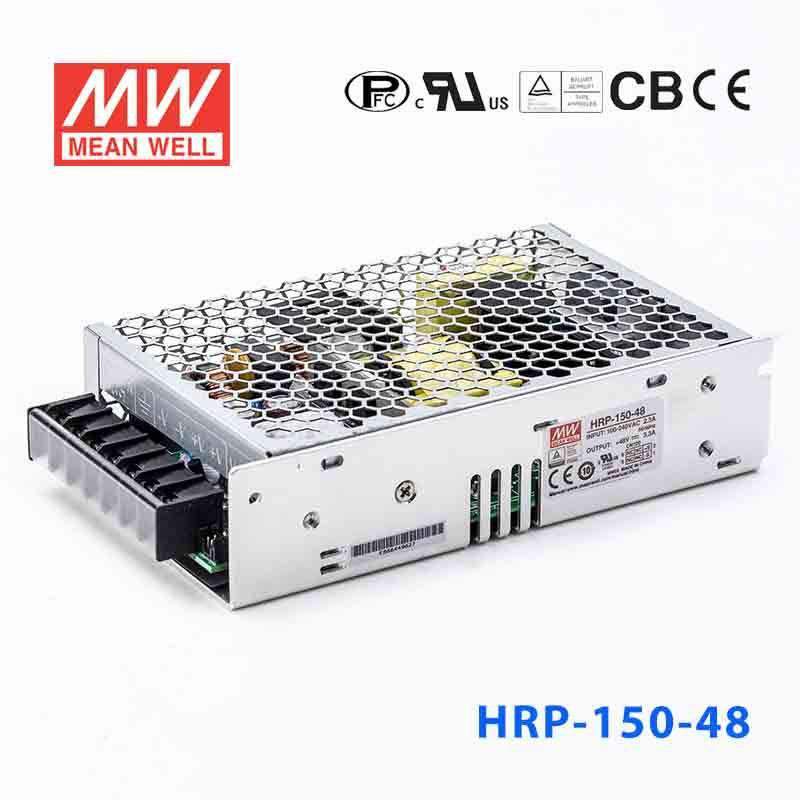

Mean Well HRP-150-48 Power Supply 158.4W 48V
The HRP-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating158.4 Watt
-
Output Voltage48 Volt
-
Rated Current3.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.34 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150-48 for 48V industrial control or communications equipment?
Yes, this is a constant voltage 48V power supply rated for 158.4W and 3.3A. It is suited to 48V industrial, control, or communications equipment that operates within that output range.
Is the HRP-150-48 suitable for 48V automation or network devices in a control cabinet?
It can be used for 48V DC equipment in enclosed industrial systems where the total load does not exceed 3.3A or 158.4W. The universal 85-264VAC input also helps when the AC source varies by region or facility.
Can this model power a 48V embedded or telecom-style DC bus?
It is appropriate for regulated 48V DC applications that need up to 3.3A. That makes it a practical option for embedded or communications hardware designed around a 48V constant voltage input.
Is HRP-150-48 a good choice when higher voltage and lower current are needed?
Yes, within the HRP-150 range this version provides the highest listed output voltage at 48V with a 3.3A rating. It is intended for loads that need 48V constant voltage rather than higher-current low-voltage rails.
Can the HRP-150-48 be installed in outdoor environments?
The operating temperature range is -40C to +70C, so the temperature specification is broad. However, no IP rating is listed, so it is better suited to protected indoor enclosures or sealed systems rather than direct outdoor exposure.
How does HRP-150-48 compare to the other HRP-150 outputs?
The HRP-150 family offers 3.3V at 99W and 30A, 5V at 130W and 26A, 7.5V at 150W and 20A, 12V at 156W and 13A, 15V at 150W and 10A, 24V at 156W and 6.5A, 36V at 154.8W and 4.3A, and 48V at 158.4W and 3.3A. The 48V model has the highest output voltage and the lowest current rating in that group.
