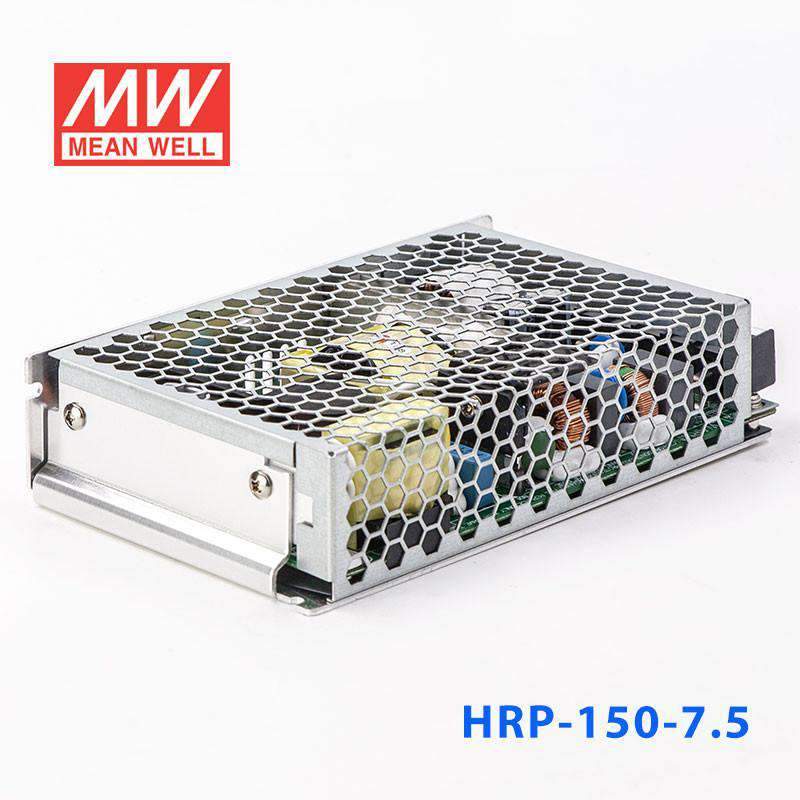

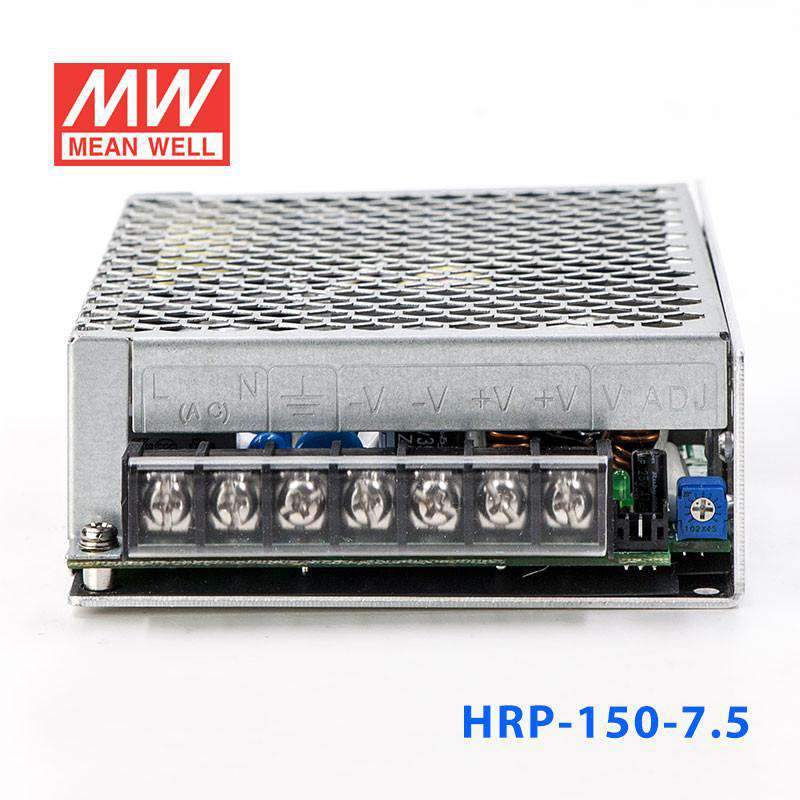

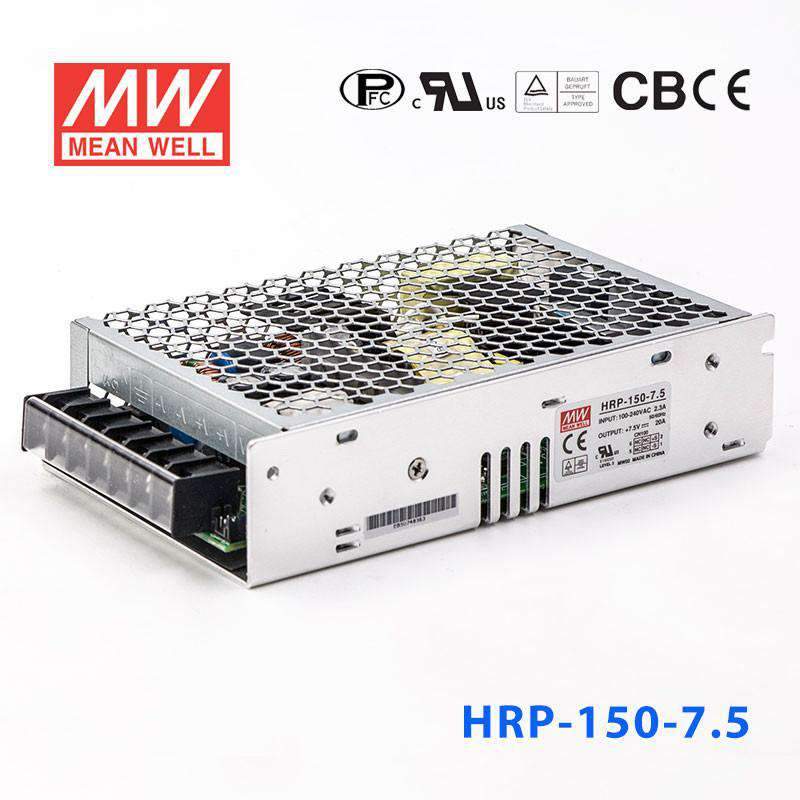

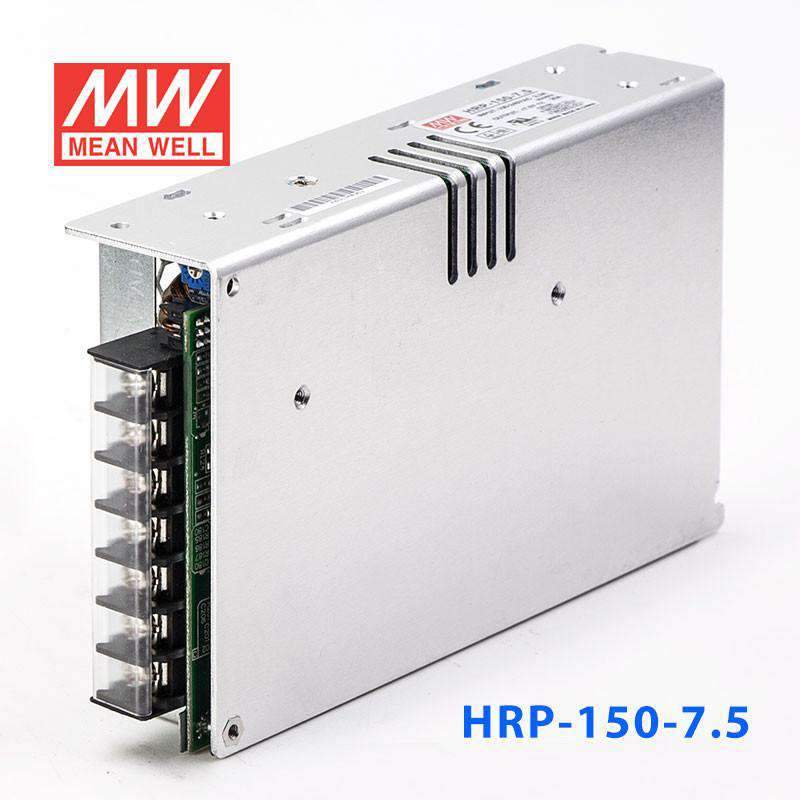

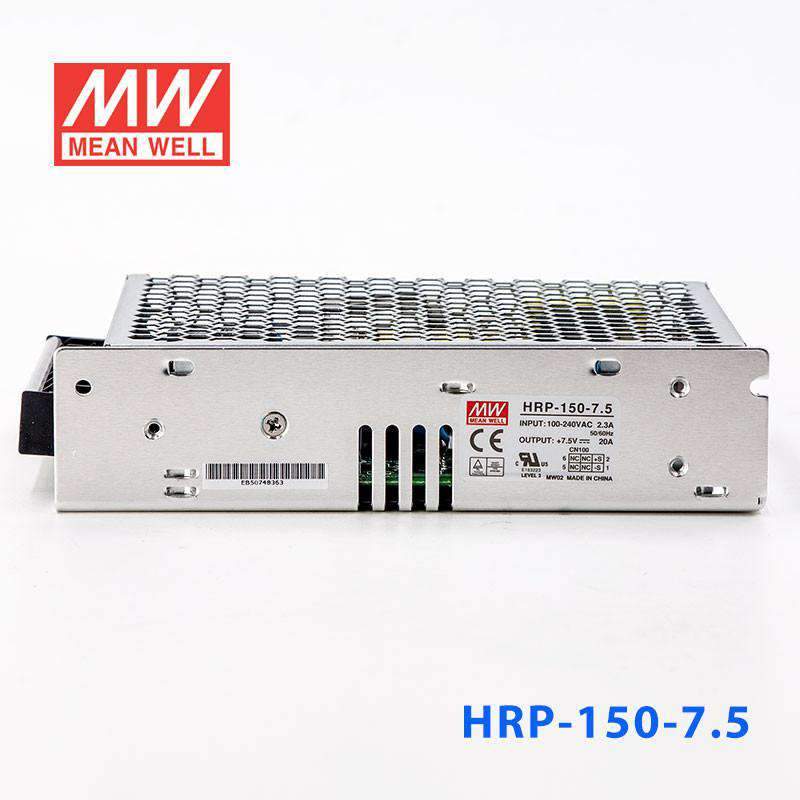

Mean Well HRP-150-7.5 Power Supply 150W 7.5V
The HRP-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating150 Watt
-
Output Voltage7.5 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.34 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150-7.5 for a 7.5V industrial or embedded DC load?
Yes, this is a constant-voltage 7.5V power supply rated for 150W and 20A. It fits equipment that specifically requires 7.5V DC and needs more current capacity than a lower-power 7.5V model provides.
Is this power supply suitable for a 7.5V automation subsystem with multiple DC loads?
It can be used where the combined load requires a regulated 7.5V output and remains within 20A and 150W. The 85-264VAC input range also supports use in installations with different global AC input ranges.
Can the HRP-150-7.5 support legacy 7.5V electronics that draw higher current?
It is intended for constant-voltage 7.5V applications and provides up to 20A. That makes it more suitable for higher-current 7.5V equipment than smaller 7.5V supplies in the same family.
Is the HRP-150-7.5 meant for outdoor use or harsh temperature conditions?
The operating temperature range is -40°C to +70°C, so the temperature spec covers demanding indoor industrial conditions. No IP rating is provided in the listed specs, so the product data does not state outdoor weather exposure or water-ingress protection.
What is the difference between the HRP-150-7.5 and other HRP-150 models?
The HRP-150 family shown here includes HRP-150-3.3 at 99W, 3.3V, 30A; HRP-150-5 at 130W, 5V, 26A; HRP-150-7.5 at 150W, 7.5V, 20A; HRP-150-12 at 156W, 12V, 13A; HRP-150-15 at 150W, 15V, 10A; HRP-150-24 at 156W, 24V, 6.5A; HRP-150-36 at 154.8W, 36V, 4.3A; and HRP-150-48 at 158.4W, 48V, 3.3A. This model sits at the 7.5V point in that range and is rated for 20A and 150W.
