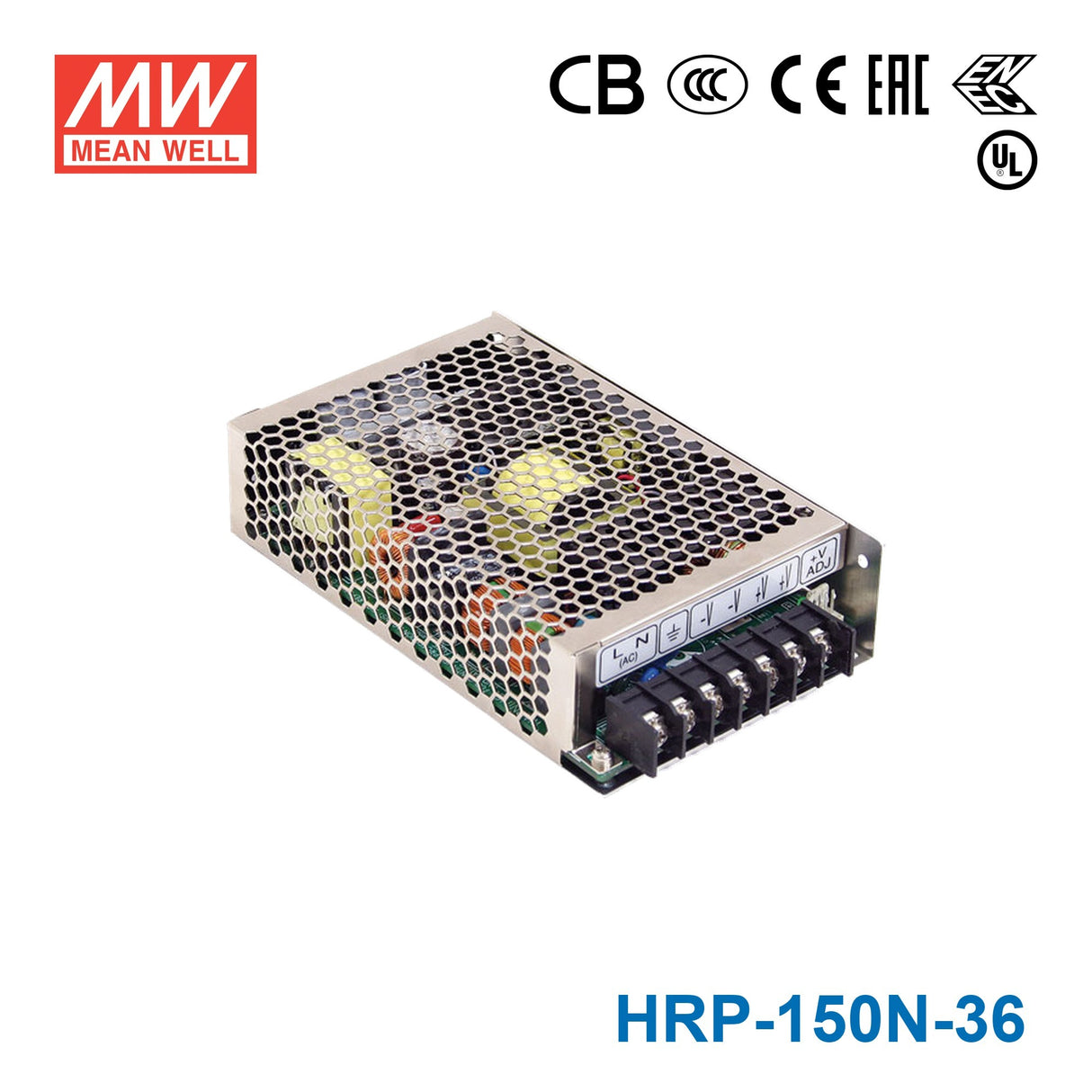

Mean Well HRP-150N-36 High Peak-Power Power Supply 150W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-150N-36 High Peak-Power Power Supply 150W 36V
The HRP-150N is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating150 Watt
-
Output Voltage36 Volt
-
Rated Current4.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150N-36 for a 36V industrial control or embedded system?
Yes, this model provides a constant 36V output rated for 150W and 4.3A. It is suitable for 36V industrial, embedded, or automation equipment that stays within that current and power range.
Is the HRP-150N-36 a good fit for 36V motion-control or automation electronics?
It can be used where the equipment requires a regulated 36V supply and the load remains within 4.3A and 150W. The constant-voltage output is intended for systems designed around a fixed 36V DC bus.
Can this power supply support 36V industrial communication or monitoring equipment?
It can be a fit for 36V DC hardware in monitoring, control, or embedded applications when the total demand does not exceed 4.3A. Its 85-264VAC input range also makes it usable across a wide AC input range.
Will the HRP-150N-36 handle harsh indoor temperatures, and is it outdoor-rated?
The listed operating temperature range is -40°C to +70°C, which supports broad indoor environmental conditions. No IP rating appears in the provided specs, so the product data does not define outdoor or water-exposed use.
How does the HRP-150N-36 compare with the other HRP-150N output options?
The HRP-150N models listed here are HRP-150N-12 at 150W, 12V, 13A; HRP-150N-24 at 150W, 24V, 6.5A; HRP-150N-36 at 150W, 36V, 4.3A; and HRP-150N-48 at 150W, 48V, 3.3A. They share the same 150W family rating, while output voltage rises and rated current falls across the range.
