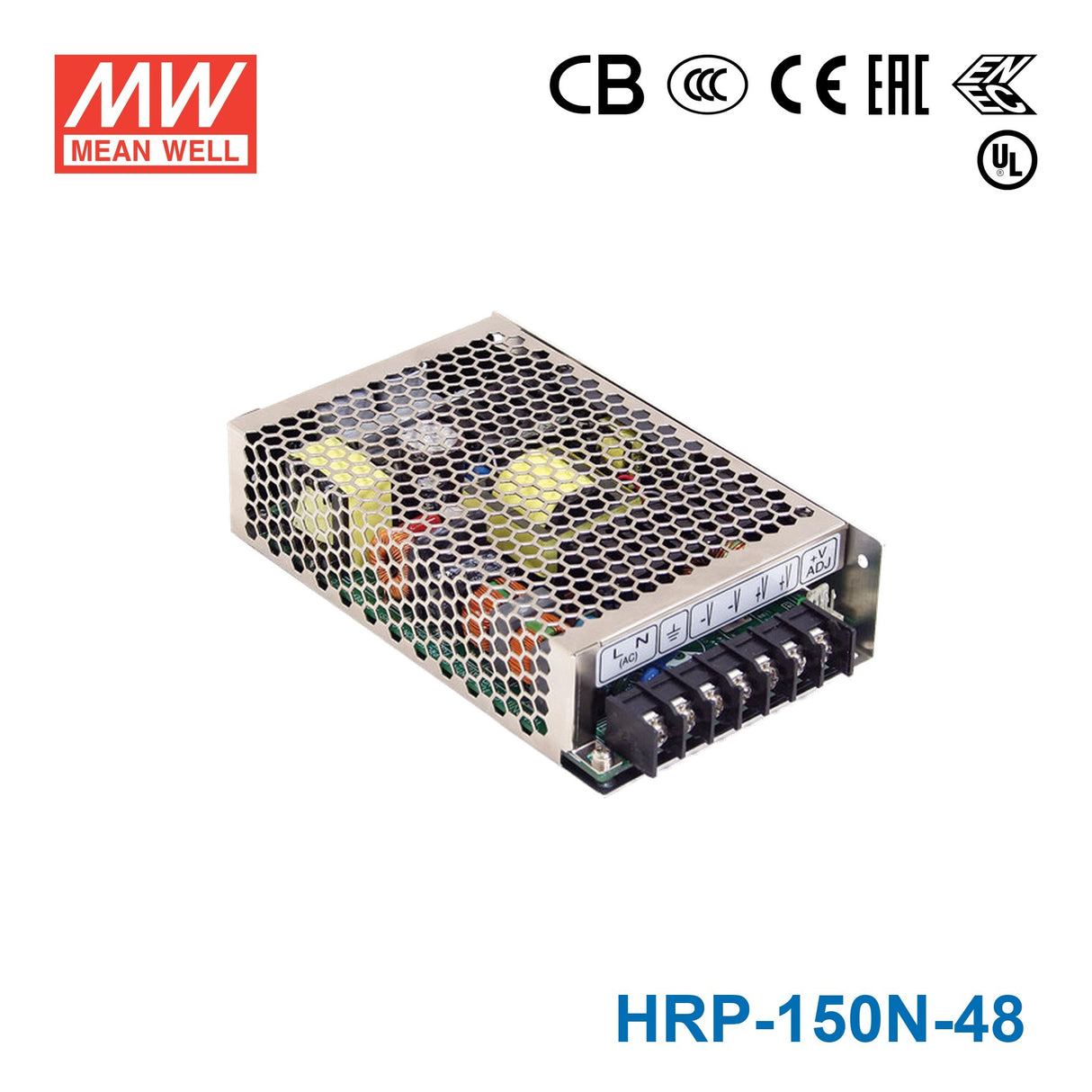

Mean Well HRP-150N-48 High Peak-Power Power Supply 150W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRP-150N-48 High Peak-Power Power Supply 150W 48V
The HRP-150N is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating150 Watt
-
Output Voltage48 Volt
-
Rated Current3.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.19 lb
::specification::
Frequently Asked Questions
Can I use the HRP-150N-48 for a 48V industrial control cabinet?
Yes, it is a constant-voltage 48V supply rated for 150W and 3.3A, which fits 48V control and automation loads that stay within that output. The wide 85-264VAC input also suits facilities that do not always have the same AC line standard. Its operating range of -40°C to +70°C is useful for demanding panel environments.
Is the HRP-150N-48 suitable for 48V telecom or network equipment?
It can be a fit for 48V telecom or network hardware that requires a constant 48V source and draws no more than 3.3A or 150W. Buyers should match the equipment's required output voltage exactly, because this model is fixed at 48V. The high efficiency of up to 90% can also help reduce heat in compact equipment spaces.
Can this power supply run a 48V embedded computer or edge device?
It can work for embedded or edge systems designed for a 48V DC input, as long as the total load remains within 150W and 3.3A. That makes it more appropriate for moderate-power 48V electronics than for larger motion or compute loads. The low no-load power consumption of less than 0.5W to 0.75W may also matter in systems with standby time.
Which 150W HRP models are the closest alternatives to the HRP-150N-48?
Within the 150W class, the standard HRP-150 series includes 3.3V 99W 30A, 5V 130W 26A, 7.5V 150W 20A, 12V 156W 13A, 15V 150W 10A, 24V 156W 6.5A, 36V 154.8W 4.3A, and 48V 158.4W 3.3A. The HRP-150N series includes 12V 150W 13A, 24V 150W 6.5A, 36V 150W 4.3A, and this 48V 150W 3.3A model. The HRP-150N3 series includes 12V 150W 13A, 24V 150W 6.5A, 36V 150W 4.3A, and 48V 150W 3.3A.
Is the HRP-150N-48 meant for indoor or outdoor use?
The provided specs show an operating temperature range of -40°C to +70°C, so the unit is built for a wide temperature span. However, no IP rating is listed in the provided data, so indoor or outdoor suitability should not be assumed from temperature range alone. For exposed or wet locations, the enclosure rating of the final system still matters.
