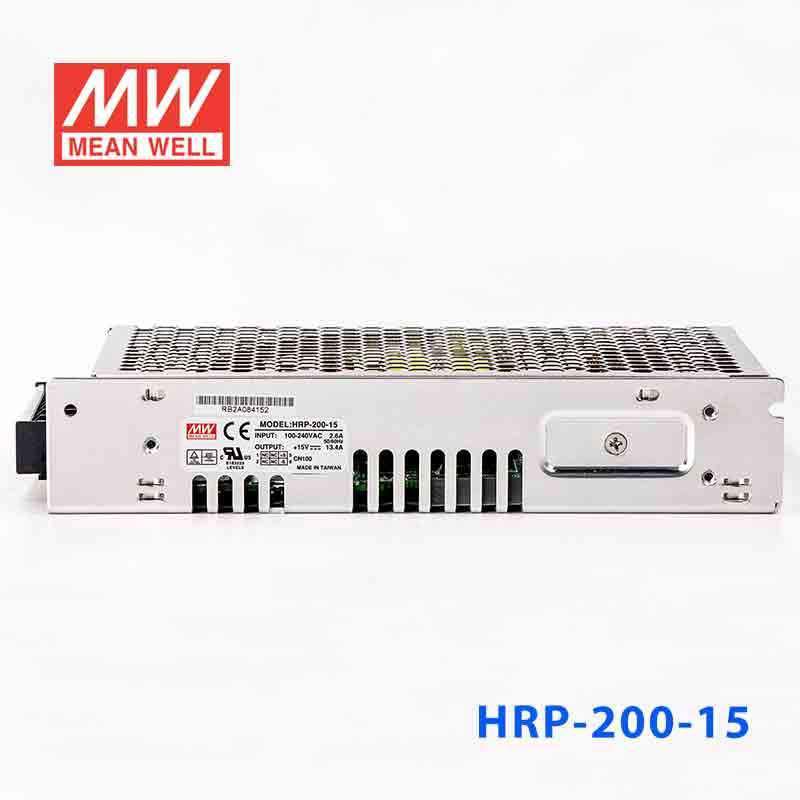

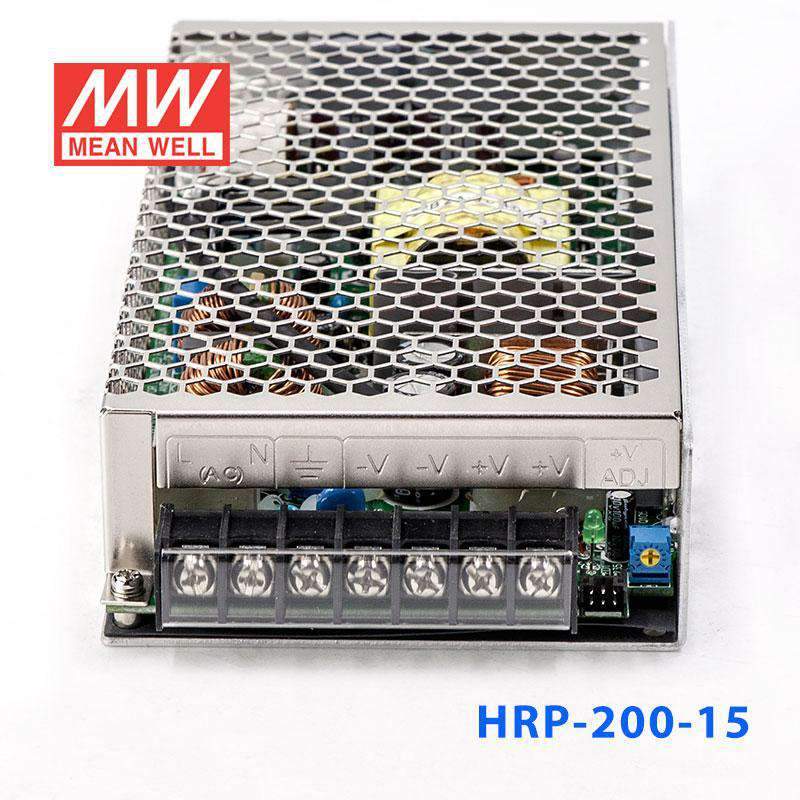

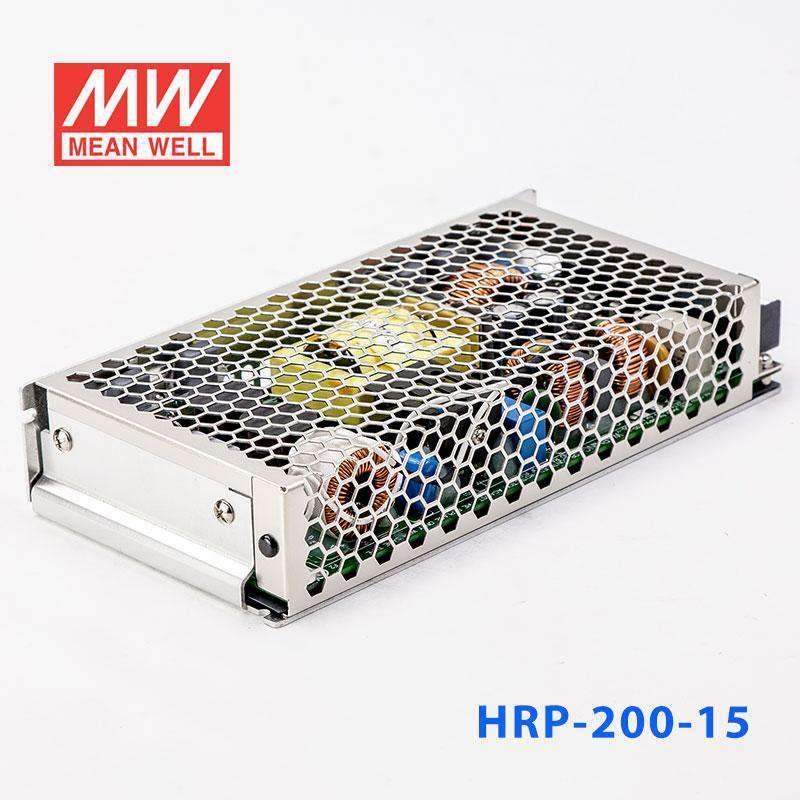

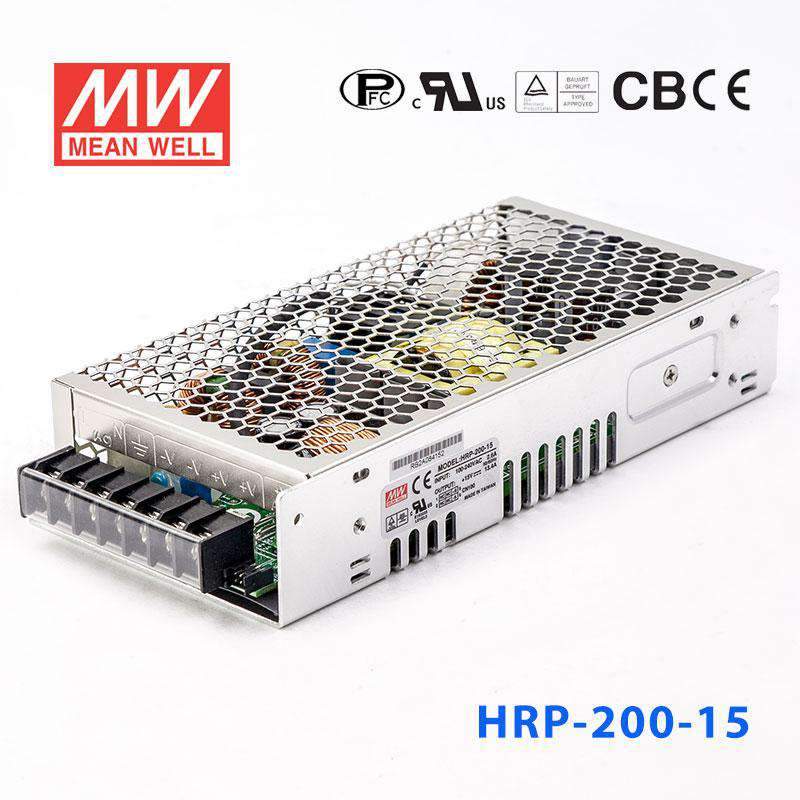

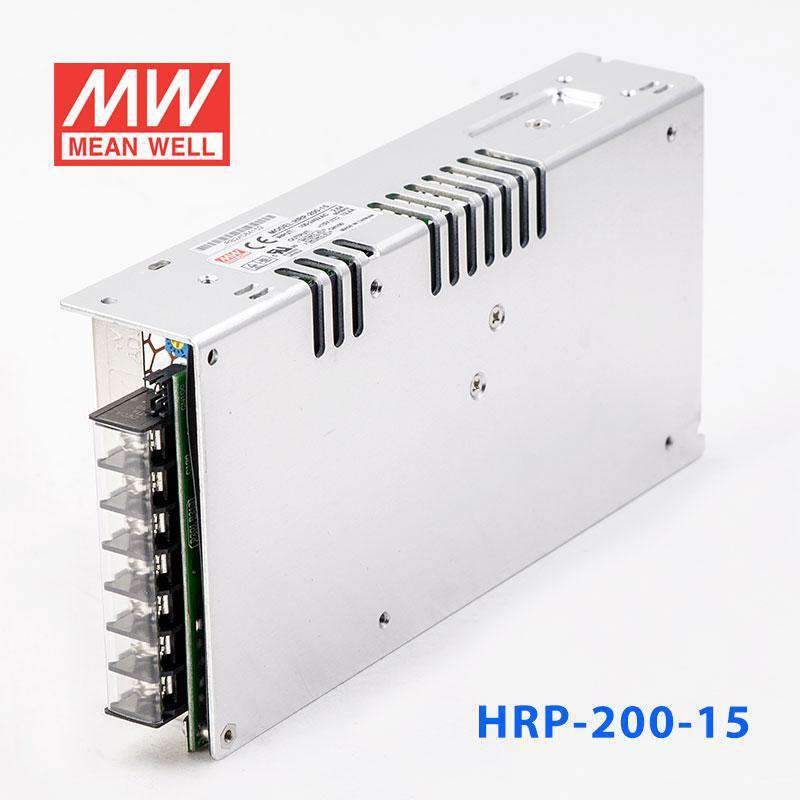

Mean Well HRP-200-15 Power Supply 201W 15V
The HRP-200 is a 200W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF UL62368-1,TUV EN62368-1, AS/NZS62368.1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating201 Watt
-
Output Voltage15 Volt
-
Rated Current13.4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HRP-200-15 for 15V industrial instrumentation?
Yes, if the instrumentation requires a constant 15V source and the total load stays within 201W and 13.4A. That makes it relevant for industrial electronics built around a 15V DC rail rather than the more common 12V or 24V rails. The 85-264VAC input also supports broad AC input conditions.
Is the HRP-200-15 a good fit for test benches or embedded lab equipment that runs on 15V?
It can be a fit for embedded test rigs or bench equipment designed for 15V DC input up to 13.4A. Because it is a constant-voltage unit, the load should be specified for 15V operation. The high efficiency of up to 90% can help control heat in enclosed equipment.
Can this power supply support 15V automation or analog control electronics?
Yes, for 15V automation, analog, or measurement electronics that need a fixed 15V output and draw no more than 201W total. Its 13.4A output capacity gives more current headroom than smaller 15V models in the series. Buyers should still size it against the real steady-state and peak load of the equipment.
What are the other HRP-200 voltage options besides the HRP-200-15?
The HRP-200 family includes 3.3V 132W 40A, 5V 175W 35A, 7.5V 200.3W 26.7A, 12V 200.4W 16.7A, 24V 201.6W 8.4A, 36V 205.2W 5.7A, and 48V 206.4W 4.3A, along with this 15V 201W 13.4A model. Those versions differ mainly by output voltage and current. The right choice depends on the DC rail your equipment is designed to use.
Is the HRP-200-15 suitable for outdoor cabinets or harsh environments?
The operating temperature range is -40°C to +70°C, so the electrical design supports a wide thermal range. However, the provided specs do not list an IP rating, so exposed outdoor use should not be assumed from temperature range alone. For harsher environments, the surrounding enclosure protection still matters.
