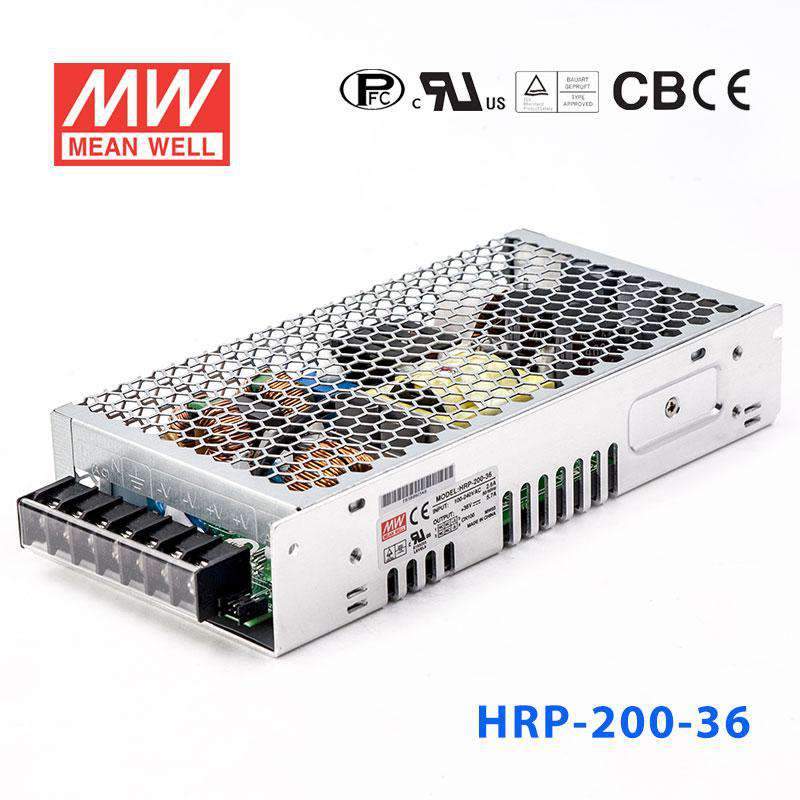

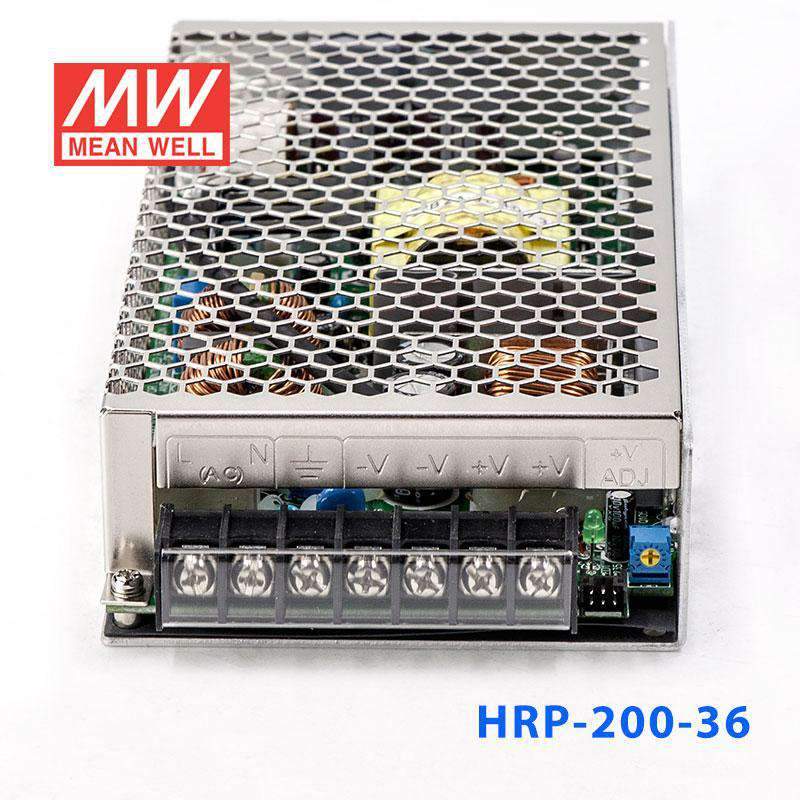

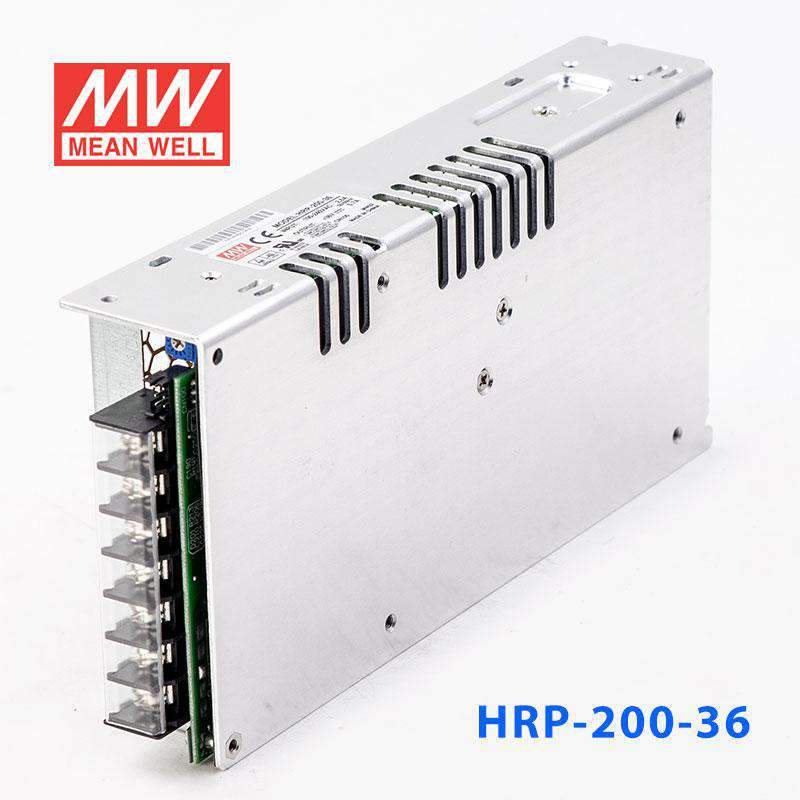

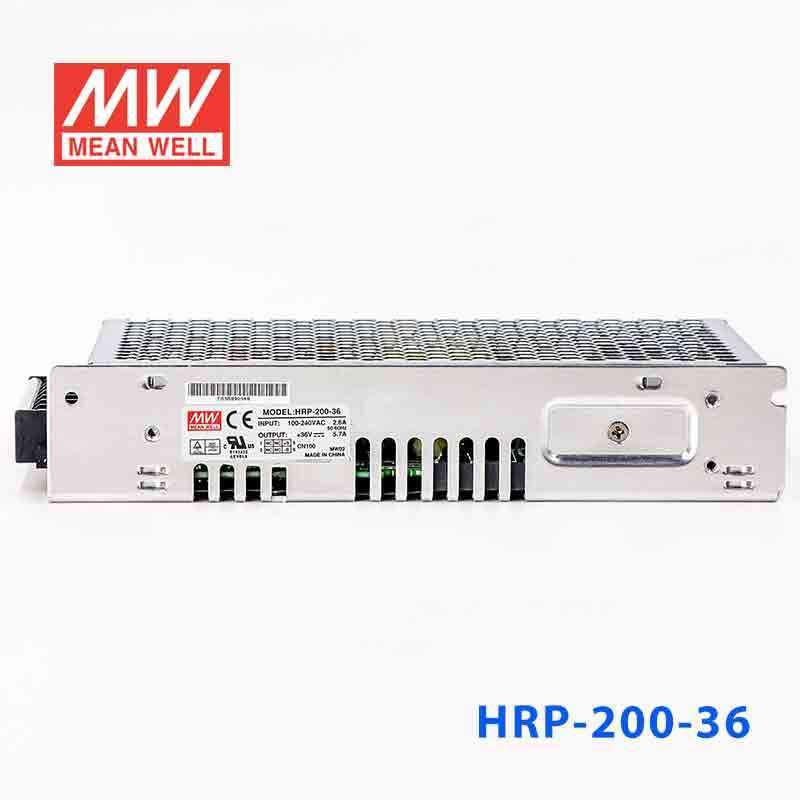

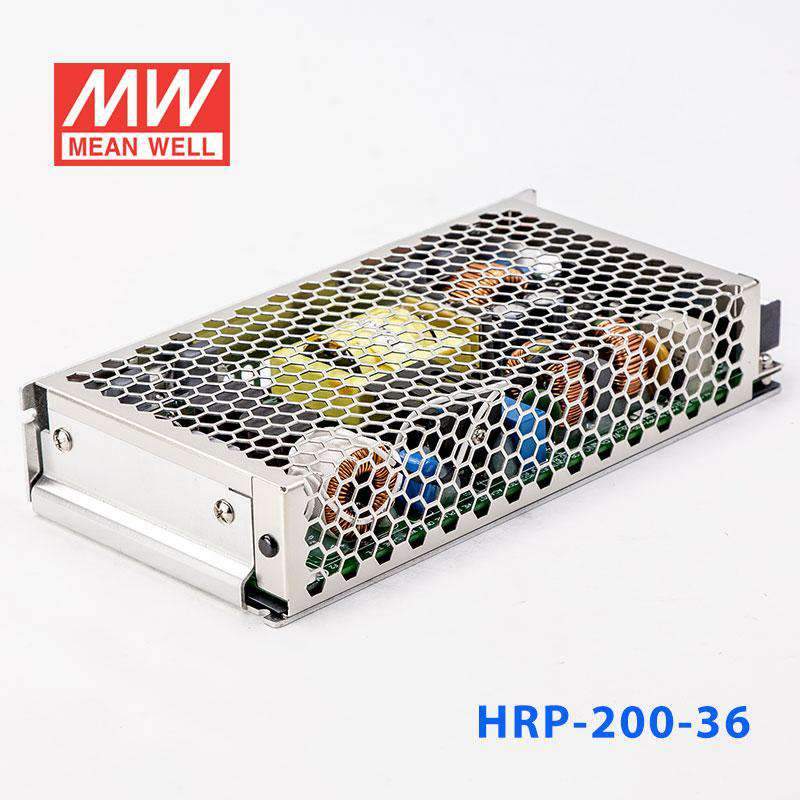

Mean Well HRP-200-36 Power Supply 205.2W 36V
The HRP-200 is a 200W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF UL62368-1,TUV EN62368-1, AS/NZS62368.1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating205.2 Watt
-
Output Voltage36 Volt
-
Rated Current5.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HRP-200-36 for a 36V industrial control panel?
Yes, this model is a constant voltage 36V power supply rated for 5.7A and 205.2W. It fits 36V industrial control or automation loads that need 36V DC and stay within that current and power limit.
Is the HRP-200-36 suitable for 36V embedded or test-bench equipment?
It can be used for embedded or lab equipment that requires a steady 36V constant voltage input. The available output is 5.7A with total power up to 205.2W, so the connected 36V load needs to stay within those ratings.
Can this 36V power supply run 36V automation devices such as actuators, controllers, or DC loads?
It is intended for 36V DC applications where the load expects constant voltage rather than constant current. For automation hardware, the key match is 36V output with up to 5.7A and 205.2W available from the supply.
How does the HRP-200-36 compare with other HRP-200 models?
Within the HRP-200 family, the listed outputs are 3.3V at 40A and 132W, 5V at 35A and 175W, 7.5V at 26.7A and 200.3W, 12V at 16.7A and 200.4W, 15V at 13.4A and 201W, 24V at 8.4A and 201.6W, 36V at 5.7A and 205.2W, and 48V at 4.3A and 206.4W. The HRP-200-36 keeps the same 199.0 × 98.0 × 38.0 mm form factor as the other 200 series units shown here, but its output is specifically 36V constant voltage.
Can the HRP-200-36 be used in hot, cold, or exposed environments?
The operating temperature range is -40°C to +70°C, so the temperature spec supports a wide indoor industrial range. These specs do not list an IP rating, so outdoor or washdown suitability cannot be confirmed from this product data alone.
