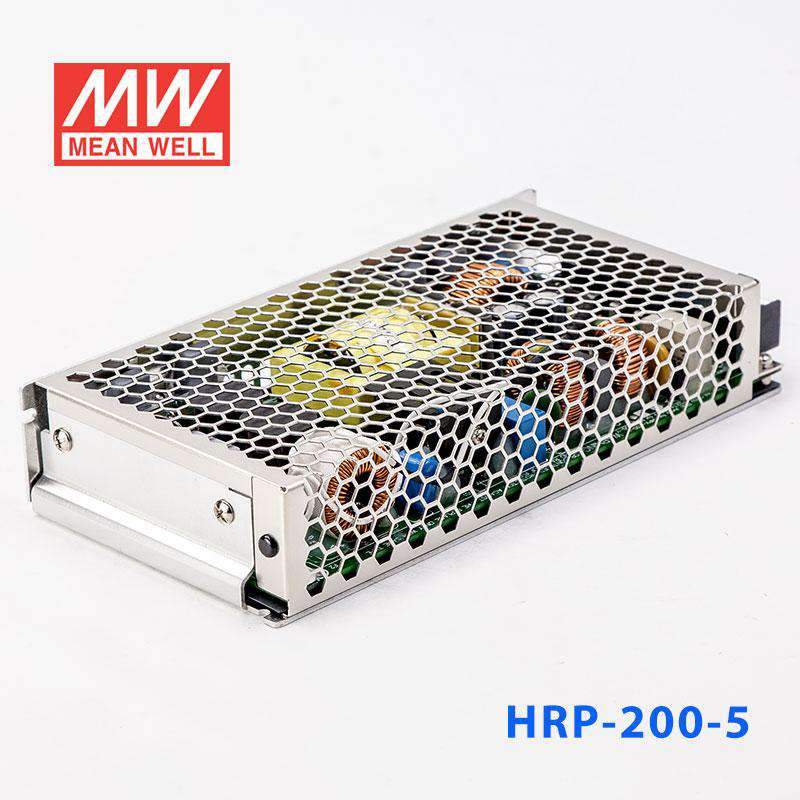

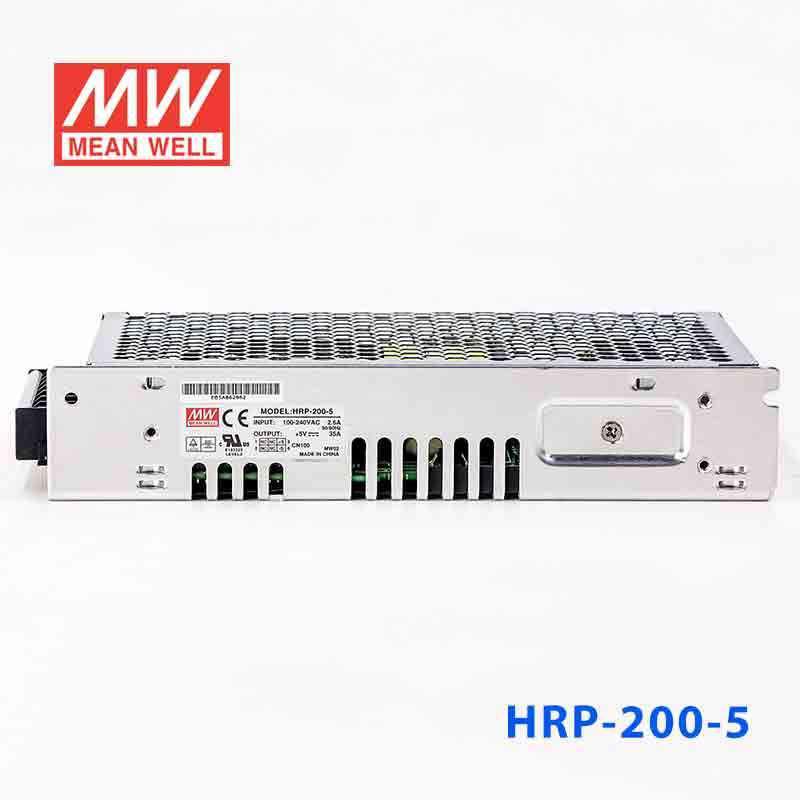

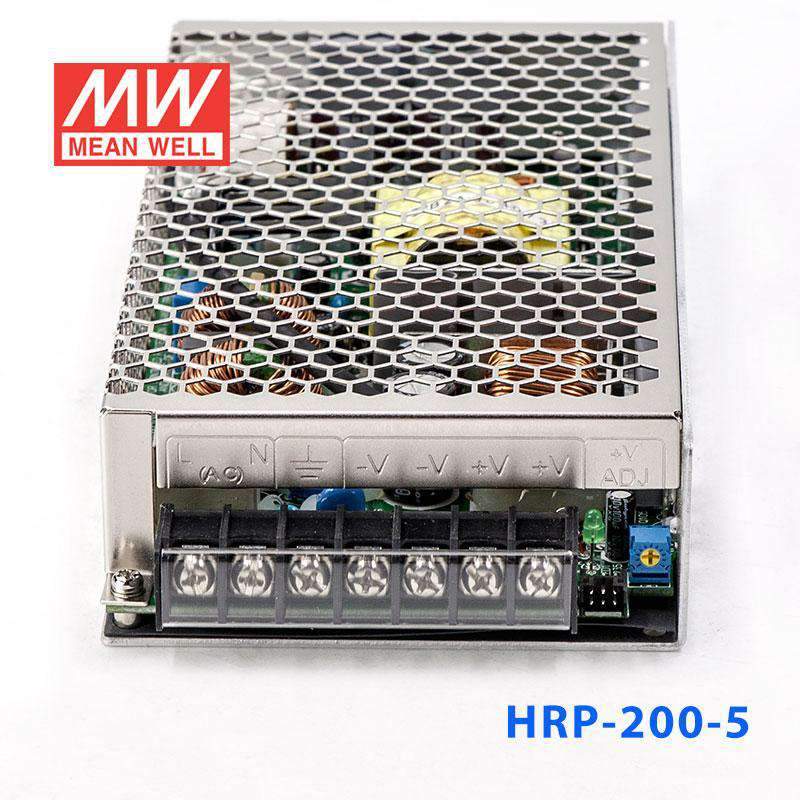

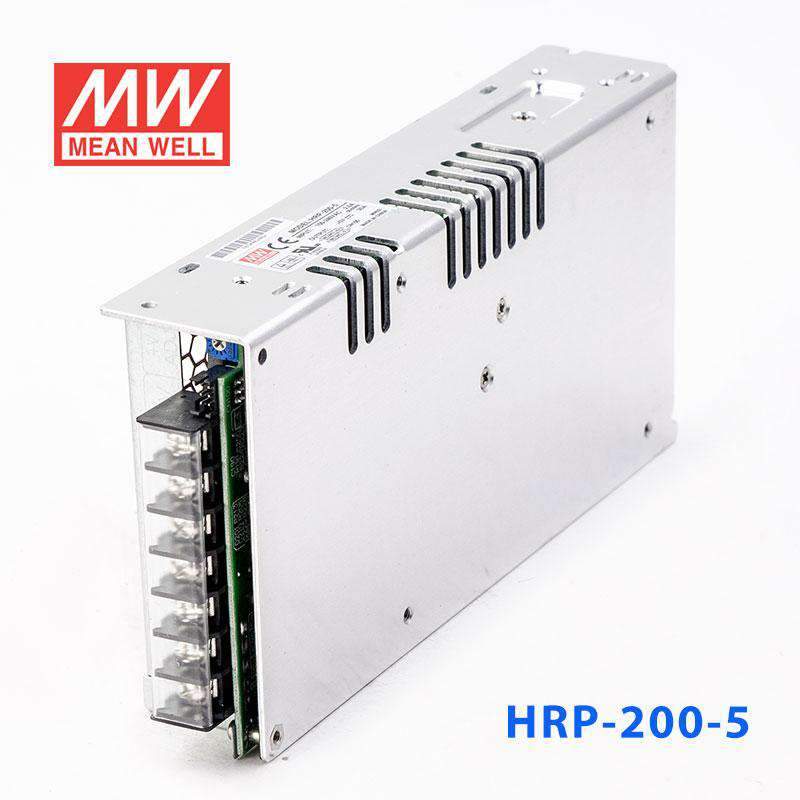

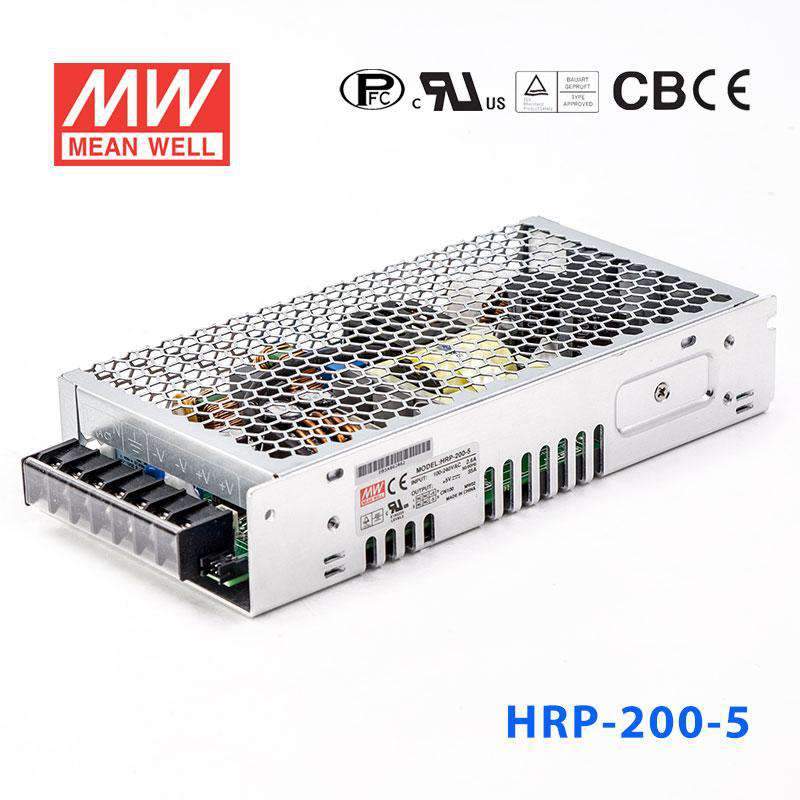

Mean Well HRP-200-5 Power Supply 175W 5V
The HRP-200 is a 200W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF UL62368-1,TUV EN62368-1, AS/NZS62368.1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating175 Watt
-
Output Voltage5 Volt
-
Rated Current35 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HRP-200-5 for a 5V industrial controller or PLC accessory load?
Yes, if the equipment needs 5V DC constant voltage and the total load stays within 35A and 175W. That makes it relevant for high-current 5V industrial control electronics and supporting logic loads.
Is the HRP-200-5 suitable for 5V embedded computing or single-board systems?
It can fit embedded computing applications that require a regulated 5V supply with substantial current available. The output rating is 5V at 35A with total power of 175W, so the full system load needs to stay inside those limits.
Can this power supply run multiple 5V digital devices in an industrial or IT enclosure?
This model is intended for constant voltage 5V DC loads, so it can support grouped 5V devices when their combined demand does not exceed 35A or 175W. It is better suited to high-current 5V electronics than to equipment that requires 12V, 24V, 36V, or 48V.
How does the HRP-200-5 compare with other HRP-200 outputs?
The HRP-200 versions listed are 3.3V at 40A and 132W, 5V at 35A and 175W, 7.5V at 26.7A and 200.3W, 12V at 16.7A and 200.4W, 15V at 13.4A and 201W, 24V at 8.4A and 201.6W, 36V at 5.7A and 205.2W, and 48V at 4.3A and 206.4W. Compared with the others, the HRP-200-5 is the dedicated 5V constant voltage option with one of the highest current outputs in the family.
Can the HRP-200-5 be used in cold or high-heat industrial environments?
The specified operating temperature is -40°C to +70°C, so the temperature range is broad for enclosed industrial use. No IP rating is listed in these specs, so outdoor or hose-down exposure should not be assumed from this product data.
