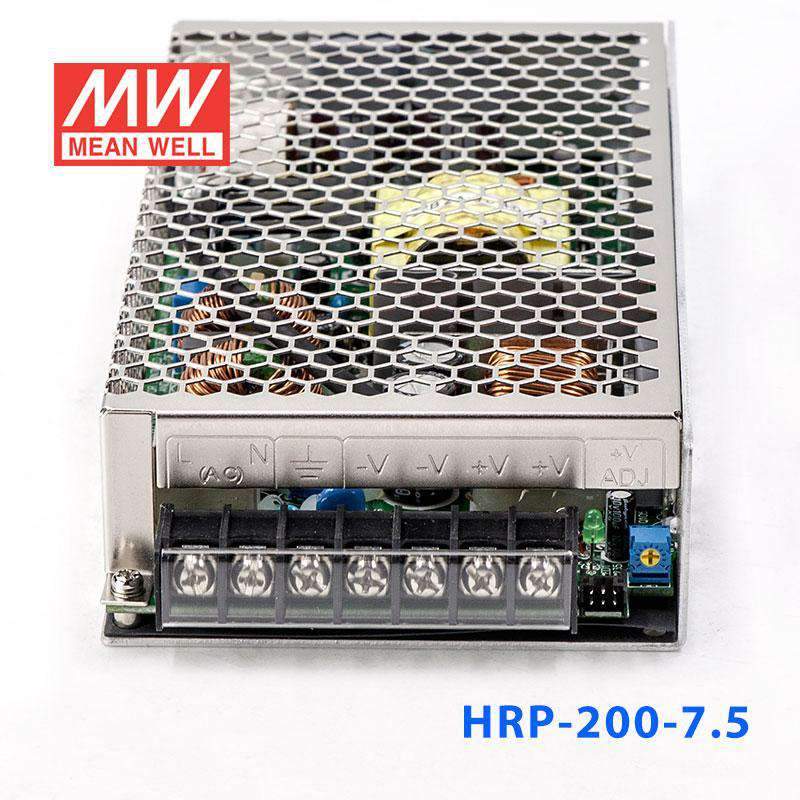

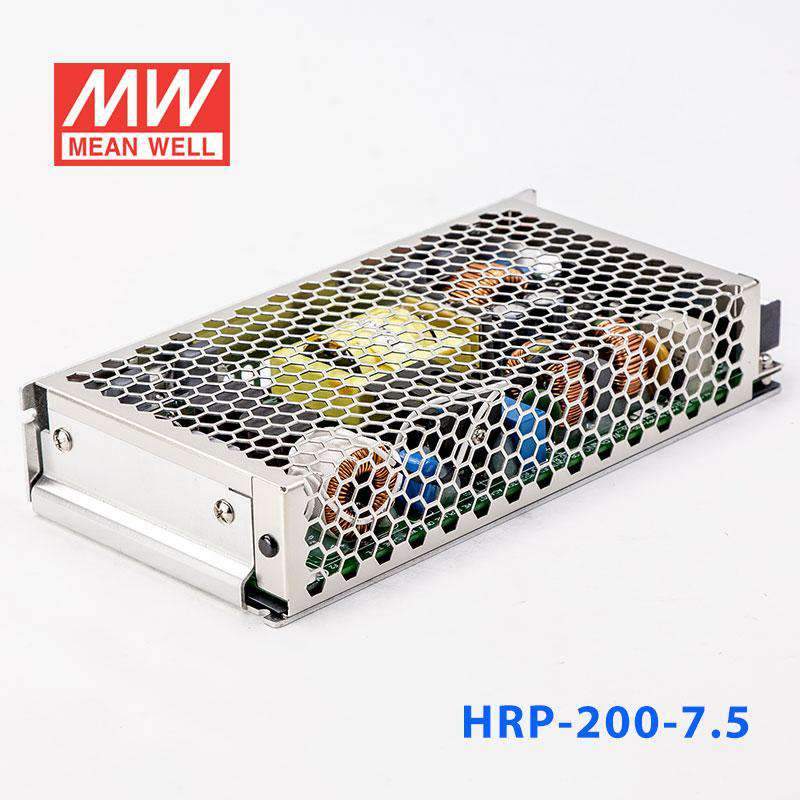

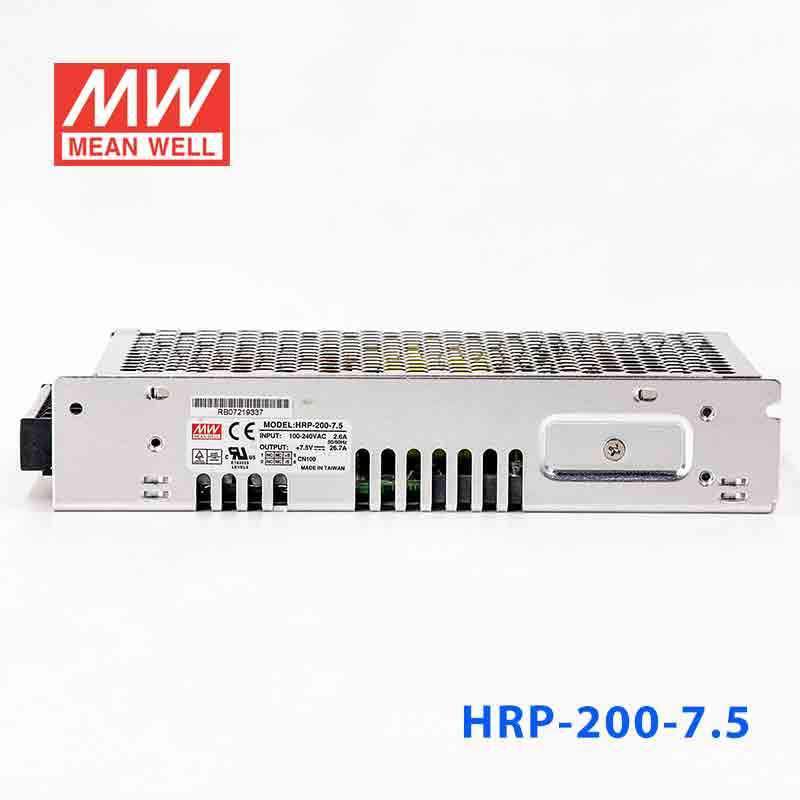

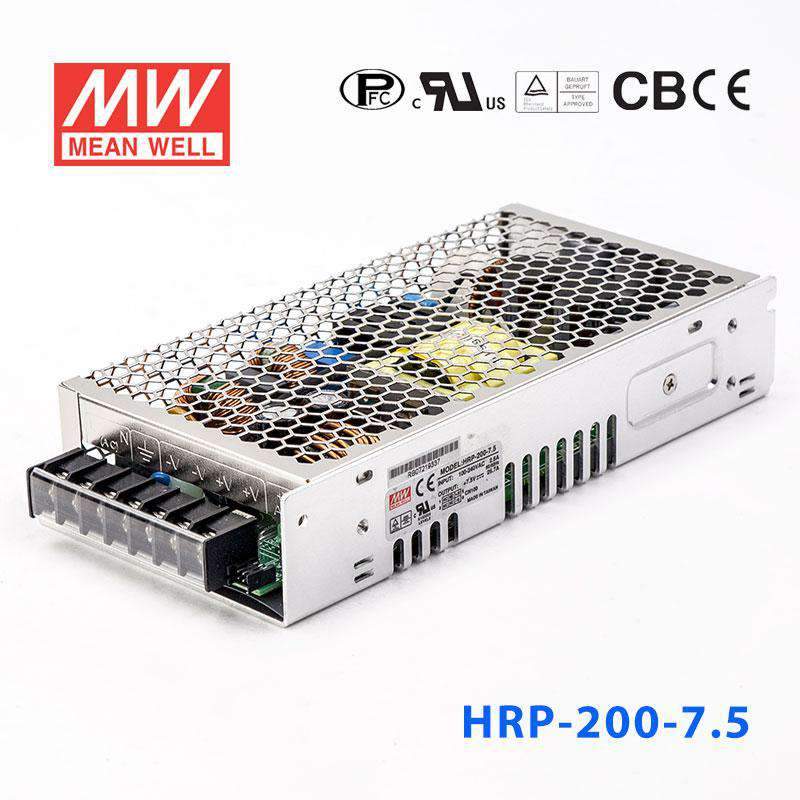

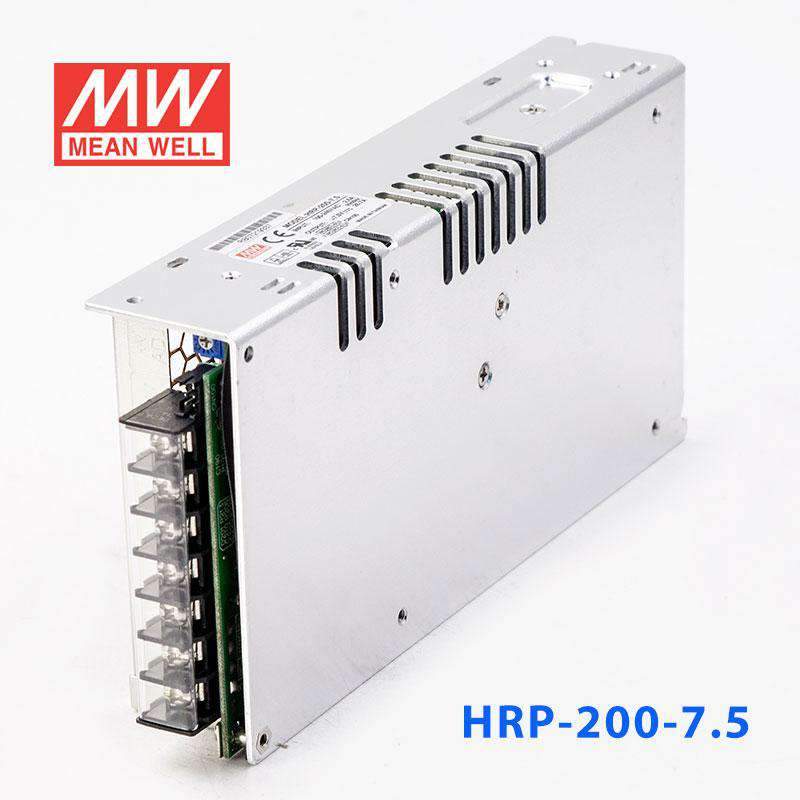

Mean Well HRP-200-7.5 Power Supply 200.3W 7.5V
The HRP-200 is a 200W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF UL62368-1,TUV EN62368-1, AS/NZS62368.1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating200.3 Watt
-
Output Voltage7.5 Volt
-
Rated Current26.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HRP-200-7.5 for 7.5V embedded or industrial electronics?
Yes, if the equipment requires 7.5V DC constant voltage and the load does not exceed 26.7A or 200.3W. That makes it suitable for higher-current 7.5V embedded or control electronics that match those ratings.
Is the HRP-200-7.5 a good fit for legacy 7.5V control systems or instruments?
It can be a fit for legacy or specialized equipment that specifically calls for 7.5V constant voltage input. The available output is 26.7A with total power up to 200.3W, which should be checked against the actual 7.5V load requirement.
Can this model power multiple 7.5V boards or modules in one enclosure?
It can support grouped 7.5V DC loads when the combined demand remains within 26.7A and 200.3W. Because it is a constant voltage supply, it is intended for equipment designed around a 7.5V input rail.
What is the difference between the HRP-200-7.5 and the other HRP-200 models?
The HRP-200 range shown here includes 3.3V at 40A and 132W, 5V at 35A and 175W, 7.5V at 26.7A and 200.3W, 12V at 16.7A and 200.4W, 15V at 13.4A and 201W, 24V at 8.4A and 201.6W, 36V at 5.7A and 205.2W, and 48V at 4.3A and 206.4W. The HRP-200-7.5 is the 7.5V constant voltage version for systems that need that specific DC bus level.
Is the HRP-200-7.5 rated for outdoor or wide-temperature use?
The operating temperature range is -40°C to +70°C, which supports use across a wide temperature span in protected equipment locations. The provided specs do not include an IP rating, so direct outdoor exposure cannot be confirmed from this listing.
