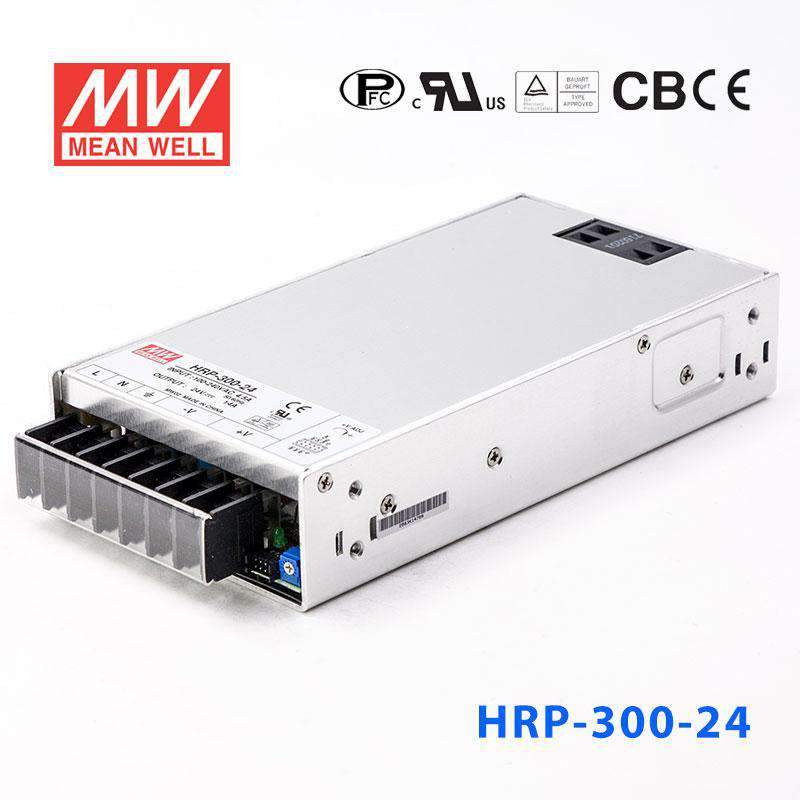

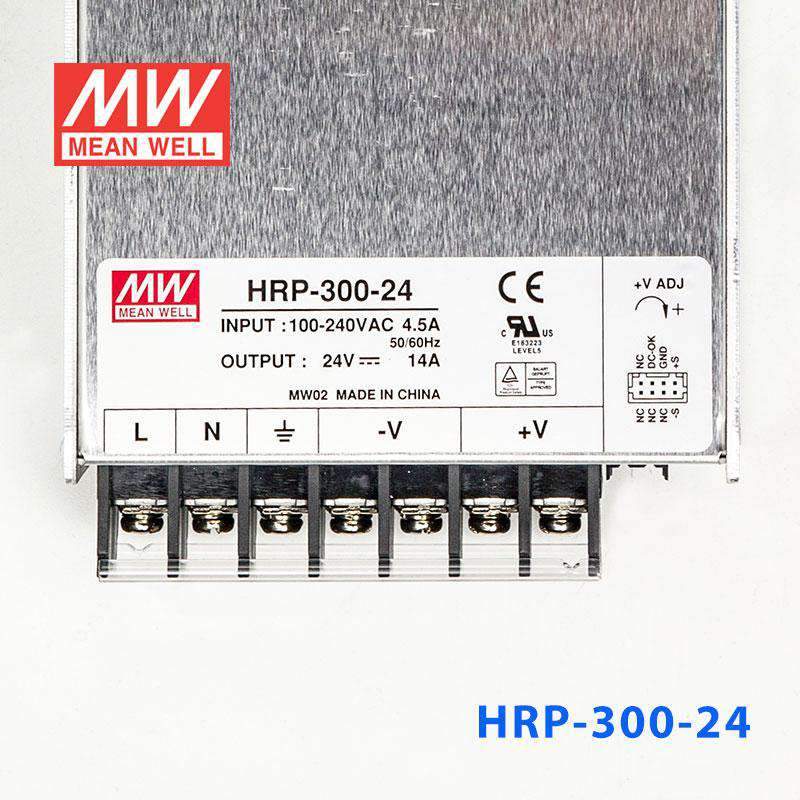

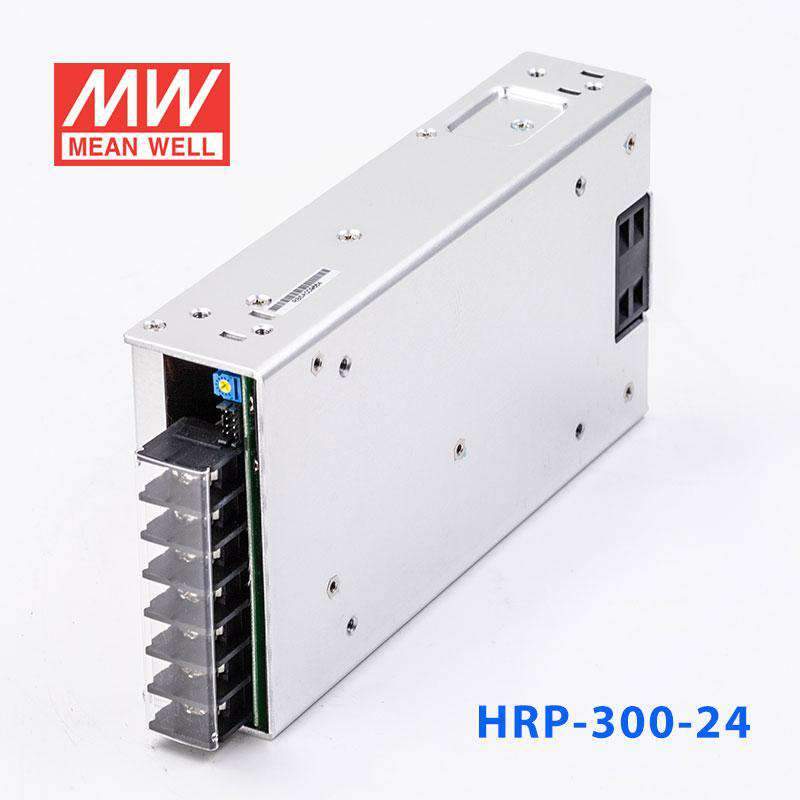

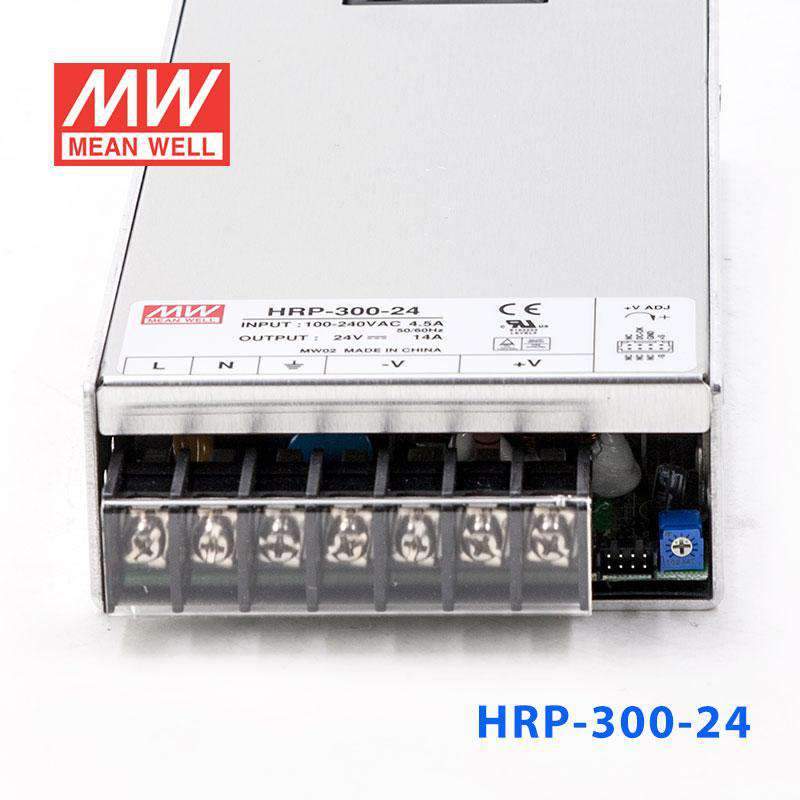

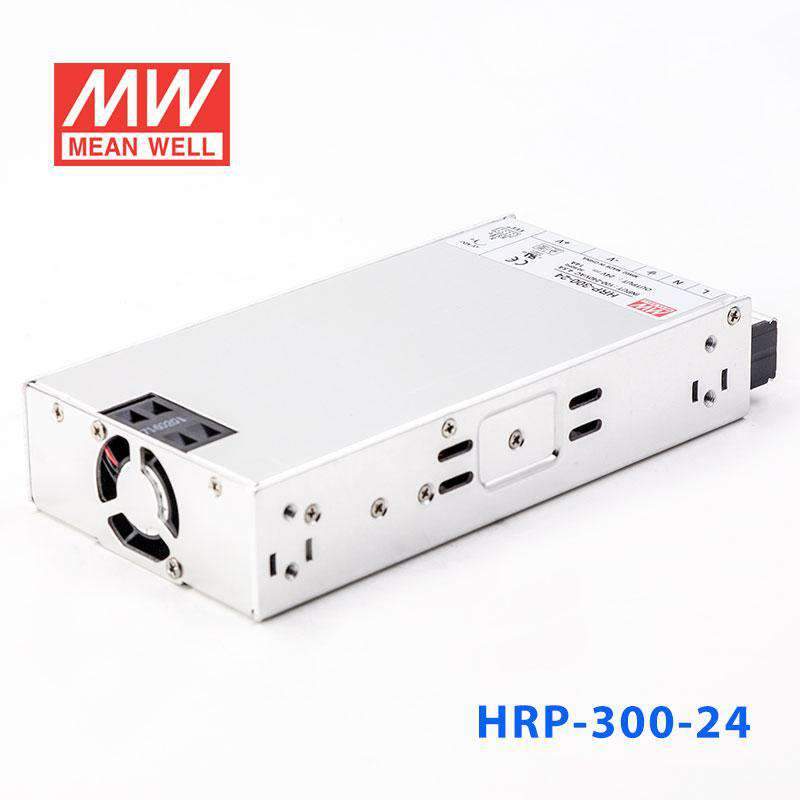

Mean Well HRP-300-24 Power Supply 336W 24V
The HRP-300 is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating336 Watt
-
Output Voltage24 Volt
-
Rated Current14 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the HRP-300-24 for a 24V PLC or industrial automation system?
Yes, this model is a constant voltage 24V power supply rated for 14A and 336W. It is suited to 24V industrial and automation loads that need more capacity than lower-power 24V models in the series.
Is the HRP-300-24 a fit for 24V embedded control equipment or instrumentation?
It can be used where the equipment requires a regulated 24V DC source and the total load remains within 14A and 336W. The 85-264VAC input range also supports use across varied AC input conditions.
Can this power supply support a 24V DC control panel with multiple devices on one supply?
It can, as long as the combined 24V demand stays within 336W and 14A. That makes it useful for centralized 24V control power in industrial panels and automation assemblies.
Would the HRP-300-24 work for a 24V communications or industrial electronics load?
It is appropriate for 24V constant voltage electronics that need up to 14A. Buyers usually choose this version when the load is specifically 24V and needs more power than the 108W, 156W, or 201.6W 24V siblings.
Can the HRP-300-24 be used outdoors or in unprotected areas?
The specified operating range is -40°C to +70°C, so it can handle a wide temperature span. No IP rating is provided, so it should be treated as an indoor or enclosure-protected power supply rather than an exposed outdoor unit.
What are the main differences between the HRP-300-24 and the other HRP-300 versions?
The HRP-300 family includes 3.3V at 198W and 60A, 5V at 300W and 60A, 7.5V at 300W and 40A, 12V at 324W and 27A, 15V at 330W and 22A, 24V at 336W and 14A, 36V at 324W and 9A, and 48V at 336W and 7A. The HRP-300-24 sits in the middle of the voltage range while keeping the same 199.0 × 105.0 × 41.0 mm form factor and 0.95 kg weight as the other products listed here.
