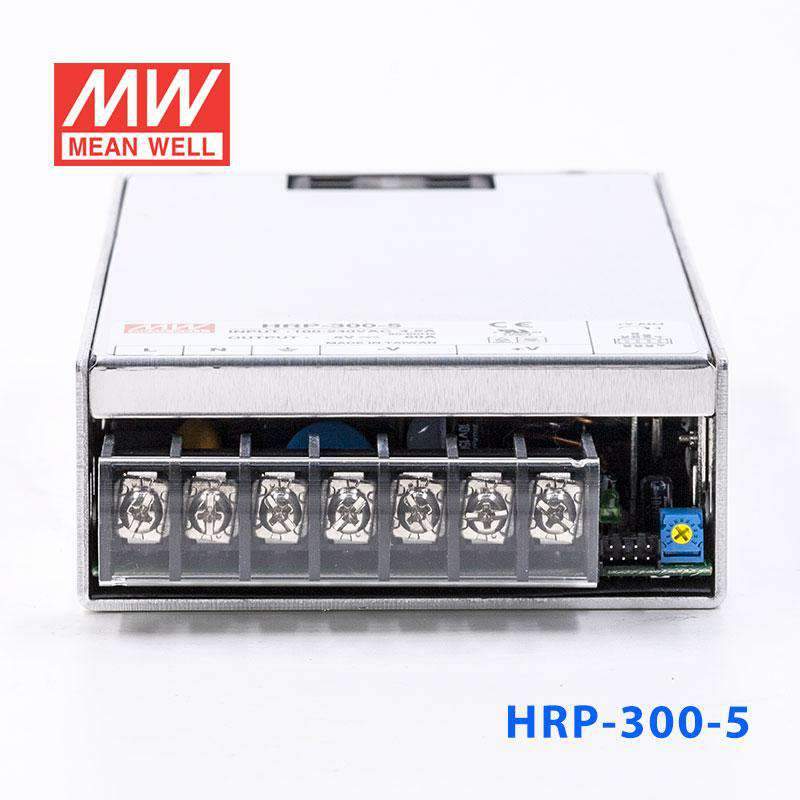

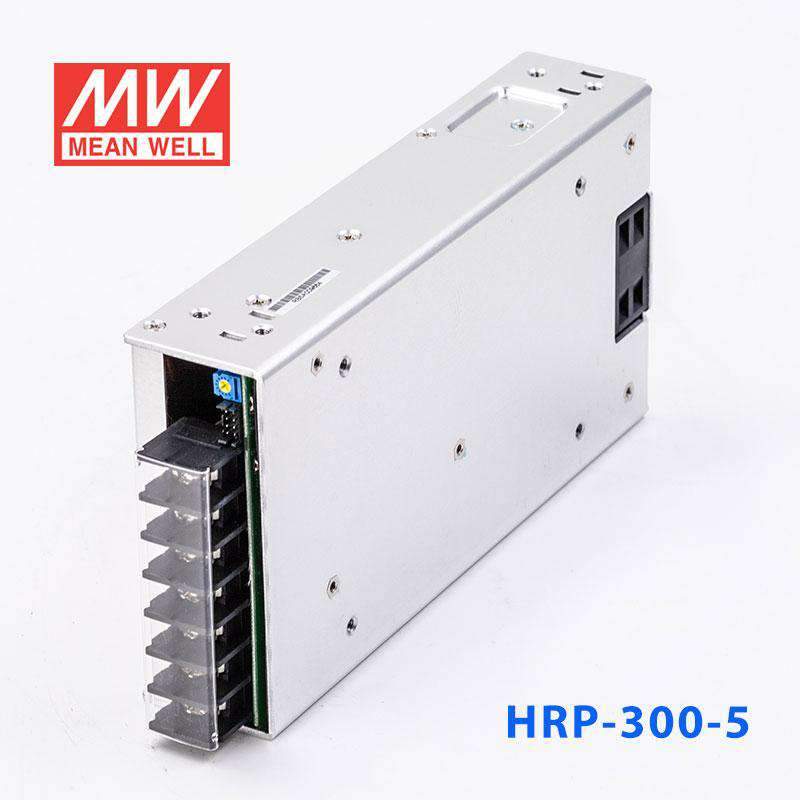

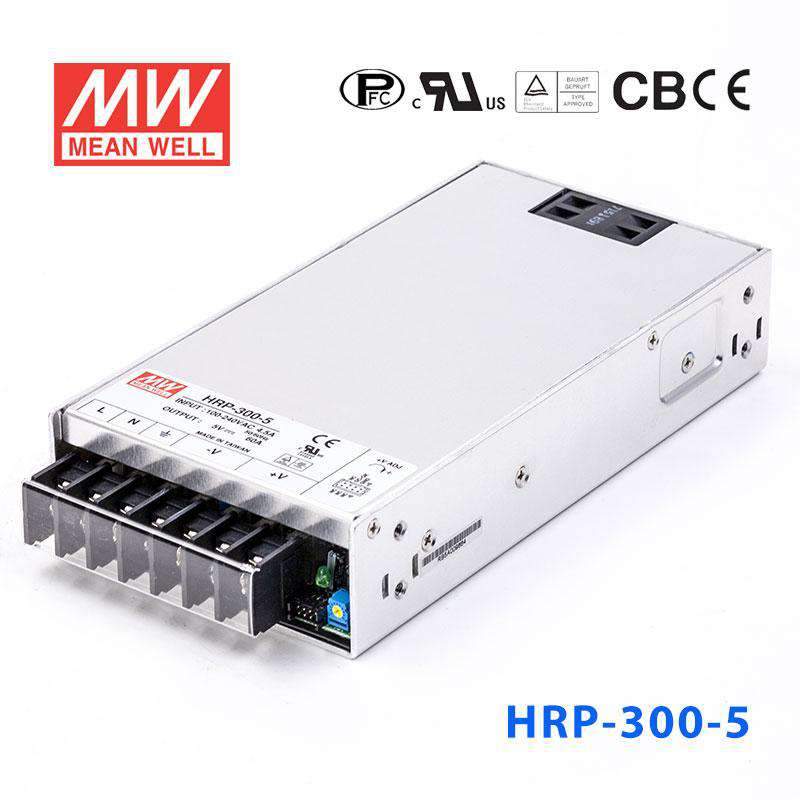

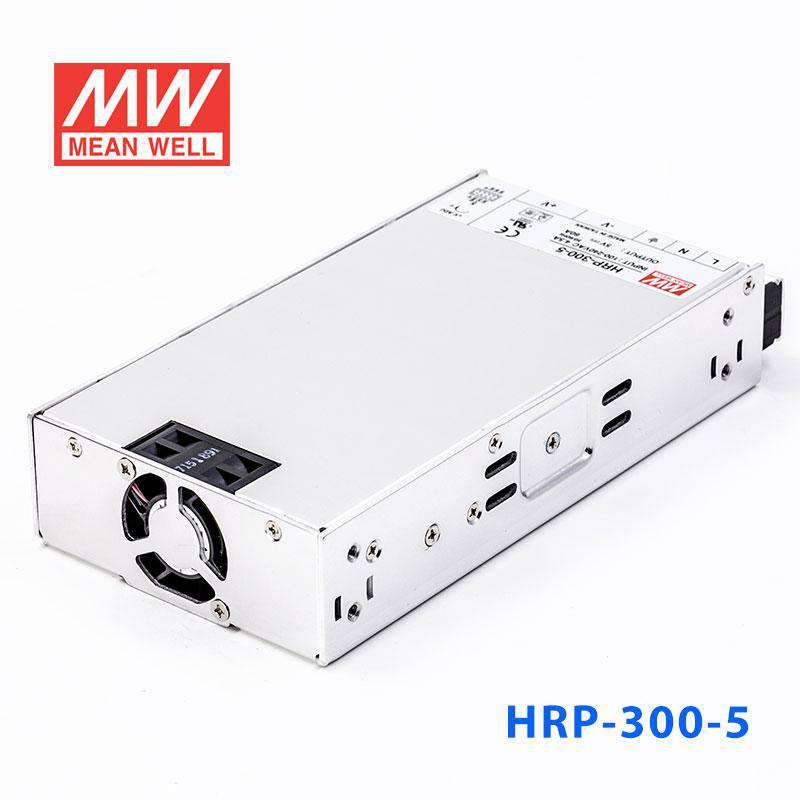

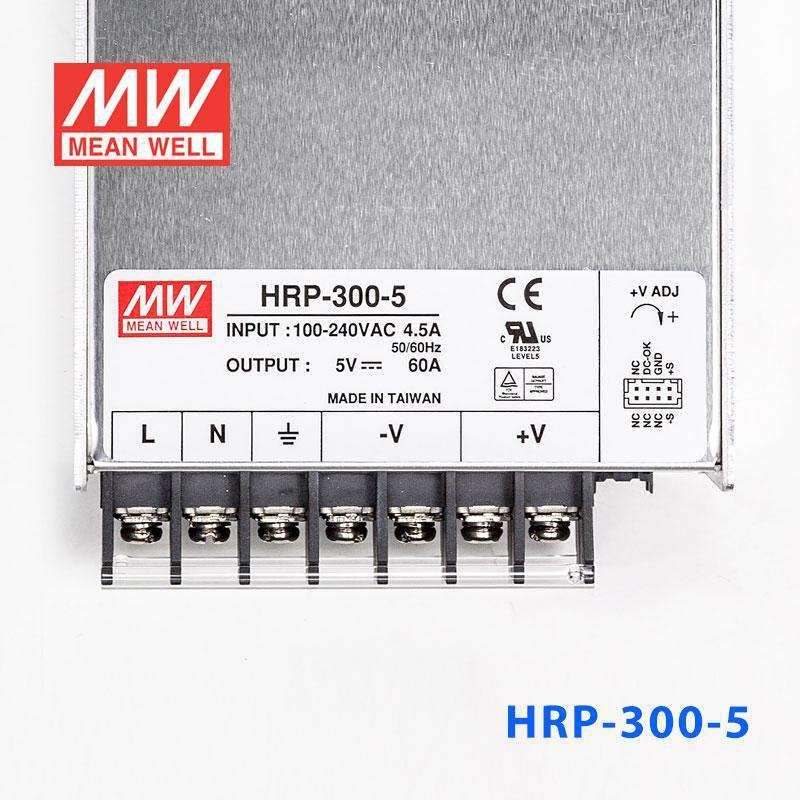

Mean Well HRP-300-5 Power Supply 300W 5V
The HRP-300 is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating300 Watt
-
Output Voltage5 Volt
-
Rated Current60 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the HRP-300-5 for a 5V industrial controller or PLC rack that needs high current?
Yes, this model is a constant voltage 5V supply rated for 300W and 60A. That makes it suitable for 5V control hardware, industrial logic assemblies, or low-voltage electronics that specifically require a regulated 5V bus within that power range.
Is the HRP-300-5 a good fit for 5V embedded systems, SBC clusters, or test benches?
It can be a fit when the load requires a stable 5V output and the total demand stays within 300W and 60A. The wide 85-264VAC input also makes it practical for lab, factory, or integration environments using different AC mains standards.
Can this 5V power supply run high-current USB-style electronics or 5V DC loads in automation equipment?
It is intended for 5V constant voltage loads and has substantially more current capacity than lower-power 5V units at 60A. For automation cabinets or embedded assemblies with multiple 5V devices, the key match is that the full system must be designed around a 5V, 300W source.
Is the HRP-300-5 suitable for indoor industrial environments with temperature swings?
The specified operating temperature range is -40°C to +70°C, which supports demanding indoor industrial conditions. These specs do not list an IP rating, so outdoor or washdown exposure is not established from the provided data.
How does the HRP-300-5 compare with other HRP-300 voltage options?
In the HRP-300 family, the published variants are 3.3V at 198W and 60A, 5V at 300W and 60A, 7.5V at 300W and 40A, 12V at 324W and 27A, 15V at 330W and 22A, 24V at 336W and 14A, 36V at 324W and 9A, and 48V at 336W and 7A. The main difference is the output voltage and corresponding output current for each model.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-300 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-300-7.5 Power Supply 300W 7.5V | 300W | 7.5V | 40A | Indoor | $93.83 | View |
| Mean Well HRP-300-48 Power Supply 336W 48V | 336W | 48V | 7A | Indoor | $93.83 | View |
| Mean Well HRP-300-36 Power Supply 324W 36V | 324W | 36V | 9A | Indoor | $72.07 | View |
| Mean Well HRP-300-3.3 Power Supply 198W 3.3V | 198W | 3.3V | 60A | Indoor | $93.83 | View |
