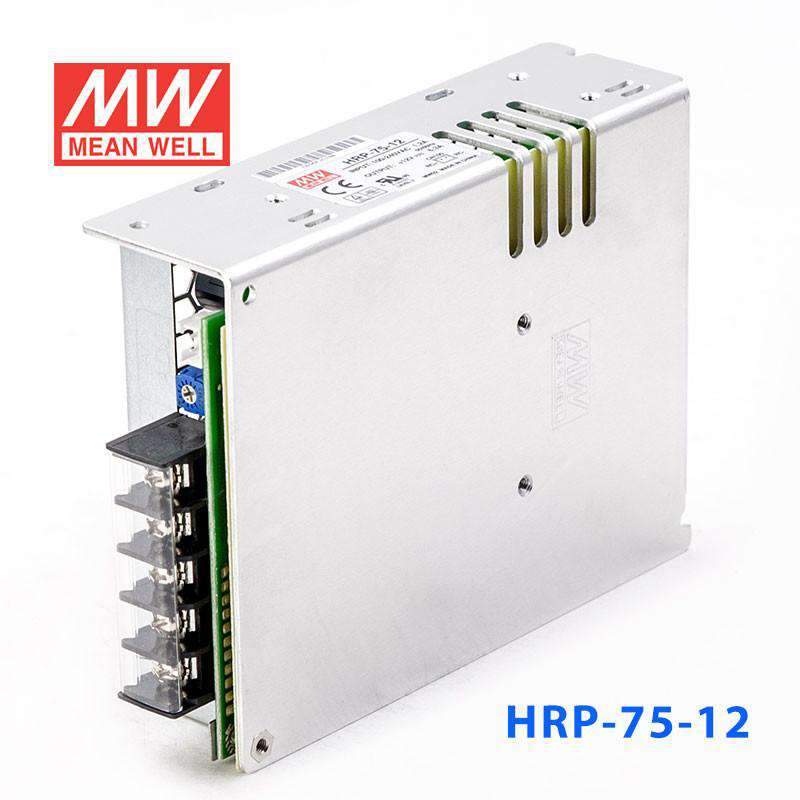

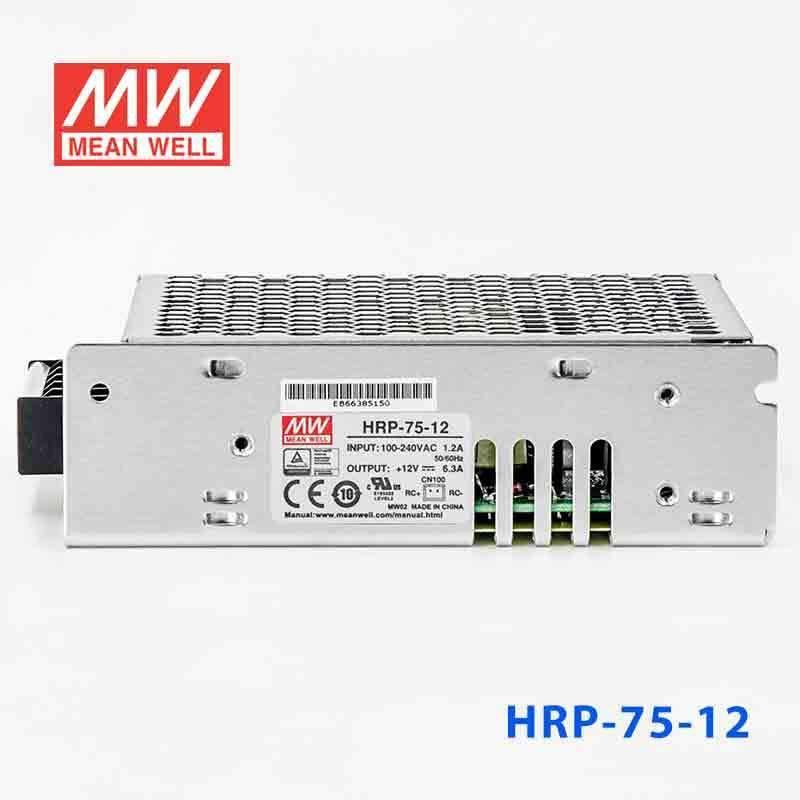

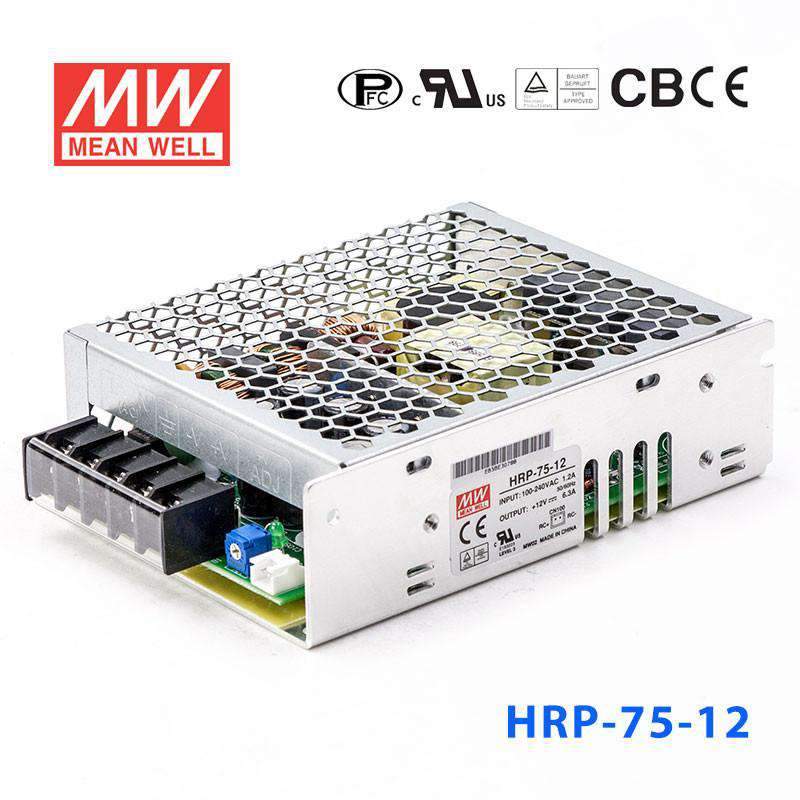

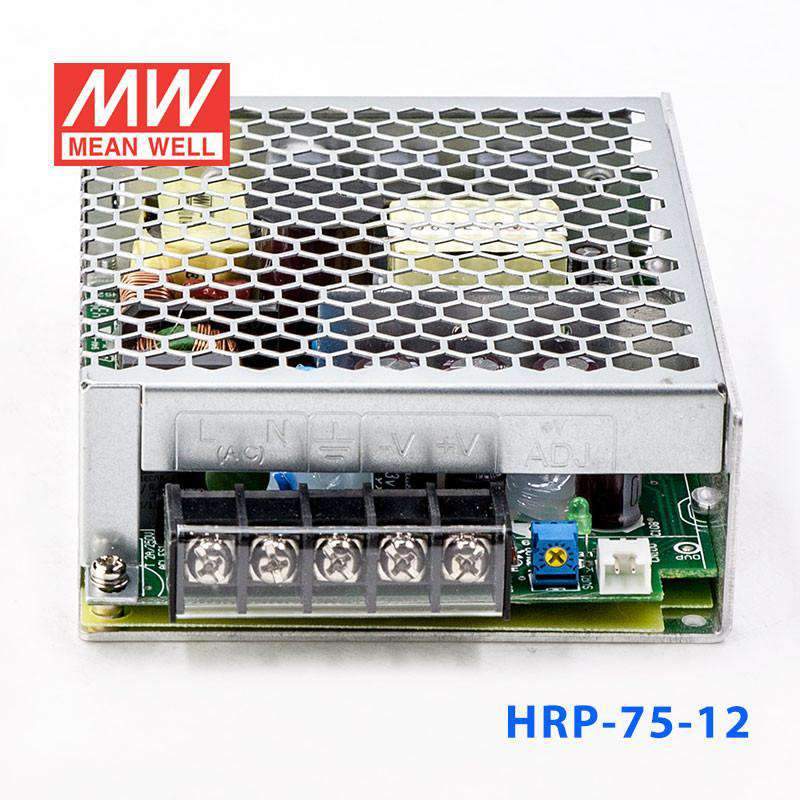

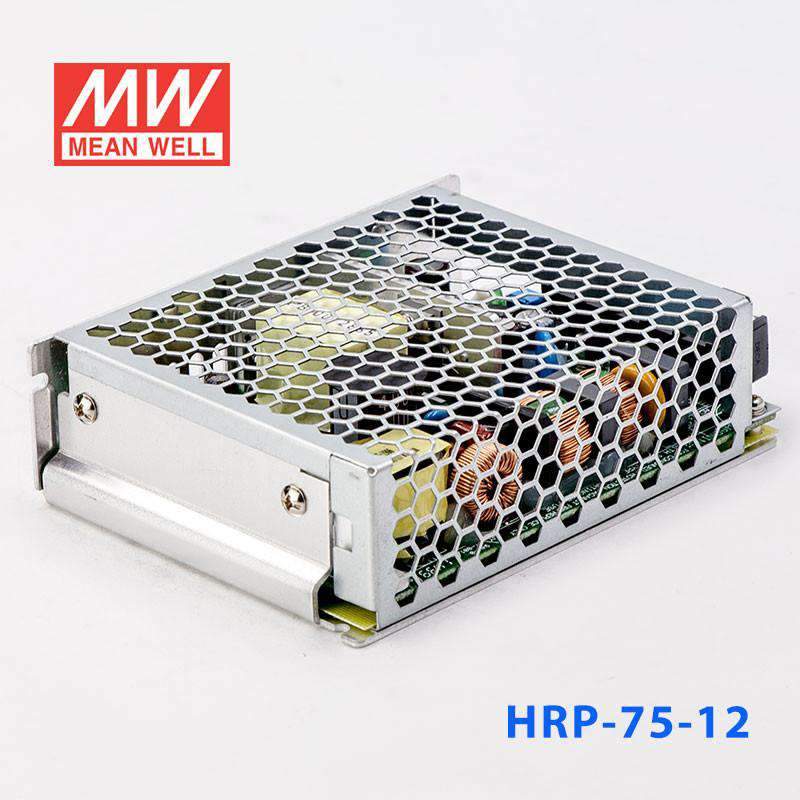

Mean Well HRP-75-12 Power Supply 75.6W 12V
The HRP-75 is a 75W Mean Well power converter (input range: 85~264VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating75.6 Watt
-
Output Voltage12 Volt
-
Rated Current6.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.04 lb
::specification::
Frequently Asked Questions
Can I use the HRP-75-12 for a 12V PLC accessory or small automation panel?
Yes, if the connected 12V DC load stays within 6.3A and 75.6W, this constant voltage supply can fit small automation panel devices and PLC accessories. The 85-264VAC input also makes it usable across common AC mains ranges.
Is the HRP-75-12 a good fit for 12V sensors, relays, and control hardware?
It is suitable for 12V control hardware that requires a regulated constant voltage source and draws no more than 6.3A or 75.6W. That makes it better suited to lighter-duty 12V systems than higher-current 12V supplies in the same series.
Can the HRP-75-12 power a 12V embedded system or industrial interface device?
It can be used with embedded or interface equipment that specifically needs 12V constant voltage and remains inside the 75.6W output rating. Its compact size of 129.0 × 98.0 × 38.0 mm can also help in tighter equipment enclosures.
Would this model work for low-power 12V monitoring or communication equipment?
Yes, for 12V monitoring or communication hardware that operates within 6.3A and 75.6W, this supply is in the right output class. It also has high efficiency up to 90% and no load power consumption below 0.5W to 0.75W.
How does the HRP-75-12 compare with other 12V HRP models?
The listed 12V HRP models are HRP-75-12 at 75.6W and 6.3A, HRP-100-12 at 102W and 8.5A, HRP-150-12 and HRP-150N-12 and HRP-150N3-12 at 150W or 156W and 13A, HRP-200-12 at 200.4W and 16.7A, HRP-300-12 and HRP-300N-12 and HRP-300N3-12 at 300W or 324W and 27A, HRP-450-12 at 450W and 37.5A, and HRP-600-12 and HRP-600N-12 and HRP-600N3-12 at 600W or 636W and 53A. HRP-75-12 is the lowest-power 12V option in that group.
Can the HRP-75-12 be used in cold or hot industrial environments?
The specified operating temperature range is -40°C to +70°C, which supports use in a wide range of indoor industrial environments. No IP rating is provided, so outdoor exposure or weather resistance is not established by the listed specs.
