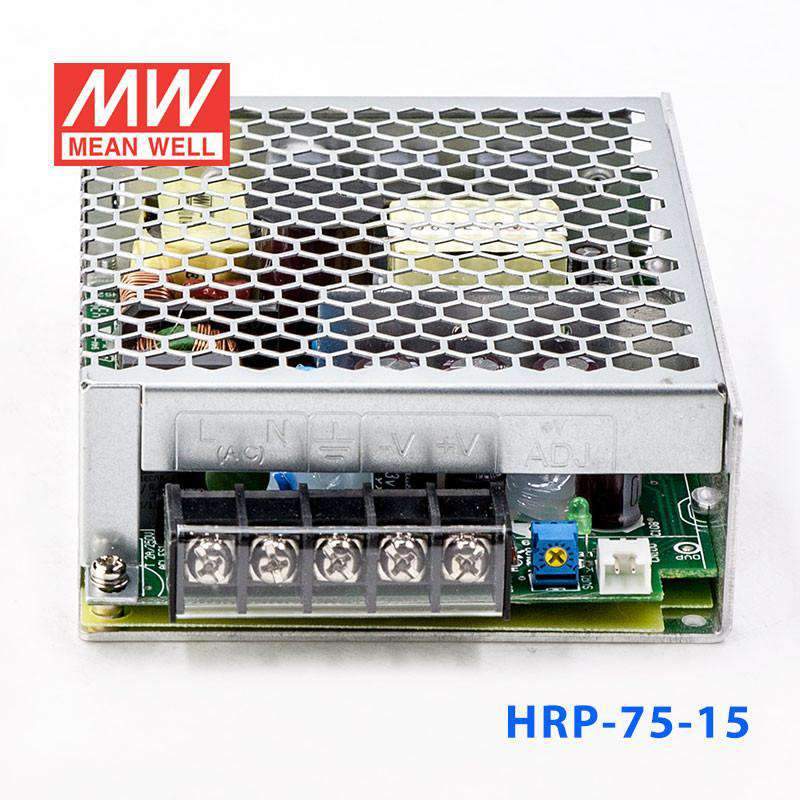

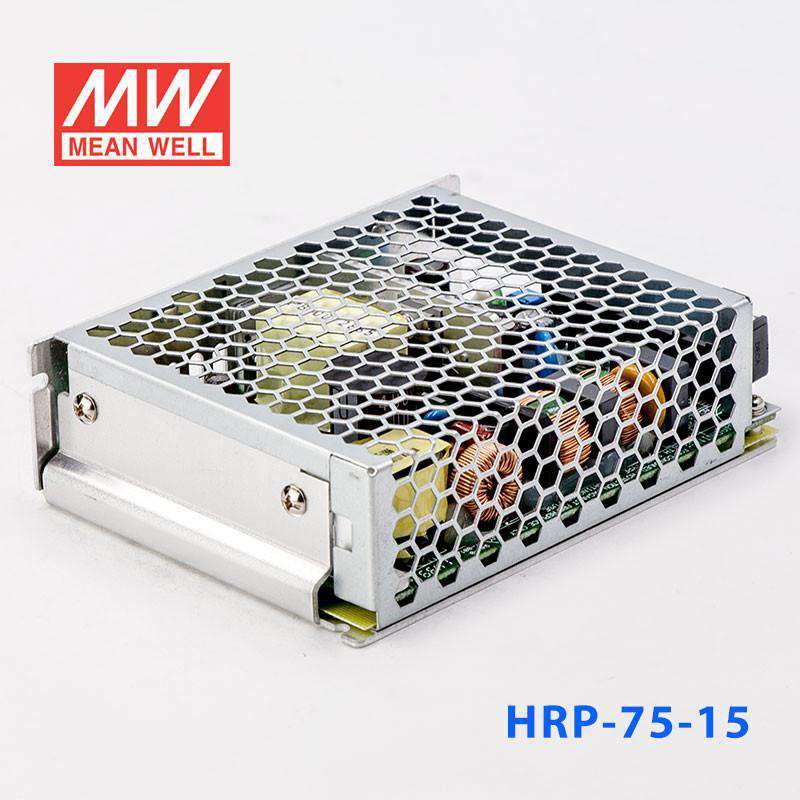

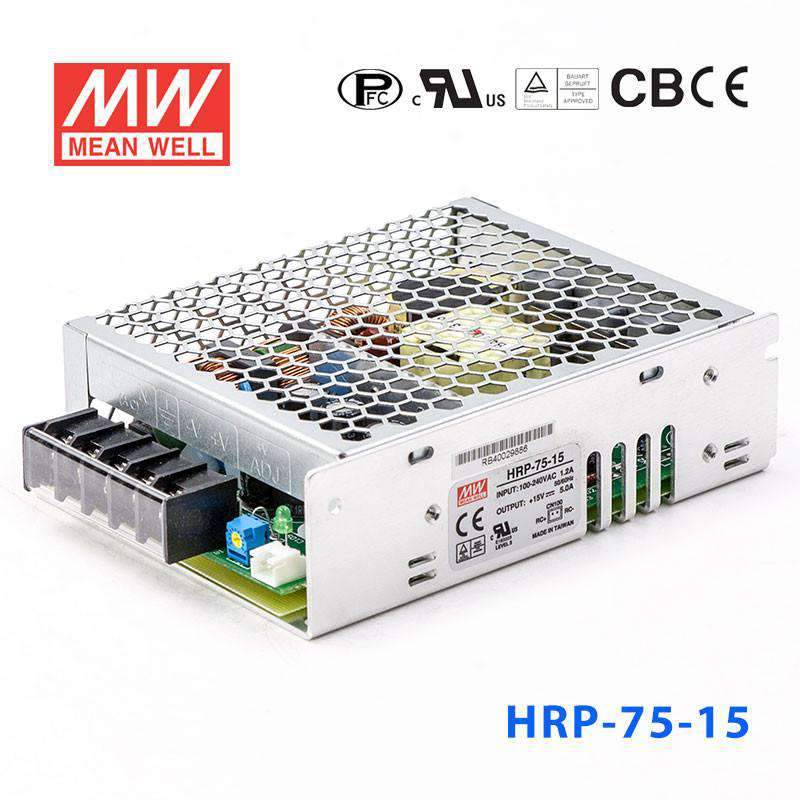

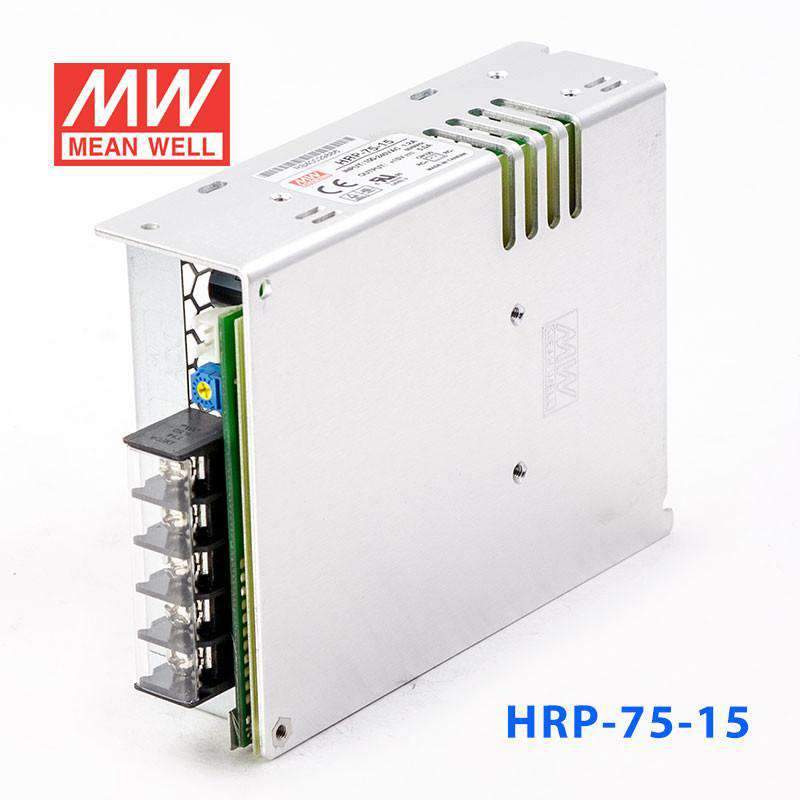

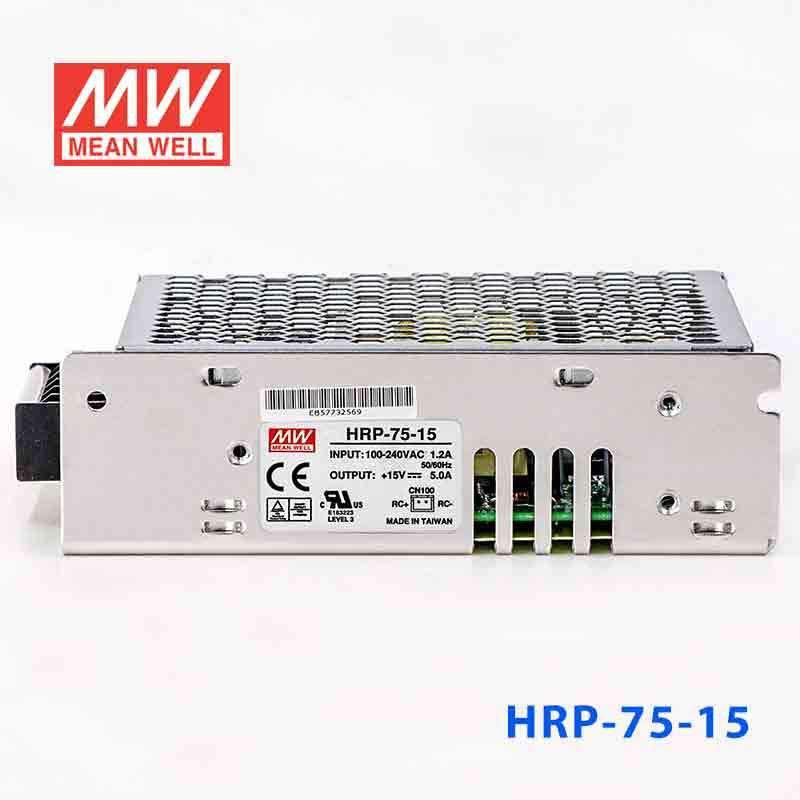

Mean Well HRP-75-15 Power Supply 75W 15V
The HRP-75 is a 75W Mean Well power converter (input range: 85~264VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.04 lb
::specification::
Frequently Asked Questions
Can I use the HRP-75-15 for 15V industrial controls or automation electronics?
Yes, this unit provides constant voltage 15V output up to 5A and 75W, so it fits 15V automation electronics that stay within those limits. The 85-264VAC input range also supports use in systems with varying AC mains input.
Is the HRP-75-15 suitable for 15V instrumentation or embedded hardware?
It can be suitable for instrumentation or embedded hardware that specifically requires 15V DC constant voltage and draws no more than 5A. Its high efficiency up to 90% also helps where power loss and heat matter.
Would the HRP-75-15 work for small 15V test, measurement, or control devices?
It is a reasonable choice for small 15V DC devices in test, measurement, or control applications when the total load remains within 75W. The compact 129.0 × 98.0 × 38.0 mm form factor can also suit space-limited equipment.
Can this supply support low-power 15V industrial communications equipment?
It can support 15V communications or interface equipment if the load stays inside the 5A and 75W rating and expects constant voltage output. For higher-current 15V hardware, larger HRP series models are available.
How does the HRP-75-15 compare with other 15V models in the HRP series?
The listed 15V versions are HRP-75-15 at 75W and 5A, HRP-100-15 at 105W and 7A, HRP-150-15 at 150W and 10A, HRP-200-15 at 201W and 13.4A, HRP-300-15 at 330W and 22A, HRP-450-15 at 450W and 30A, and HRP-600-15 at 645W and 43A. HRP-75-15 is the smallest 15V option among those listed.
Is the HRP-75-15 appropriate for outdoor or temperature-challenging locations?
The operating temperature range is -40°C to +70°C, so the temperature spec is broad enough for demanding environments. No IP rating is shown in the provided specs, so outdoor exposure suitability cannot be confirmed from this data alone.
