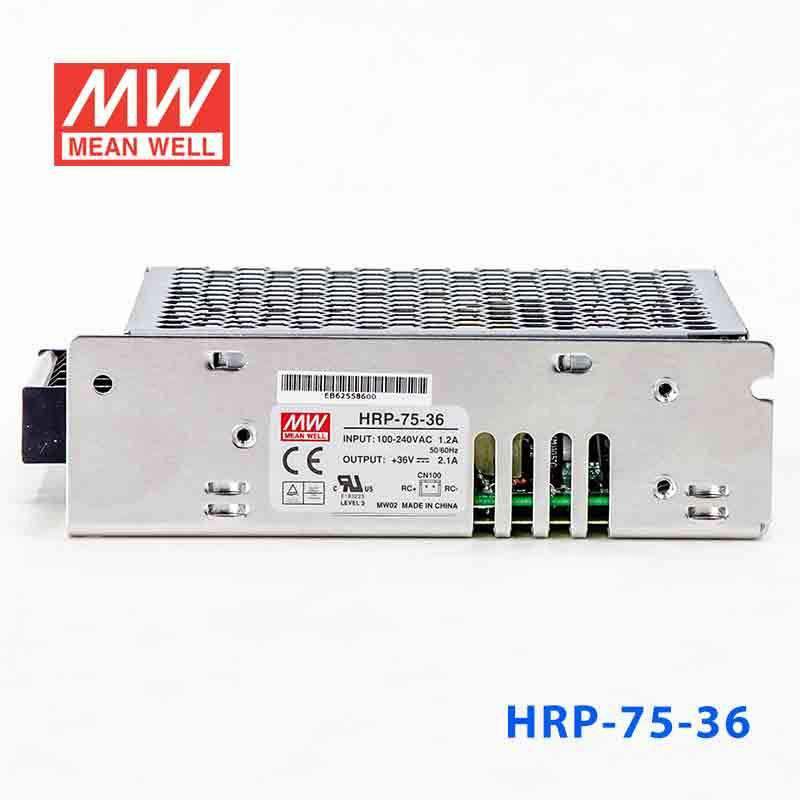

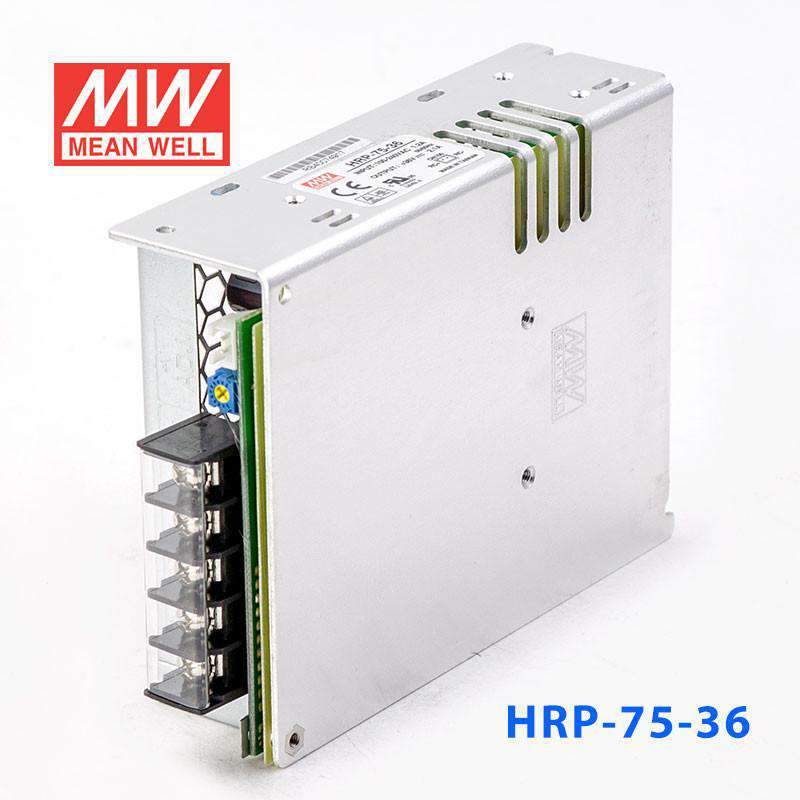

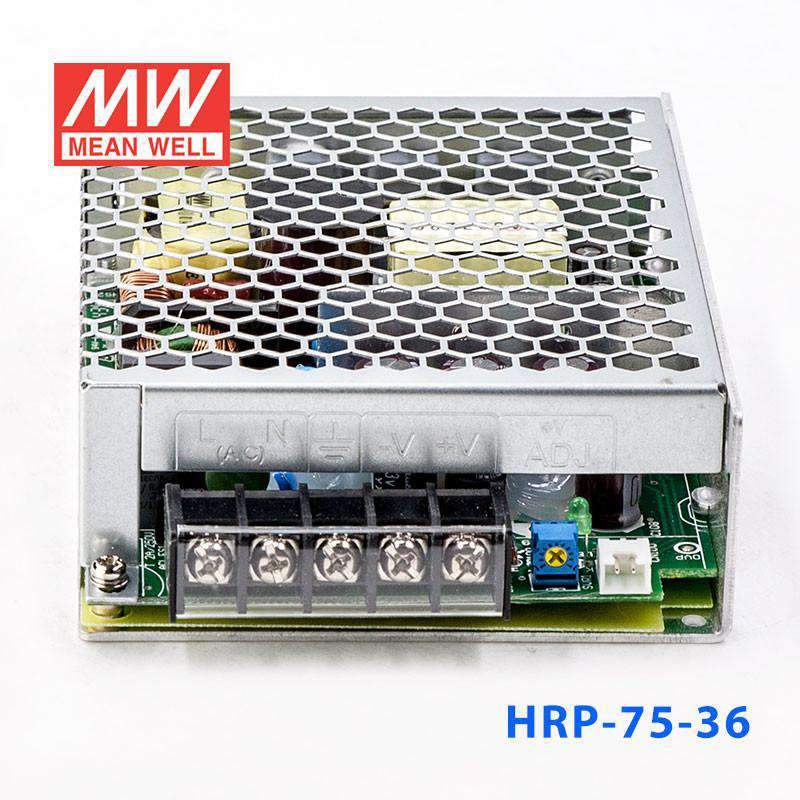

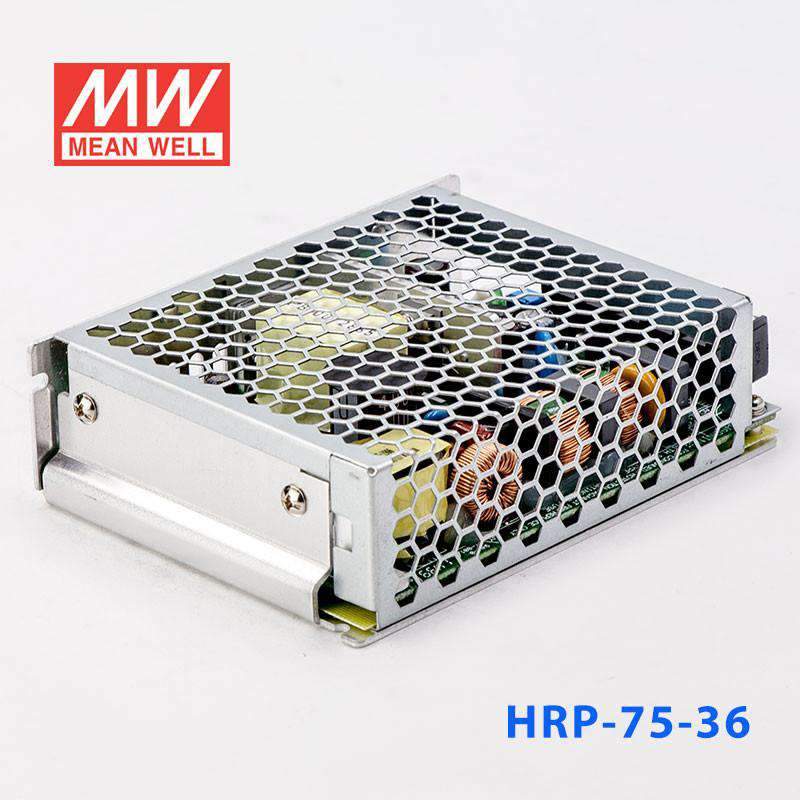

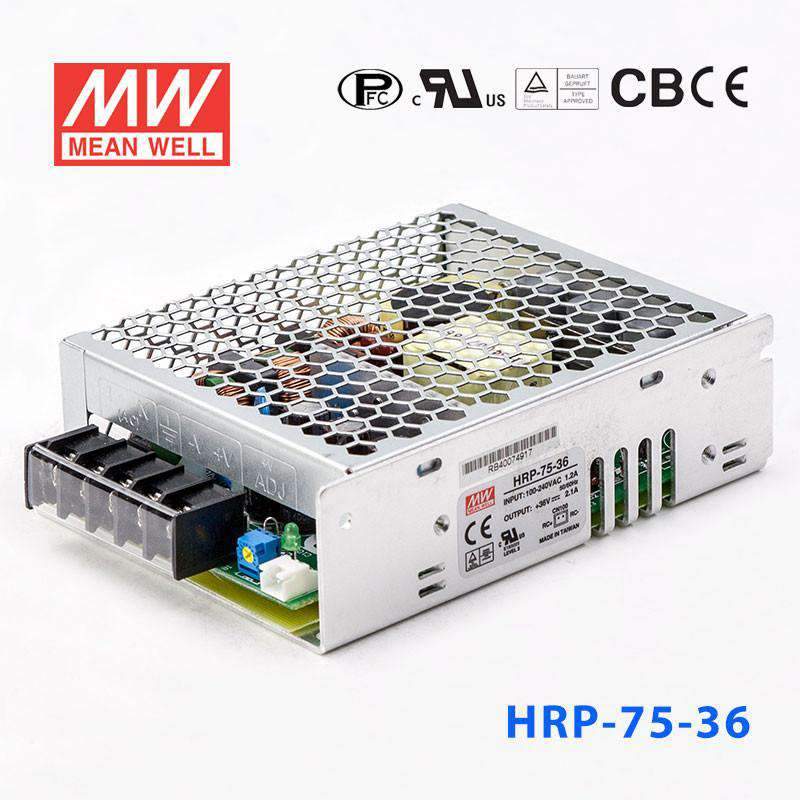

Mean Well HRP-75-36 Power Supply 75.6W 36V
The HRP-75 is a 75W Mean Well power converter (input range: 85~264VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating75.6 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.04 lb
::specification::
Frequently Asked Questions
Can I use the HRP-75-36 for a 36V industrial control panel load?
It is a constant voltage 36V supply rated for up to 2.1A and 75.6W, so it fits 36V control loads that stay within those limits. The 85-264VAC input and -40°C to +70°C operating range make it suitable for industrial panels or embedded equipment with broad mains and ambient conditions.
Is the HRP-75-36 a good fit for 36V automation sensors, relays, or small actuators?
It can be used where the 36V devices together require no more than 2.1A and 75.6W. Because it is a constant voltage model, it is intended for 36V equipment that expects a regulated 36V supply rather than a constant current source.
Can this model power a 36V embedded system or test fixture?
Yes, if the embedded or test system needs 36V constant voltage and its total draw remains within 75.6W and 2.1A. Its compact 129.0 × 98.0 × 38.0 mm size can help where enclosure space is limited.
How does the HRP-75-36 compare with the other HRP-75 models?
Within the HRP-75 group, the listed outputs are 3.3V 49.5W 15A, 5V 75W 15A, 7.5V 75W 10A, 12V 75.6W 6.3A, 15V 75W 5A, 24V 76.8W 3.2A, 36V 75.6W 2.1A, and 48V 76.8W 1.6A. The main selection difference is output voltage, then available current and wattage at that voltage.
Is the HRP-75-36 suitable for outdoor or harsh-temperature use?
The operating temperature range is -40°C to +70°C, so the temperature spec is broad. However, no IP rating is listed in the provided specs, so outdoor exposure or washdown use should not be assumed from this data alone.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-75 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-75-7.5 Power Supply 75W 7.5V | 75W | 7.5V | 10A | Indoor | $43.00 | View |
| Mean Well HRP-75-5 Power Supply 75W 5V | 75W | 5V | 15A | Indoor | $37.13 | View |
| Mean Well HRP-75-48 Power Supply 76.8W 48V | 76.8W | 48V | 1.6A | Indoor | $43.11 | View |
| Mean Well HRP-75-3.3 Power Supply 49.5W 3.3V | 49.5W | 3.3V | 15A | Indoor | $43.11 | View |
| Mean Well HRP-75-24 Power Supply 76.8W 24V | 76.8W | 24V | 3.2A | Indoor | $37.52 | View |
| Mean Well HRP-75-15 Power Supply 75W 15V | 75W | 15V | 5A | Indoor | $43.11 | View |
| Mean Well HRP-75-12 Power Supply 75.6W 12V | 75.6W | 12V | 6.3A | Indoor | $43.00 | View |
