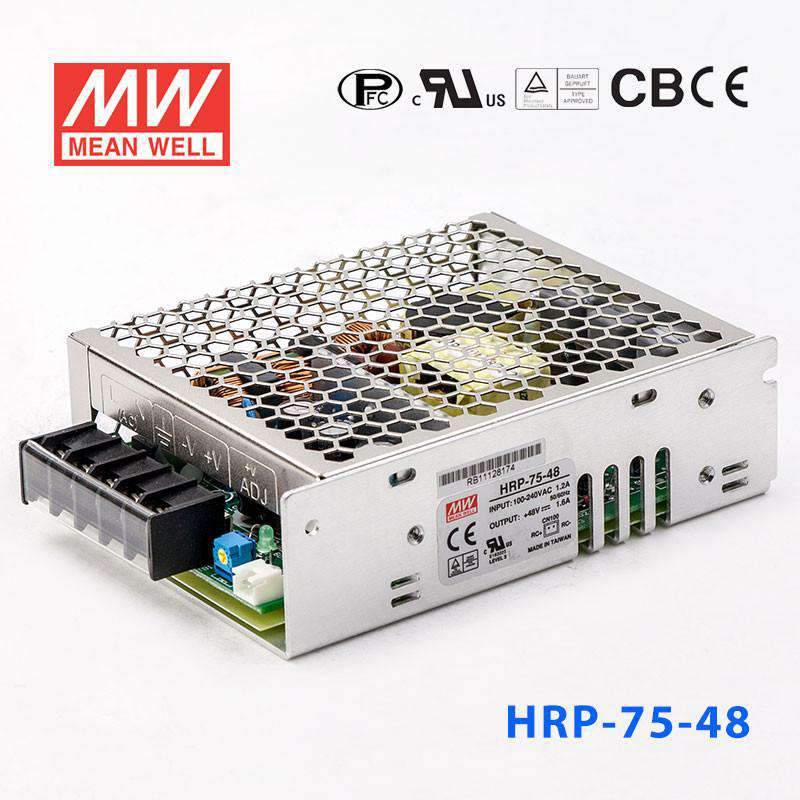

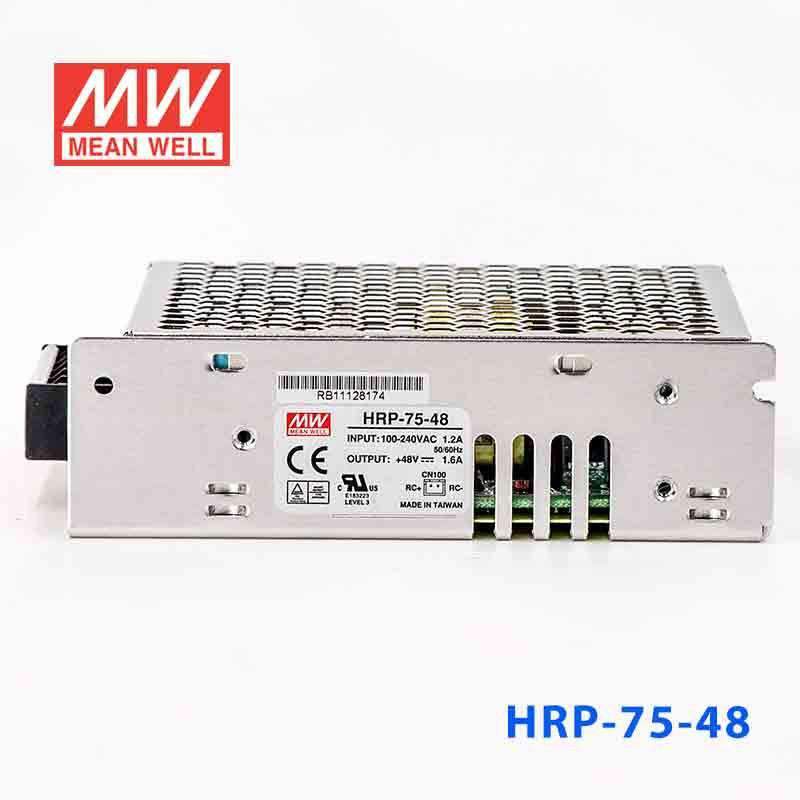

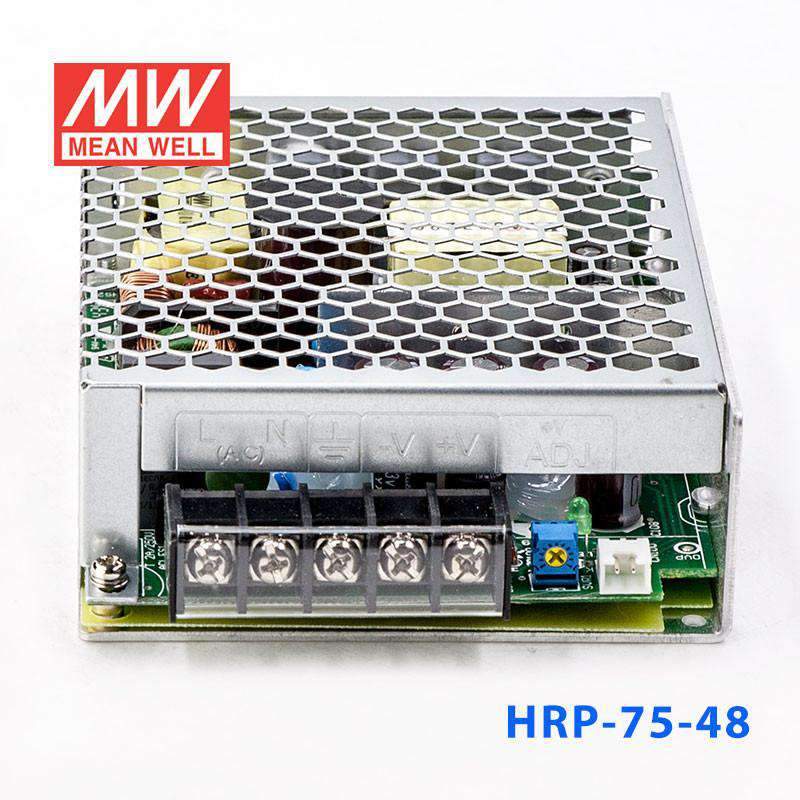

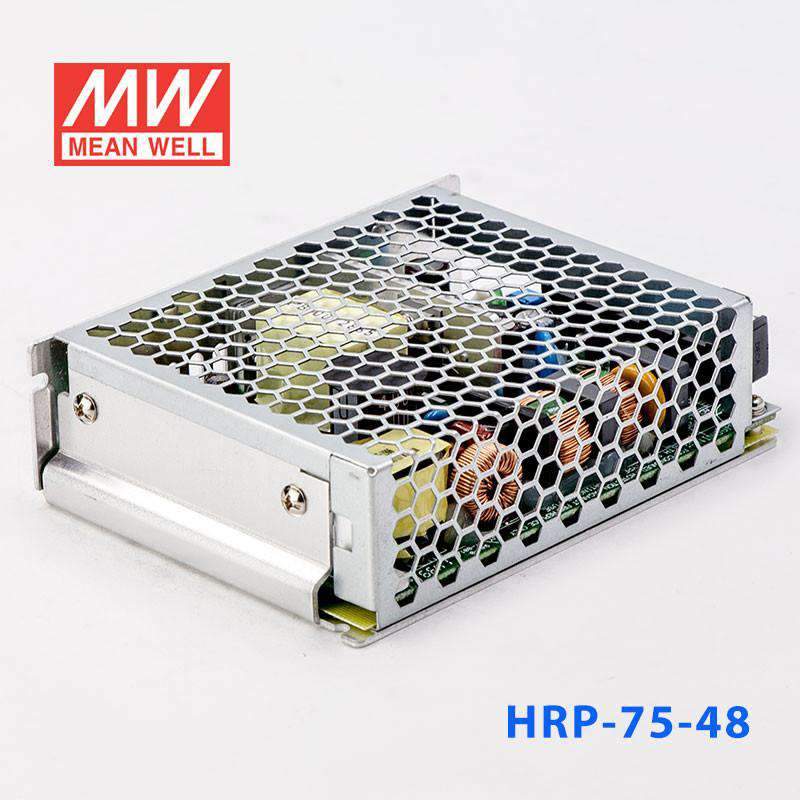

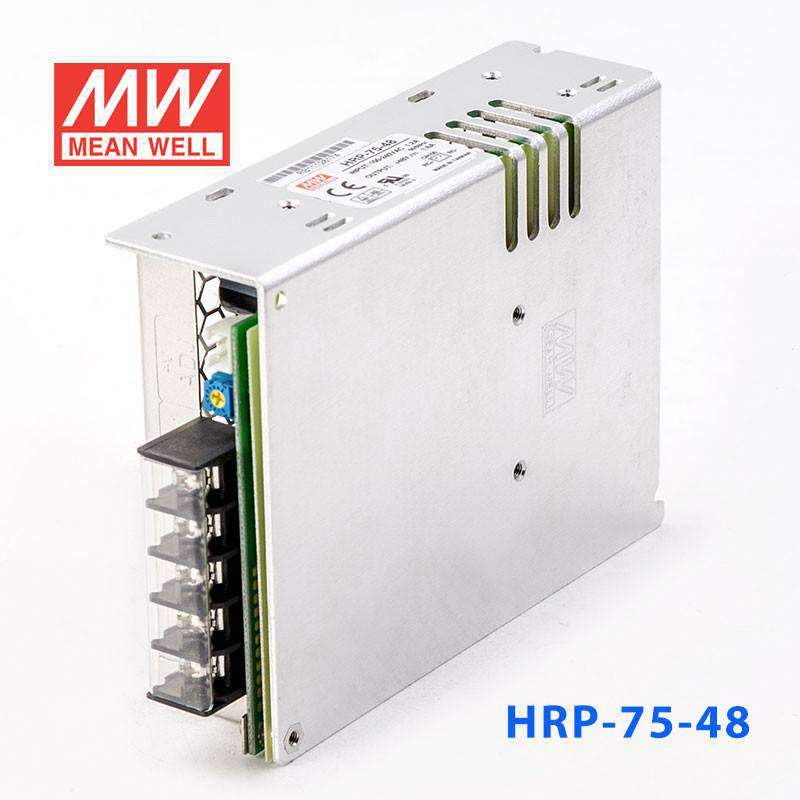

Mean Well HRP-75-48 Power Supply 76.8W 48V
The HRP-75 is a 75W Mean Well power converter (input range: 85~264VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating76.8 Watt
-
Output Voltage48 Volt
-
Rated Current1.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.04 lb
::specification::
Frequently Asked Questions
Can I use the HRP-75-48 for 48V telecom or industrial network equipment?
It is suitable for 48V constant voltage equipment that stays within 1.6A and 76.8W. That makes it a fit for lower-power 48V telecom, communications, or industrial network loads that require a regulated 48V bus.
Is the HRP-75-48 appropriate for a 48V embedded control system?
Yes, if the system is designed for 48V constant voltage input and its total demand does not exceed 76.8W or 1.6A. The 85-264VAC input is also useful where the AC source can vary across different sites.
Can this model be used for small 48V automation loads?
It can support 48V automation devices as long as the combined load remains within 1.6A at 48V. For applications that need more current at 48V, a higher-output sibling such as the 105.6W 2.2A, 158.4W 3.3A, 206.4W 4.3A, 336W 7A, 456W 9.5A, or 624W 13A versions would be the next step up in the same broader series.
How does the HRP-75-48 compare with the other HRP-75 voltage options?
The HRP-75 range includes 3.3V 49.5W 15A, 5V 75W 15A, 7.5V 75W 10A, 12V 75.6W 6.3A, 15V 75W 5A, 24V 76.8W 3.2A, 36V 75.6W 2.1A, and 48V 76.8W 1.6A. The 48V version keeps similar wattage to the 24V and 36V units but offers the highest output voltage and the lowest current in the HRP-75 group.
Can the HRP-75-48 be used in unheated or warm equipment spaces?
The rated operating range is -40°C to +70°C, so it covers very cold and very warm ambient conditions. The provided specs do not list an IP rating, so it should be treated as a protected-location power supply unless enclosure protection is confirmed separately.
