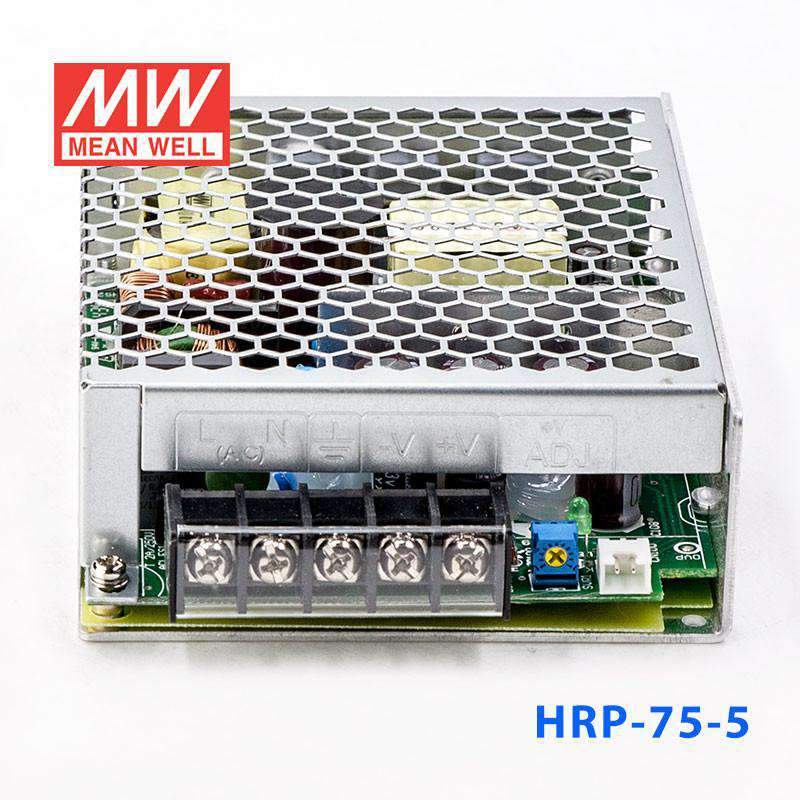

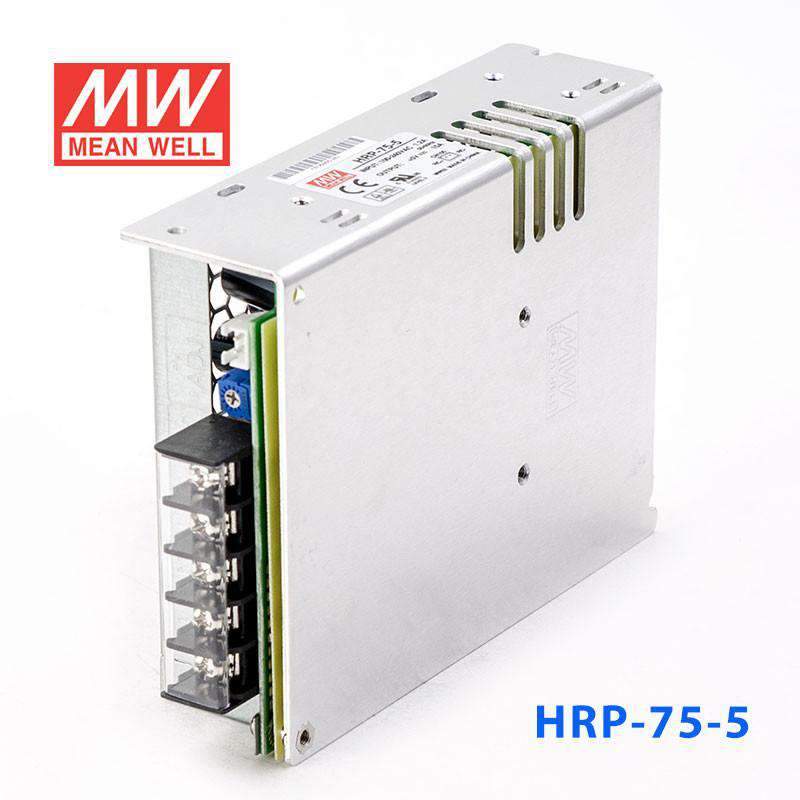

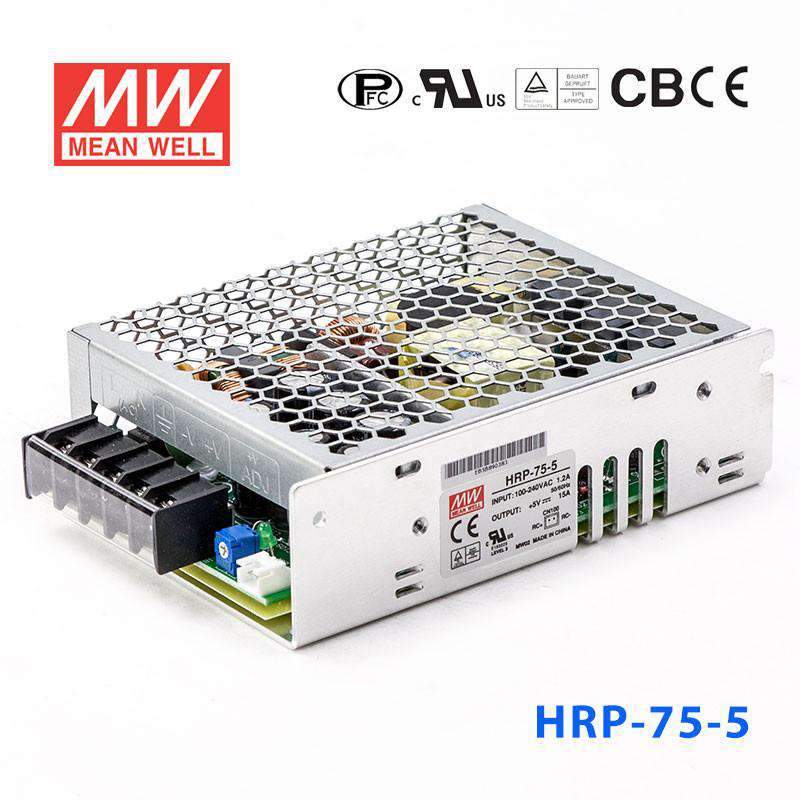

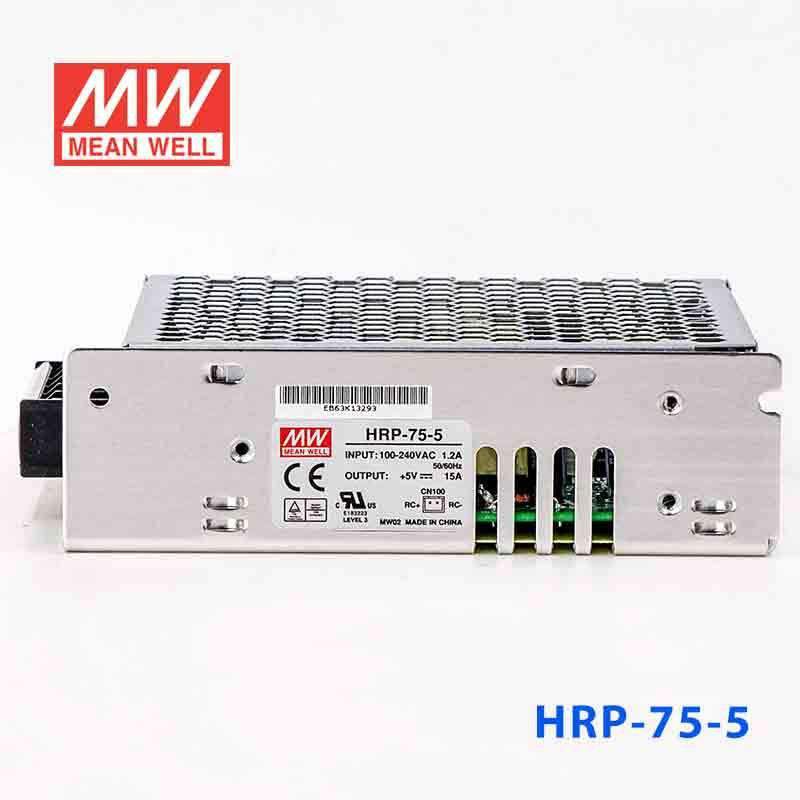

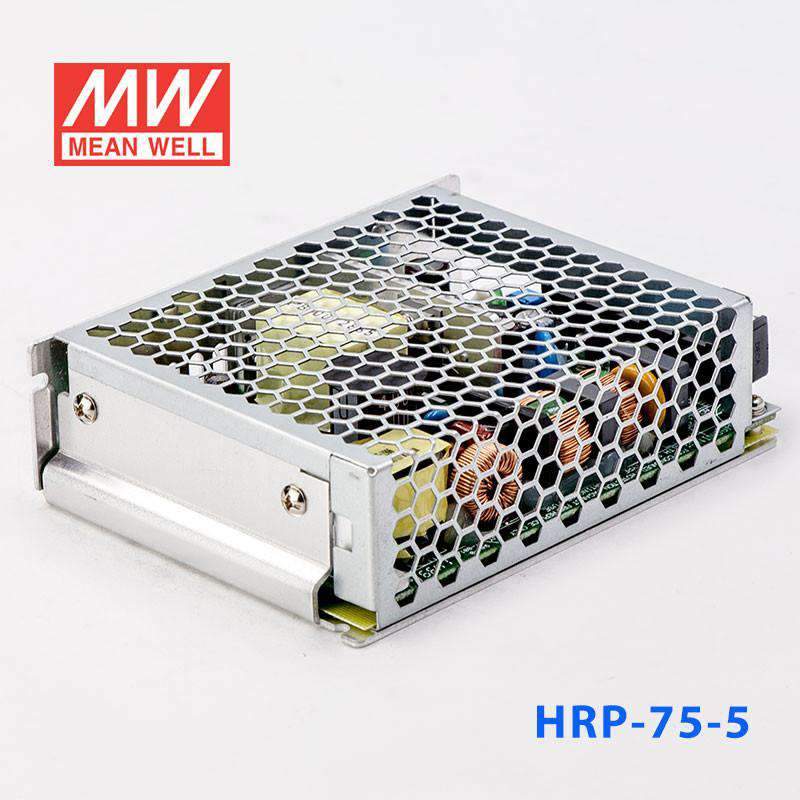

Mean Well HRP-75-5 Power Supply 75W 5V
The HRP-75 is a 75W Mean Well power converter (input range: 85~264VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating75 Watt
-
Output Voltage5 Volt
-
Rated Current15 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.04 lb
::specification::
Frequently Asked Questions
Can I use the HRP-75-5 for 5V industrial logic and controller loads?
Yes, if the equipment requires 5V constant voltage and the total draw stays within 15A and 75W. That makes it suitable for higher-current 5V logic, controller boards, and embedded electronics that need a regulated 5V rail.
Is the HRP-75-5 suitable for 5V embedded computing or test equipment?
It can be a fit for 5V embedded systems, burn-in rigs, or test fixtures that need up to 75W from a constant voltage source. The wide 85-264VAC input also helps in lab or production environments with different AC input standards.
Can this model power multiple 5V industrial peripherals from one supply?
It can support multiple 5V loads when their combined demand remains at or below 15A and 75W. That is often useful for grouped 5V electronics in industrial or automation cabinets where one regulated 5V source is preferred.
How does the HRP-75-5 compare with the other HRP-75 outputs?
The HRP-75 series includes 3.3V 49.5W 15A, 5V 75W 15A, 7.5V 75W 10A, 12V 75.6W 6.3A, 15V 75W 5A, 24V 76.8W 3.2A, 36V 75.6W 2.1A, and 48V 76.8W 1.6A. The 5V model is one of the highest-current versions in the HRP-75 family and is aimed at low-voltage, high-current loads.
Is the HRP-75-5 suitable for outdoor use?
The temperature rating of -40°C to +70°C supports a wide operating range. However, no IP rating is provided in the listed specs, so outdoor exposure should not be assumed without a separate protective enclosure or confirmed ingress rating.
