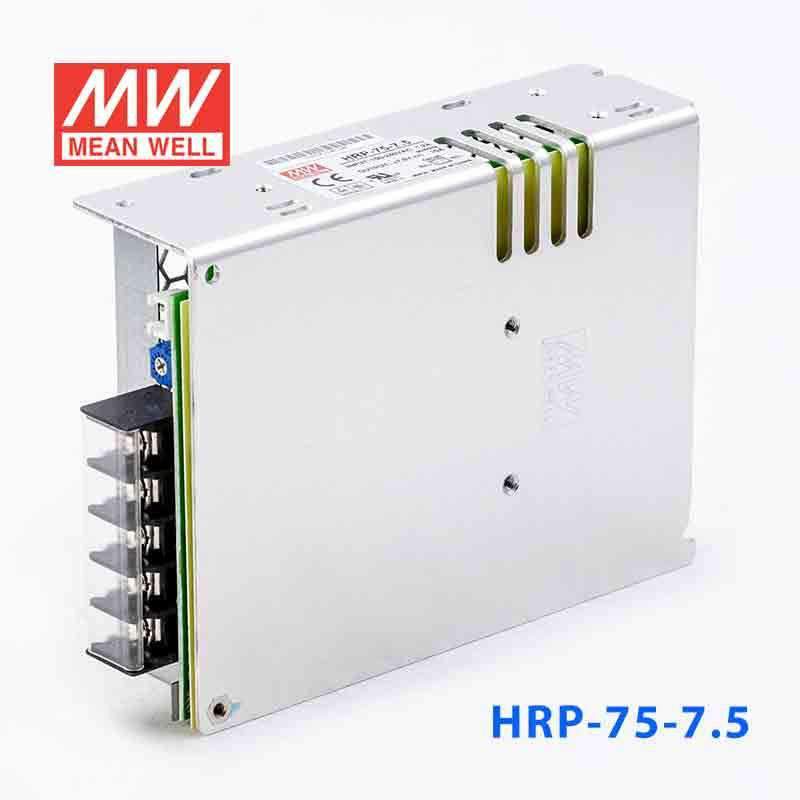

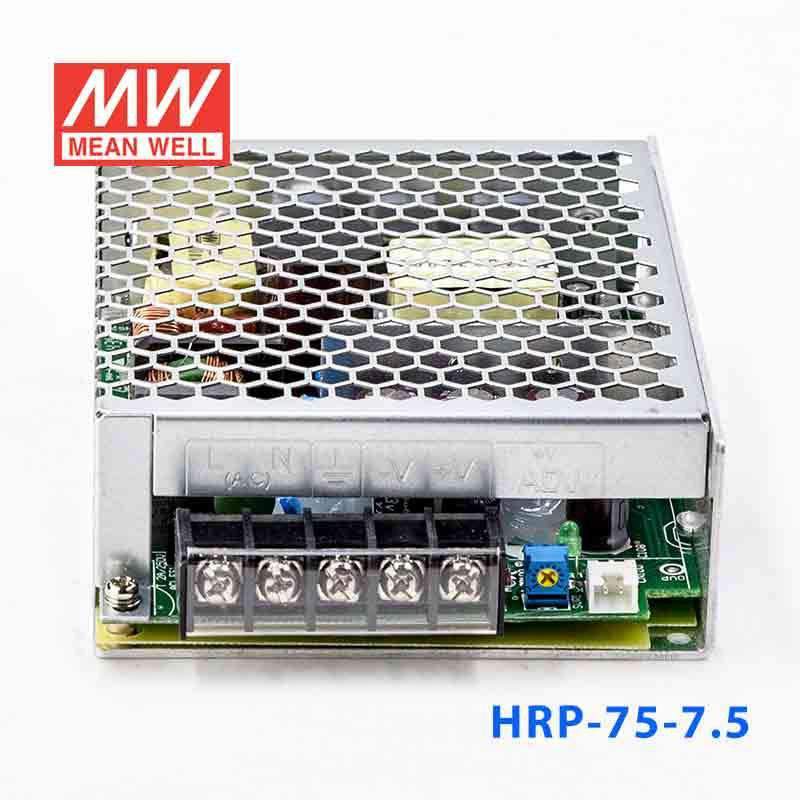

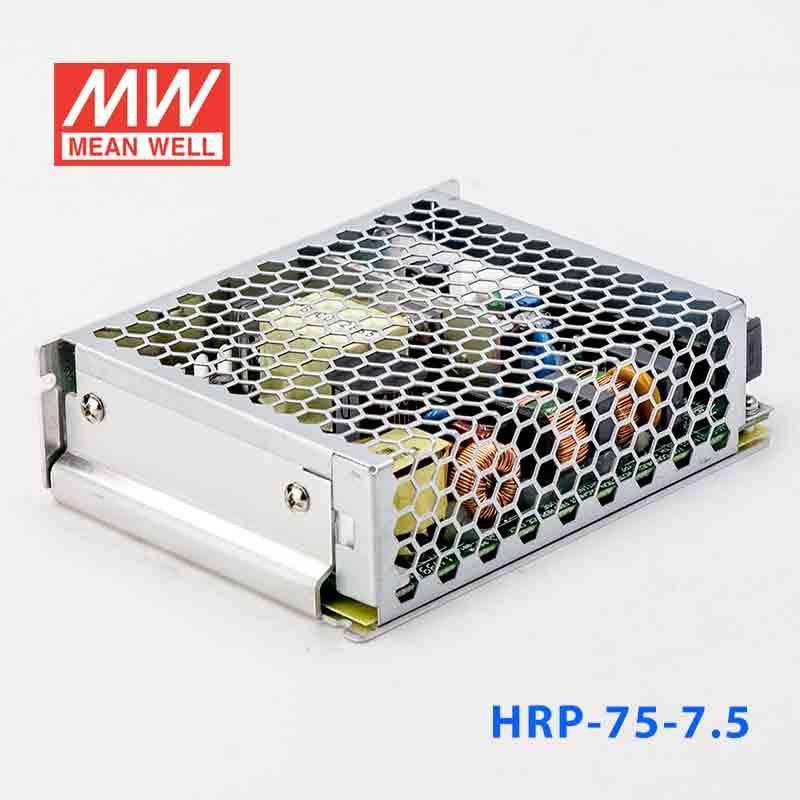

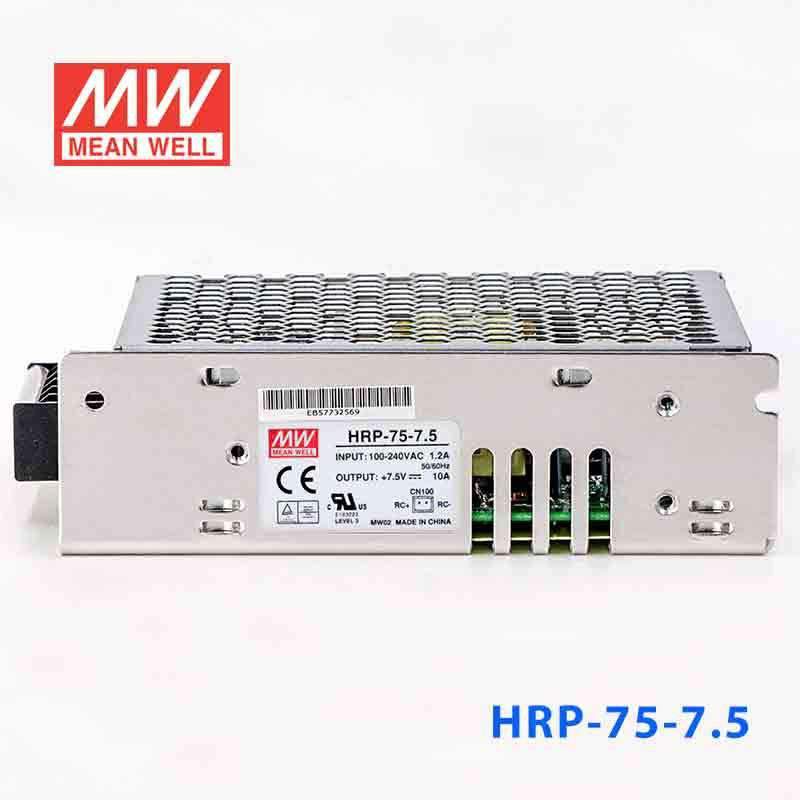

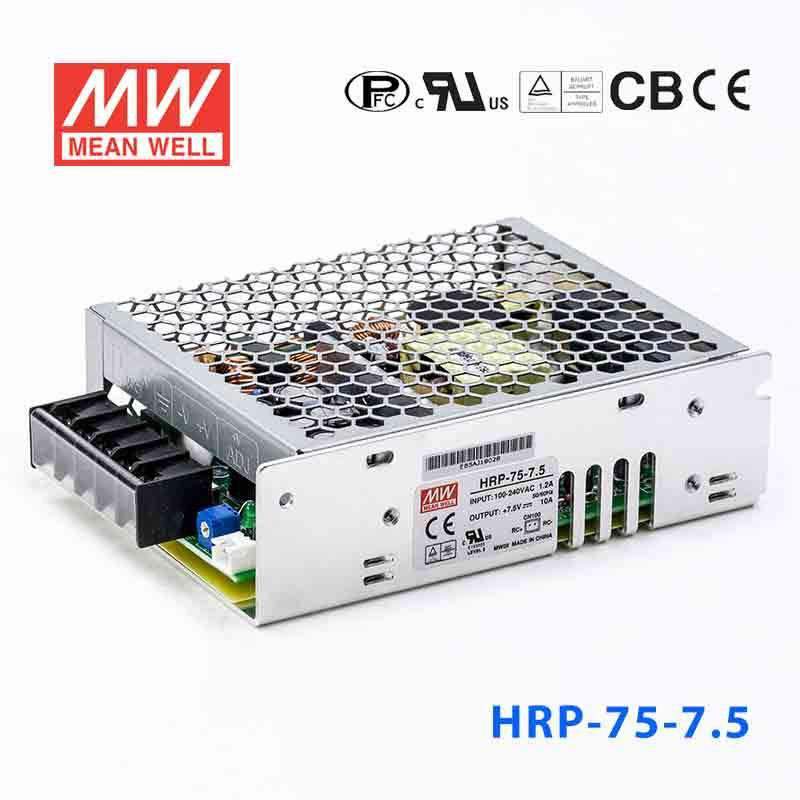

Mean Well HRP-75-7.5 Power Supply 75W 7.5V
The HRP-75 is a 75W Mean Well power converter (input range: 85~264VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: SAFETY & EMC (Note 4)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating75 Watt
-
Output Voltage7.5 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.04 lb
::specification::
Frequently Asked Questions
Can I use the HRP-75-7.5 for 7.5V industrial or embedded electronics?
Yes, if the equipment requires 7.5V constant voltage and the total load stays within 10A and 75W. That suits 7.5V electronics, control boards, or embedded assemblies that need more current than a small plug-in supply can provide.
Is the HRP-75-7.5 a fit for 7.5V instrumentation or bench test systems?
It can be used for instrumentation or test systems that run from a regulated 7.5V rail and need up to 75W. The 85-264VAC input makes it practical in facilities with different AC mains standards.
Can this model support legacy 7.5V automation electronics?
It is appropriate where older or specialized automation electronics call for 7.5V constant voltage and stay below 10A. The -40°C to +70°C operating range can also help in equipment that must tolerate broad ambient conditions.
How does the HRP-75-7.5 compare with the other HRP-75 versions?
The HRP-75 family includes 3.3V 49.5W 15A, 5V 75W 15A, 7.5V 75W 10A, 12V 75.6W 6.3A, 15V 75W 5A, 24V 76.8W 3.2A, 36V 75.6W 2.1A, and 48V 76.8W 1.6A. The 7.5V model sits between the 5V and 12V versions and is mainly chosen when the load specifically requires 7.5V.
Can the HRP-75-7.5 be used in hot or cold protected enclosures?
Its rated operating window is -40°C to +70°C, so the temperature capability is broad. The provided specs do not include an IP rating, so use in exposed outdoor conditions should not be assumed from the temperature range alone.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-75 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-75-5 Power Supply 75W 5V | 75W | 5V | 15A | Indoor | $37.13 | View |
| Mean Well HRP-75-48 Power Supply 76.8W 48V | 76.8W | 48V | 1.6A | Indoor | $43.11 | View |
| Mean Well HRP-75-36 Power Supply 75.6W 36V | 75.6W | 36V | 2.1A | Indoor | $43.11 | View |
| Mean Well HRP-75-3.3 Power Supply 49.5W 3.3V | 49.5W | 3.3V | 15A | Indoor | $43.11 | View |
| Mean Well HRP-75-24 Power Supply 76.8W 24V | 76.8W | 24V | 3.2A | Indoor | $37.52 | View |
| Mean Well HRP-75-15 Power Supply 75W 15V | 75W | 15V | 5A | Indoor | $43.11 | View |
| Mean Well HRP-75-12 Power Supply 75.6W 12V | 75.6W | 12V | 6.3A | Indoor | $43.00 | View |
