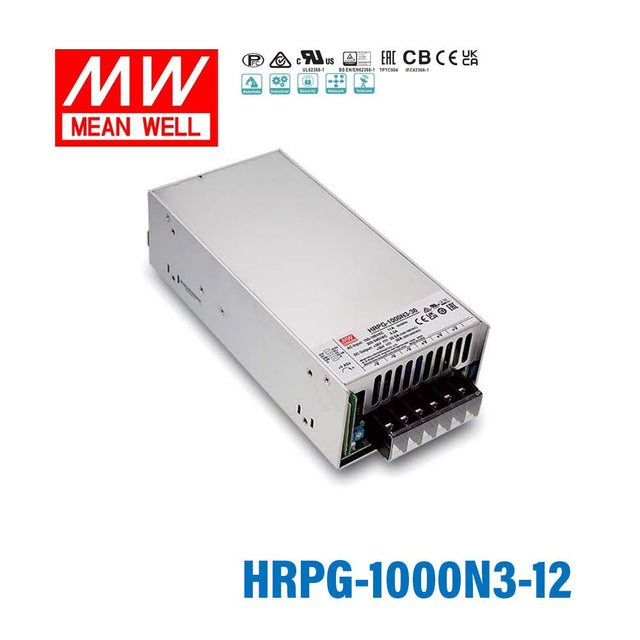

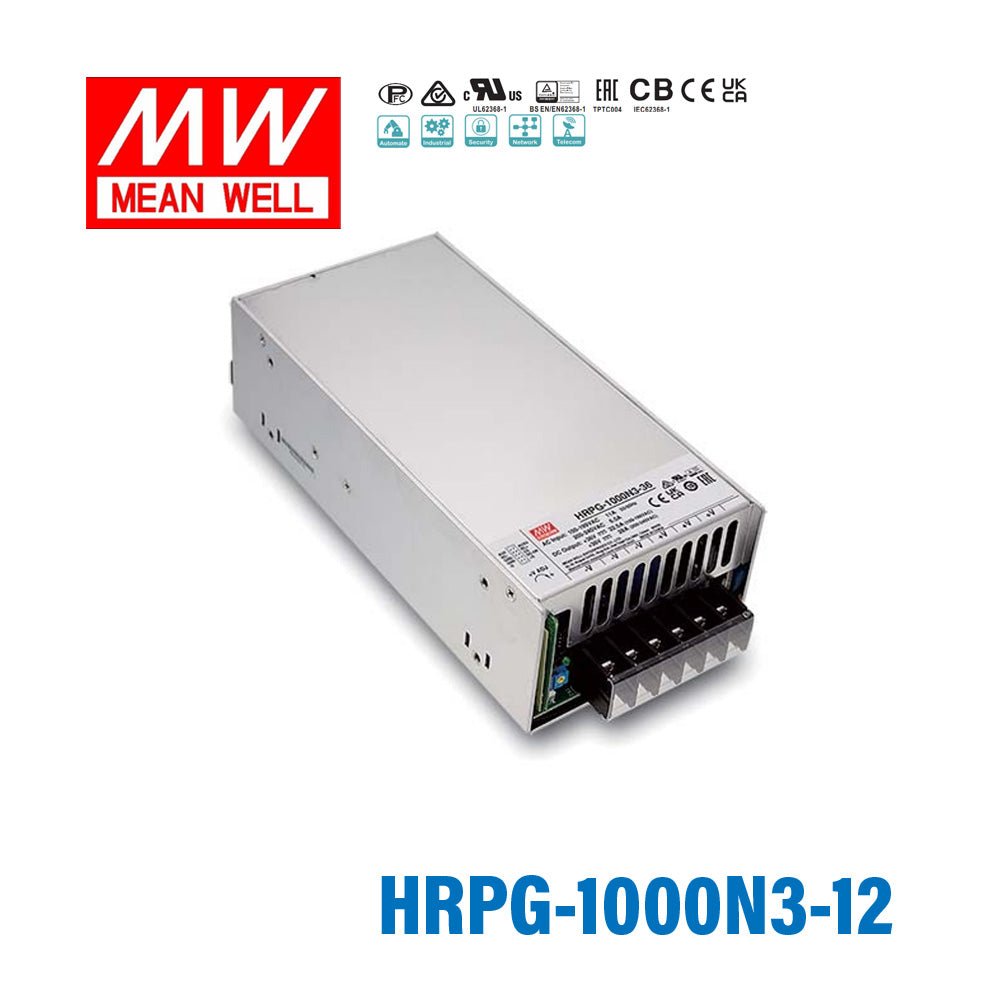

Mean Well HRPG-1000N3-12 Power Supply 960W 12V, 320% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-1000N3-12 Power Supply 960W 12V, 320% peak power model
The HRPG-1000N3 is a 1000W Mean Well DIN rail power converter with a 218mm profile (input range: 90~264VAC).
Key Features
- ✓ 218mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, CAN/CSA C22.2 No. 62368-1 BS EN/ , TUV EN62368-1, AS/NZS62368.1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating1000 Watt
-
Output Voltage12 Volt
-
Rated Current80 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.22 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well HRPG-1000N3-12?
This model provides a 12V DC output with a rated current of 80A. The supplied data lists a 1000W power rating, and the product name identifies it as a 960W 12V model with 320% peak power capability. It also includes active PFC and efficiency up to 94%.
What kinds of applications is the HRPG-1000N3-12 best suited for?
This power supply is aimed at industrial and high-reliability 12V systems that need substantial current capacity and strong transient handling. Its 80A output, 320% peak power capability, DC OK signal, and remote control features make it relevant for demanding B2B equipment and control platforms. It is best matched to equipment designed specifically for 12V DC input.
What makes the HRPG-1000N3-12 different from a more basic enclosed 12V power supply?
Compared with a more basic enclosed PSU, this model stands out with active PFC, efficiency up to 94%, and the ability to withstand a 300VAC surge input for 5 seconds. It also adds 320% peak power capability, current sharing support up to 4000W in a 3+1 setup, remote ON-OFF control, remote sense, and a built-in DC OK signal. Those features make it more suitable for higher-demand industrial use cases.
Can this model support systems that need higher total power or parallel power architecture?
Yes. The product data states current sharing up to 4000W in a 3+1 configuration, which makes it relevant for higher-power systems that use multiple supplies together. It also includes a built-in DC OK signal and remote ON-OFF control, which are useful features in monitored or managed power designs.
Is the HRPG-1000N3-12 suitable for demanding temperature conditions?
The listed operating temperature range is -40°C to 70°C, which supports use across a wide range of industrial environments. The unit also uses a built-in cooling fan with ON-OFF control to help manage thermal performance. Buyers should still confirm that the surrounding enclosure and system conditions stay within the product's rated limits.
Is this a good choice for 12V loads with short-term peak demand?
It can be a strong fit when the equipment requires 12V DC and experiences brief peak demand, because this model is specifically described as having up to 320% peak power capability. That differentiates it from standard fixed-output supplies that are sized mainly around continuous load. The load still needs to be compatible with the unit's 12V output and 80A rated current.
What protection and support features are built into this power supply?
This model includes short circuit, overload, over voltage, and over temperature protection. It also provides remote sense, a DC OK signal, remote ON-OFF control, and a 5V standby output rated at 0.3A. Those features help support monitored industrial systems where status signaling and control are important.
