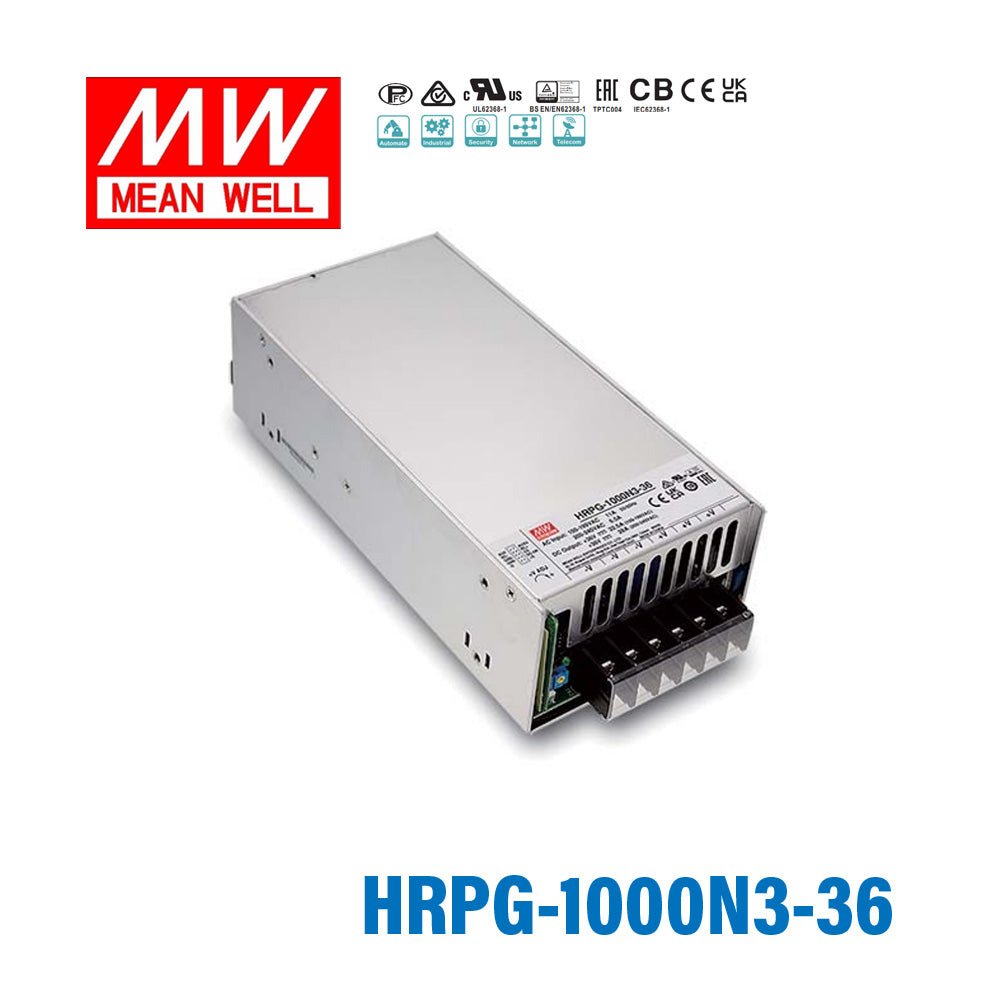

Mean Well HRPG-1000N3-36 Power Supply 960W 36V, 320% peak power model
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-1000N3-36 Power Supply 960W 36V, 320% peak power model
The HRPG-1000N3 is a 1000W Mean Well DIN rail power converter with a 218mm profile (input range: 90~264VAC).
Key Features
- ✓ 218mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, CAN/CSA C22.2 No. 62368-1 BS EN/ , TUV EN62368-1, AS/NZS62368.1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating1000 Watt
-
Output Voltage28 Volt
-
Rated Current28 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.42 in
-
Weight3.22 lb
::specification::
Frequently Asked Questions
What applications is the Mean Well HRPG-1000N3-36 best suited for?
This model is aimed at industrial and high-reliability equipment that needs a high-power enclosed AC-DC supply with strong transient headroom. Its 960W class output, active PFC, and 320% peak power capability make it a fit for systems with demanding startup or short-duration surge loads.
What makes the HRPG-1000N3-36 different from a standard 1000W enclosed power supply?
A key differentiator is its peak power capability of up to 320%, which is intended for loads that draw much higher power briefly than they do in steady operation. It also includes features often expected in industrial systems, such as DC OK signal output, remote ON-OFF control, remote sense, and current sharing up to 4000W in a 3+1 setup.
Is the HRPG-1000N3-36 suitable for harsh industrial input conditions?
Yes. It supports universal AC input and is specified to withstand a 300VAC surge input for 5 seconds, which is useful in electrically noisy or unstable industrial environments. The unit also includes built-in active PFC with a power factor above 0.95.
Can this power supply be used in higher-temperature environments?
The listed operating temperature range is -40°C to 70°C, which supports use across a wide range of industrial conditions. It also includes over-temperature protection and a built-in cooling fan with ON-OFF control to help manage thermal load.
Does the HRPG-1000N3-36 support system monitoring or power redundancy features?
Yes. This model includes a built-in DC OK signal for status monitoring and supports current sharing up to 4000W in a 3+1 configuration. Those features are useful in systems that need power status visibility or scalable higher-power architectures.
What protection features are included on the HRPG-1000N3-36?
The HRPG-1000N3-36 includes protection for short circuit, overload, over voltage, and over temperature. These built-in safeguards are important for industrial applications where load conditions can vary or fault tolerance matters.
What efficiency and standby characteristics does this model offer?
This power supply is specified for efficiency up to 94%, which helps reduce wasted energy and heat in continuous-duty use. It also lists no-load power consumption below 0.85W and provides a 5V standby output rated at 0.3A.
What warranty is offered for the Mean Well HRPG-1000N3-36?
This model carries a 5-year warranty. That longer warranty period is consistent with its positioning as a high-reliability enclosed power supply for industrial applications.
