Mean Well HRPG-450-15 Power Supply 450W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours

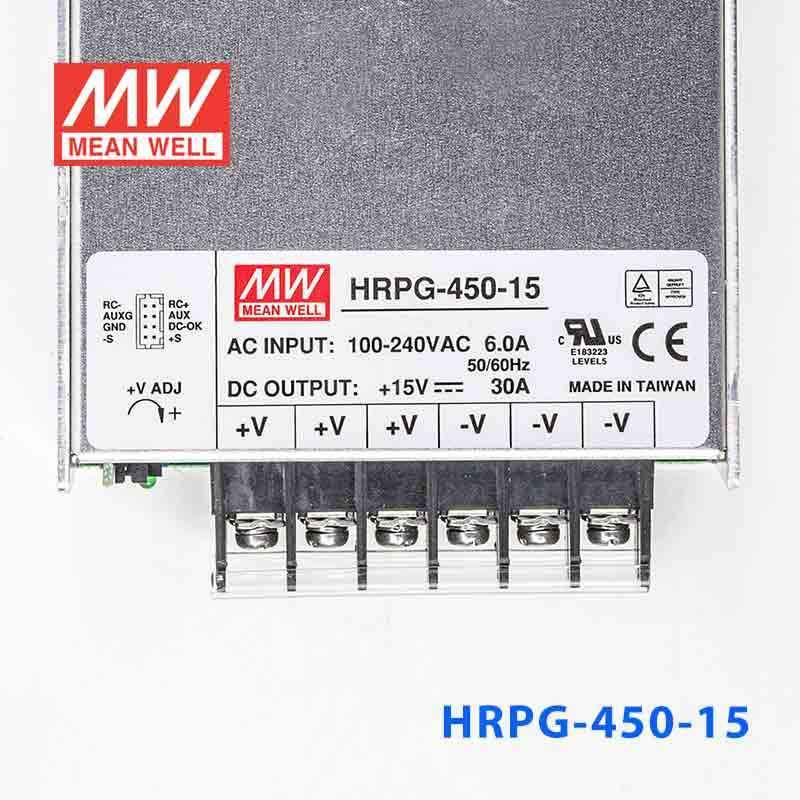

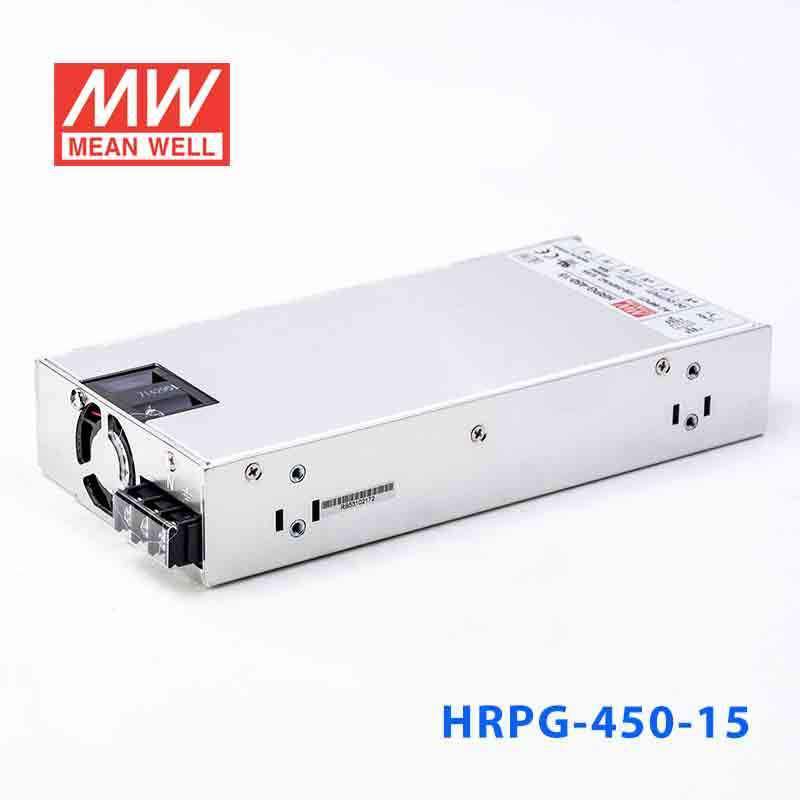

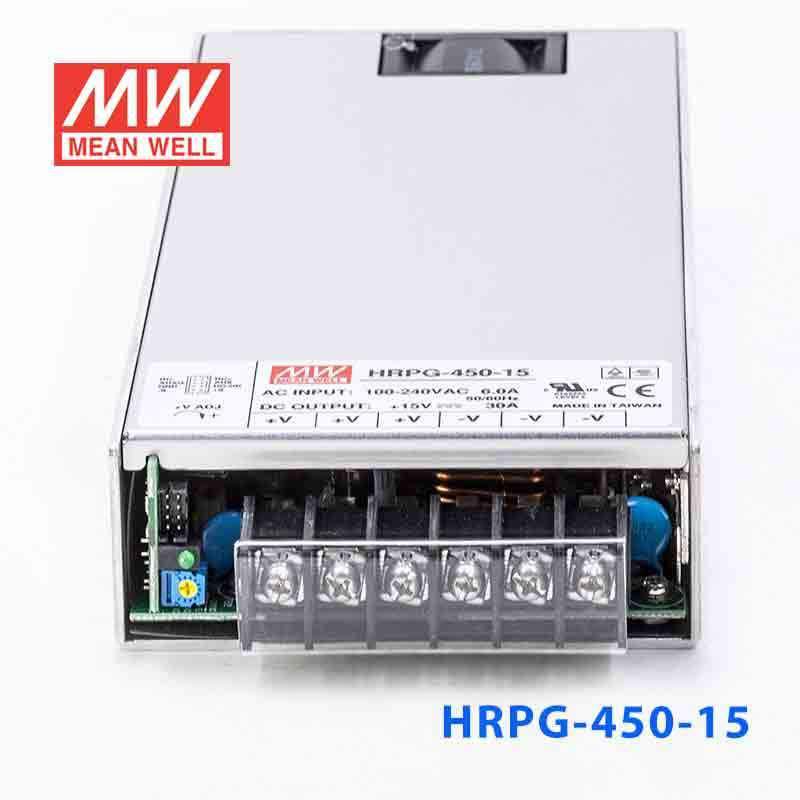

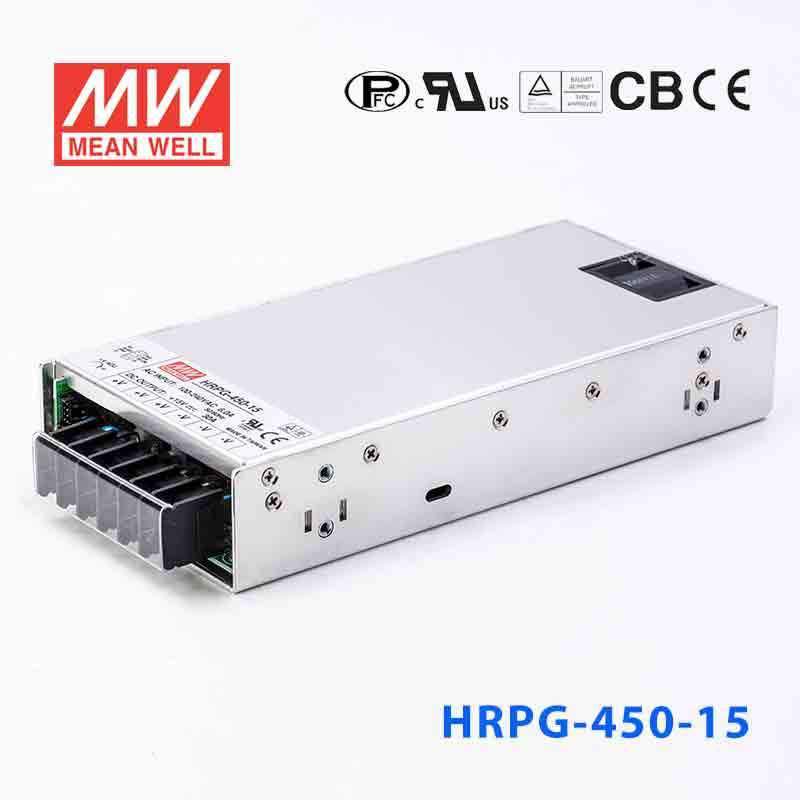

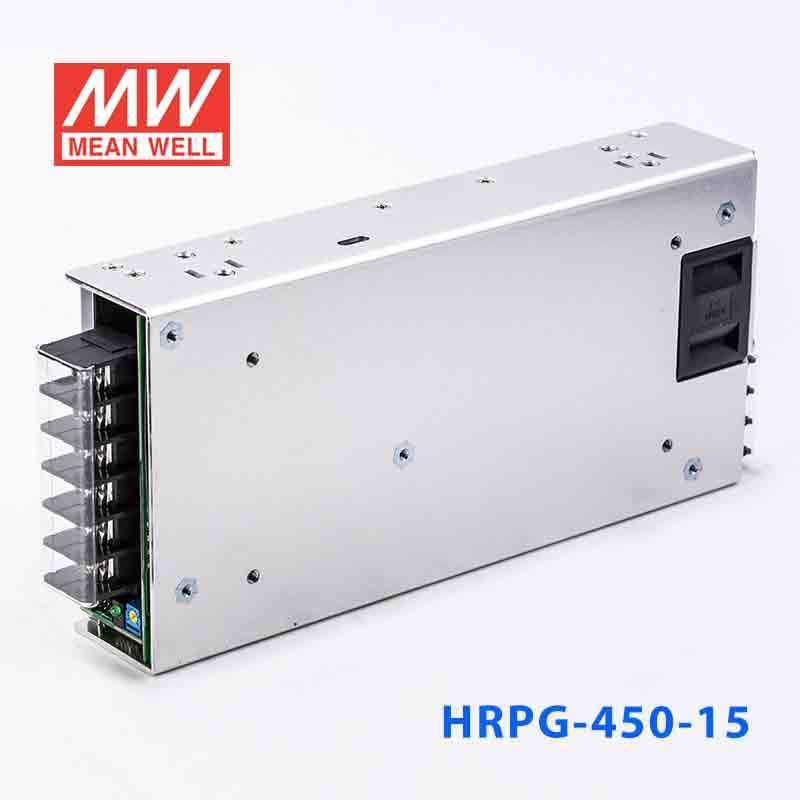

Mean Well HRPG-450-15 Power Supply 450W 15V
The HRPG-450 is a 450W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating450 Watt
-
Output Voltage15 Volt
-
Rated Current30 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.62 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-450-15 for a 15V industrial control system?
This unit delivers a constant-voltage 15V output rated for 450W and up to 30A, so it fits 15V control systems that need substantial DC capacity. Its 85-264VAC input range supports operation from a wide AC input span.
Is the HRPG-450-15 appropriate for centralized 15V embedded equipment?
It can be used for 15V embedded equipment when the total demand remains within 450W and 30A. The constant-voltage mode makes it suitable for electronics that require a regulated 15V DC source.
Can this model support 15V automation loads with higher power demand than smaller HRPG units?
Yes, the HRPG-450-15 provides 450W at 15V and 30A, compared with the HRPG-300-15 at 330W and 22A and the HRPG-200-15 at 201W and 13.4A. It is the higher-capacity 15V option for systems that need more current headroom within the same series.
Is the HRPG-450-15 suitable for harsh indoor environments or exposed outdoor use?
The specified operating range is -40°C to +70°C, which supports use across demanding temperature conditions. However, no IP rating is listed in the provided specs, so the product data does not classify it as an outdoor-rated enclosure.
What are the main HRPG-450 alternatives to the HRPG-450-15?
The HRPG-450 family includes HRPG-450-3.3 at 297W, 3.3V, 90A; HRPG-450-5 at 450W, 5V, 90A; HRPG-450-7.5 at 450W, 7.5V, 60A; HRPG-450-12 at 450W, 12V, 37.5A; HRPG-450-15 at 450W, 15V, 30A; HRPG-450-24 at 451.2W, 24V, 18.8A; HRPG-450-36 at 450W, 36V, 12.5A; and HRPG-450-48 at 456W, 48V, 9.5A. This version is the 15V, 30A member of that range.
