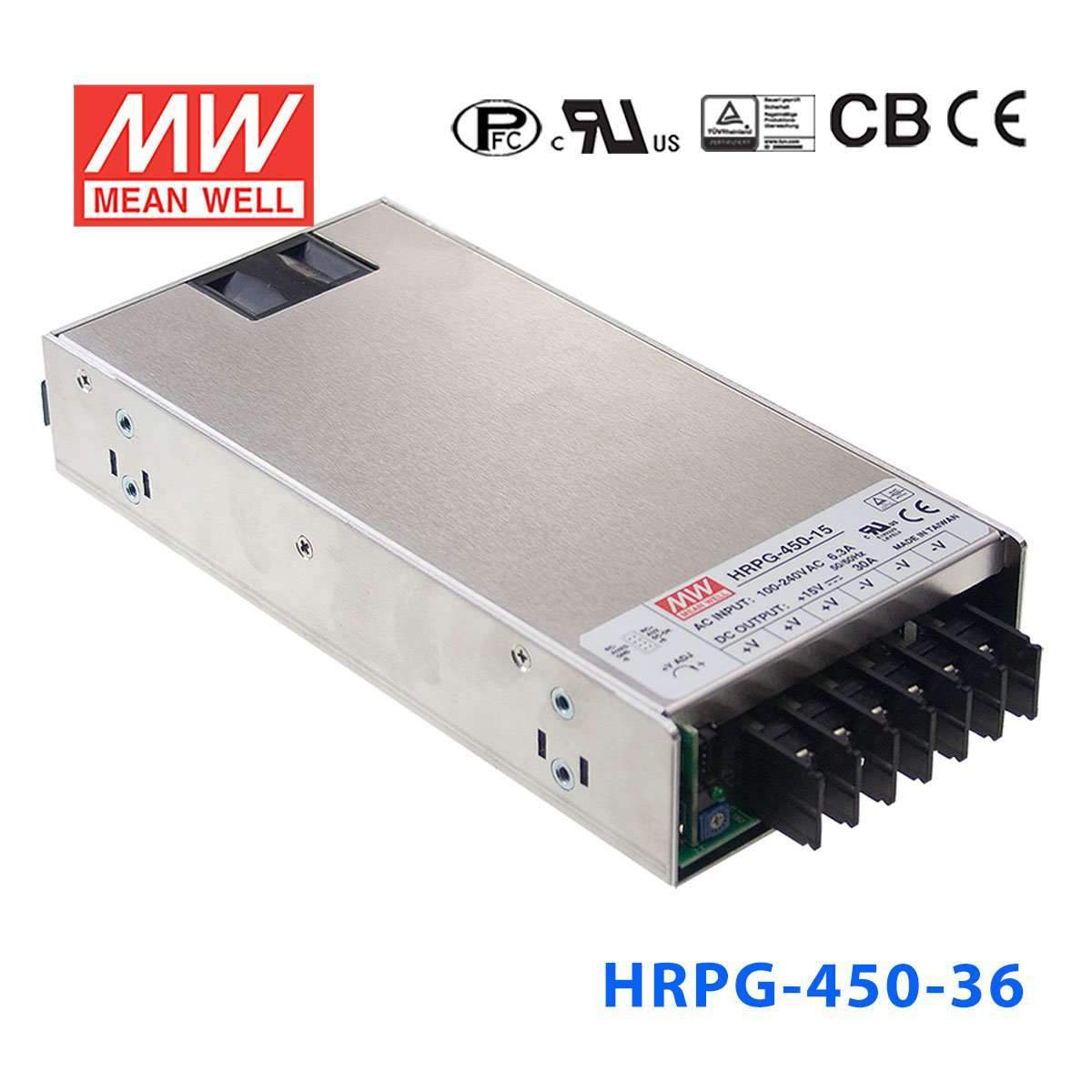

Mean Well HRPG-450-36 Power Supply 450W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-450-36 Power Supply 450W 36V
The HRPG-450 is a 450W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating450 Watt
-
Output Voltage36 Volt
-
Rated Current12.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.62 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-450-36 for 36V industrial automation equipment?
Yes, if the equipment requires a constant 36V DC input and stays within 12.5A. This model delivers 450W at 36V, which suits automation and industrial devices built around a 36V bus.
Is the HRPG-450-36 suitable for 36V motor control or actuator systems that need a fixed DC supply?
It can be used where the system is specified for a constant voltage 36V source and the total draw does not exceed 12.5A or 450W. Buyers should match it to equipment that explicitly calls for 36V input rather than a lower-voltage supply.
Would this model work for 36V control cabinets or industrial test stations?
It is a practical option for enclosed control or test equipment that runs on a 36V rail, because it provides 450W in a 1U low profile chassis. The 218.0 × 105.0 × 41.0 mm size can also help when panel or rack space is limited.
Can the HRPG-450-36 be used in cold or hot industrial locations?
The operating temperature range is -40°C to +70°C, so the published specs support both cold-start and high-heat environments within that range. Since no IP rating is provided, the listing does not establish direct outdoor or exposed-enclosure suitability on its own.
What are the differences between the HRPG-450-36 and the other HRPG-450 power supplies?
The HRPG-450 family includes HRPG-450-3.3 at 297W, 3.3V, 90A; HRPG-450-5 at 450W, 5V, 90A; HRPG-450-7.5 at 450W, 7.5V, 60A; HRPG-450-12 at 450W, 12V, 37.5A; HRPG-450-15 at 450W, 15V, 30A; HRPG-450-24 at 451.2W, 24V, 18.8A; HRPG-450-36 at 450W, 36V, 12.5A; and HRPG-450-48 at 456W, 48V, 9.5A. The series is differentiated by output voltage and current, with small differences in rated wattage between some models.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRPG-450 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRPG-450-7.5 Power Supply 450W 7.5V | 450W | 7.5V | 60A | Indoor | $162.39 | View |
| Mean Well HRPG-450-5 Power Supply 450W 5V | 450W | 5V | 90A | Indoor | $162.39 | View |
| Mean Well HRPG-450-48 Power Supply 456W 48V | 456W | 48V | 9.5A | Indoor | $150.87 | View |
| Mean Well HRPG-450-3.3 Power Supply 297W 3.3V | 297W | 3.3V | 90A | Indoor | $162.39 | View |
| Mean Well HRPG-450-24 Power Supply 451.2W 24V | 451.2W | 24V | 18.8A | Indoor | $161.70 | View |
| Mean Well HRPG-450-15 Power Supply 450W 15V | 450W | 15V | 30A | Indoor | $162.39 | View |
| Mean Well HRPG-450-12 Power Supply 450W 12V | 450W | 12V | 37.5A | Indoor | $162.39 | View |
