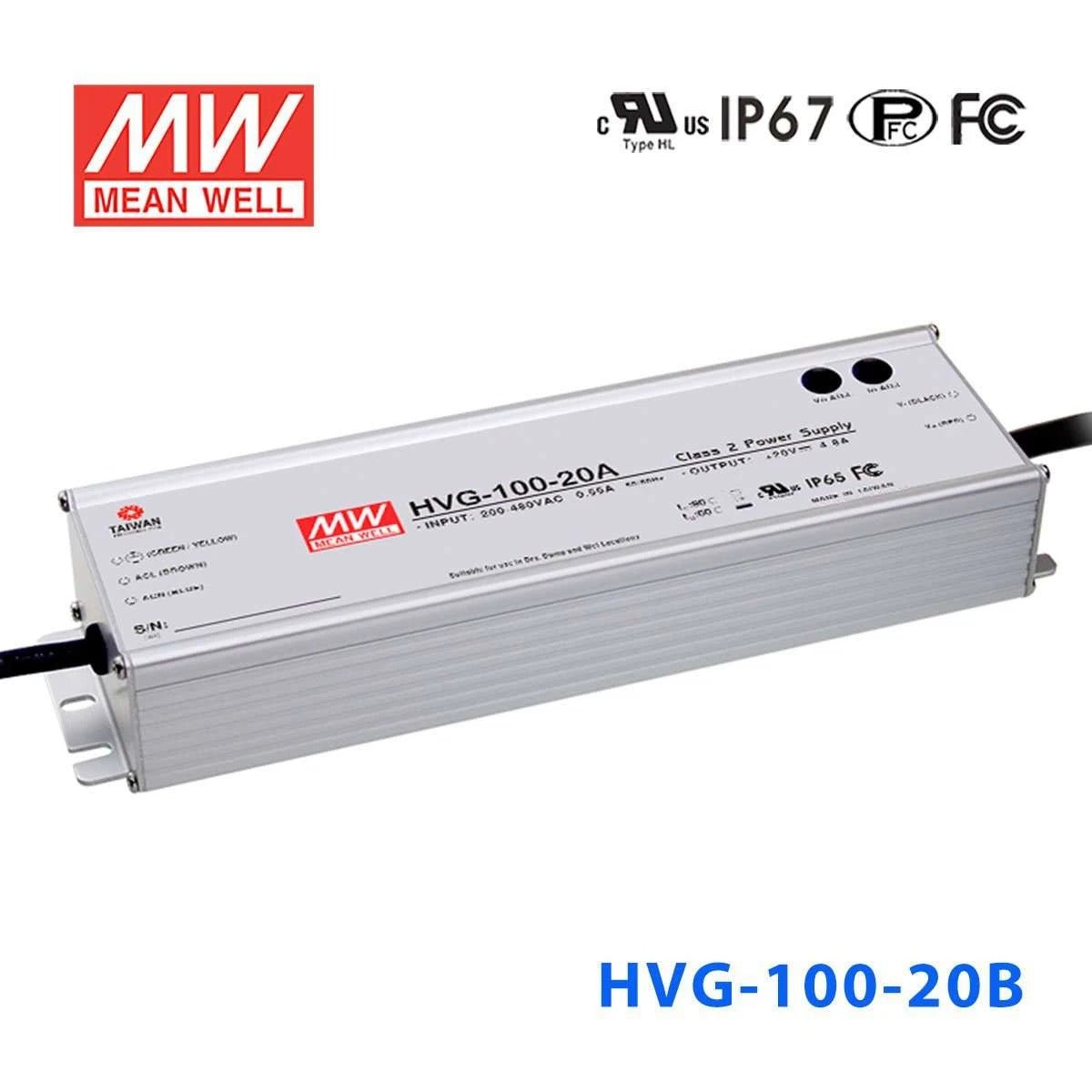

Mean Well HVG-100-20AB Power Supply 100W 20V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-100-20AB Power Supply 100W 20V - Adjustable and Dimmable
The HVG-100 is a 100W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating96 Watt
-
Output Voltage20 Volt
-
Rated Current4.8 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.29 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the HVG-100-20AB for 20V LED strip lighting on a building exterior?
It can be used for 20V LED lighting loads up to 96W and 4.8A. Because it is rated IP65 water-resistant, it is better suited to covered exterior locations or places exposed to spray rather than fully waterproof applications.
Is this driver appropriate for 20V signage lighting that needs a weather-resistant enclosure?
Yes, for 20V sign lighting loads that fit within the 96W and 4.8A limits. The aluminium casing and IP65 rating make it a practical choice for signage where the driver may face dust or rain exposure.
Can the HVG-100-20AB be used for 20V decorative or accent lighting systems?
It is intended for loads in a 10-20V constant current range, with a maximum output of 96W and 4.8A. That makes it suitable for 20V decorative or accent lighting products that match those electrical limits.
What length of 20V LED strip can this model support?
The sizing formula is maximum length = 96W ÷ strip watts per meter. You should also confirm the strip stays within the 4.8A output limit, and check your strip rated power per meter before choosing a run length.
Can the HVG-100-20AB be used in wet or washdown locations?
This model is IP65 water-resistant, so it is intended for environments with dust and water spray rather than full waterproof exposure. If the location is more exposed to water, an IP67 version in the series is the closer fit.
