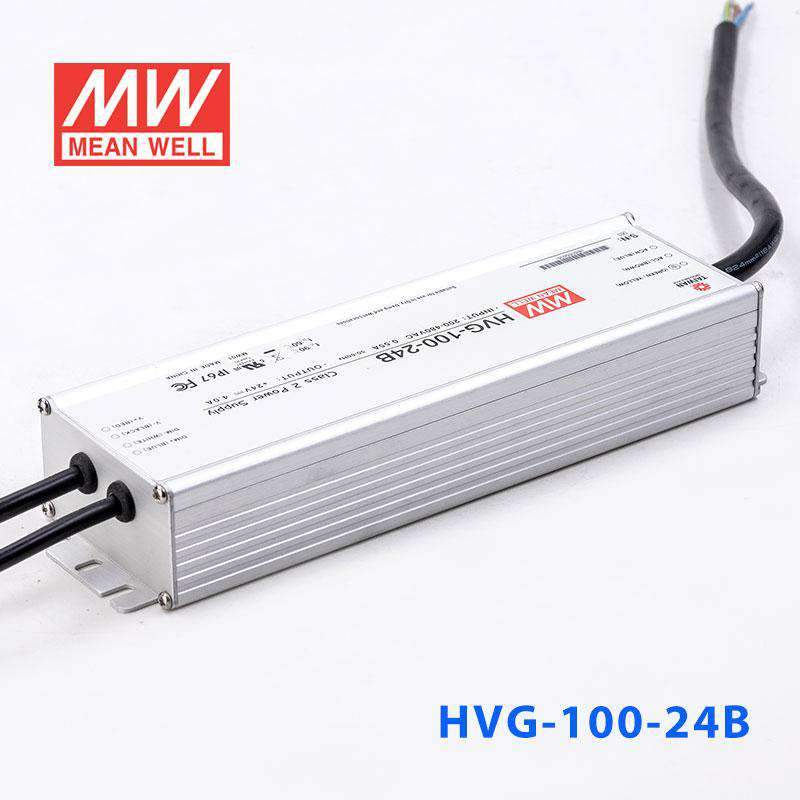

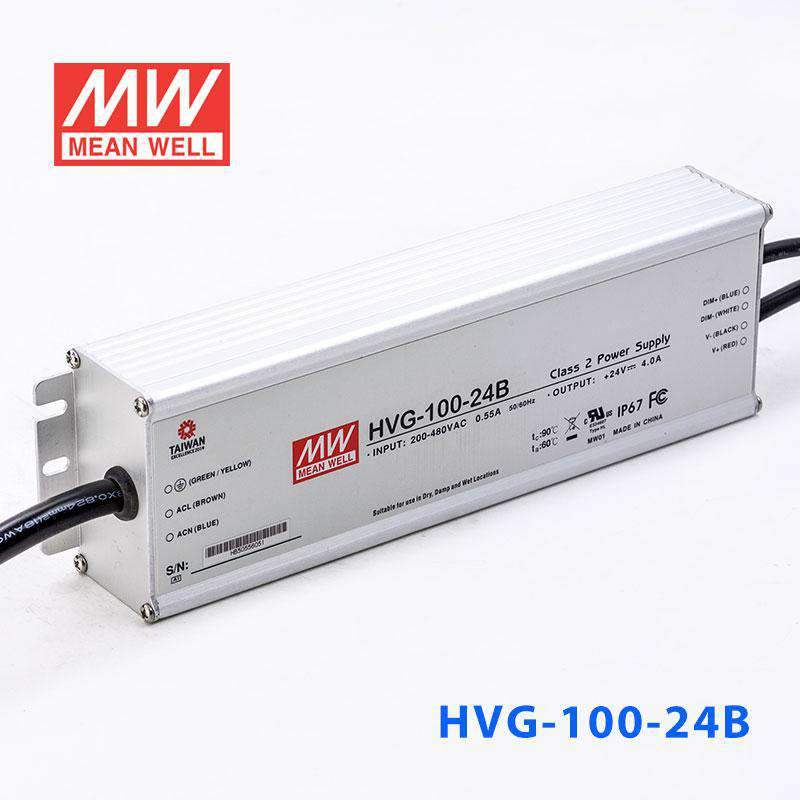

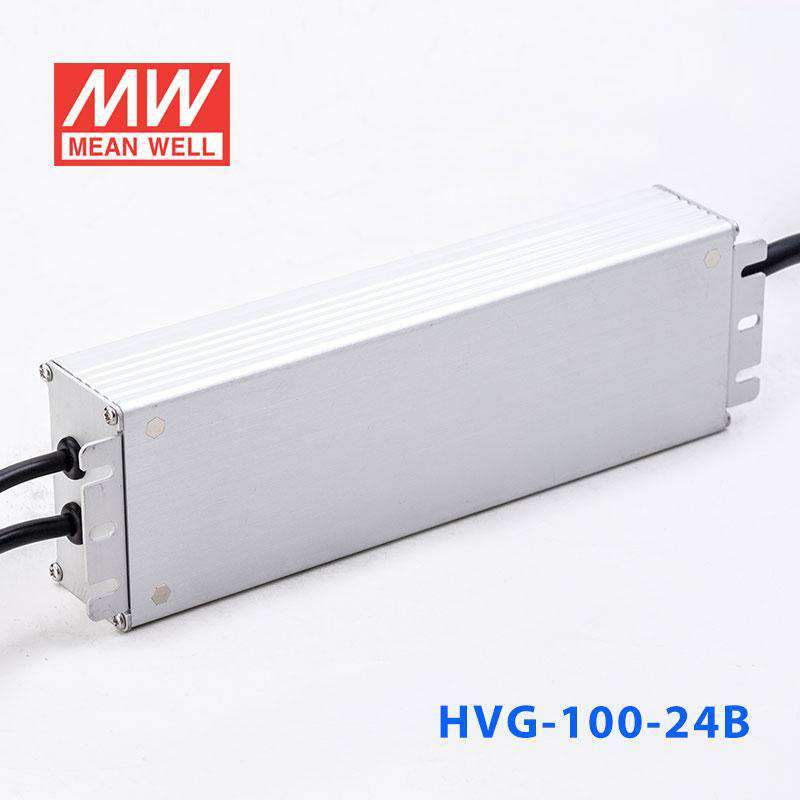

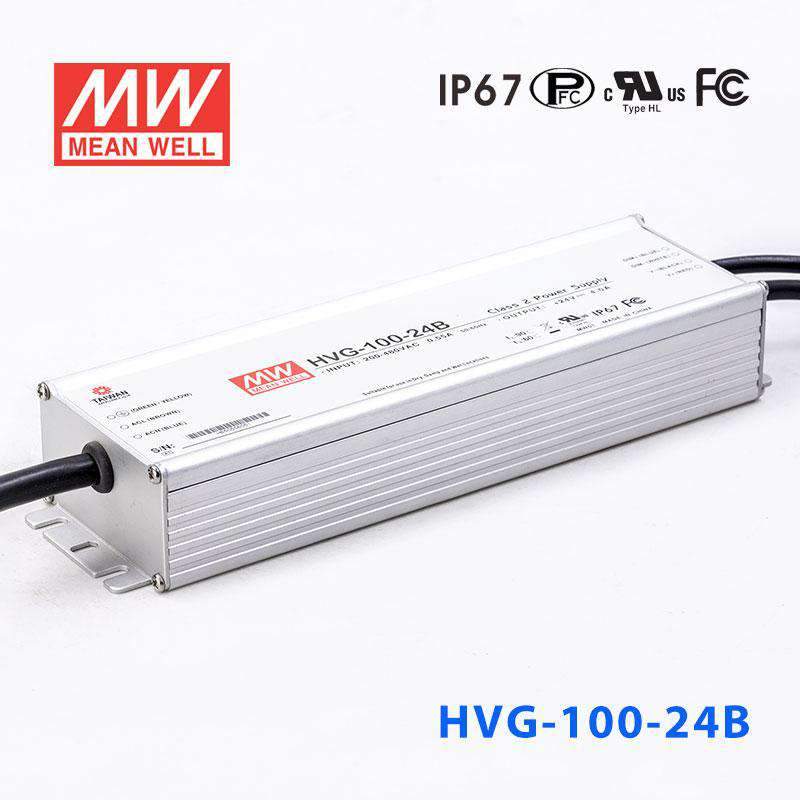

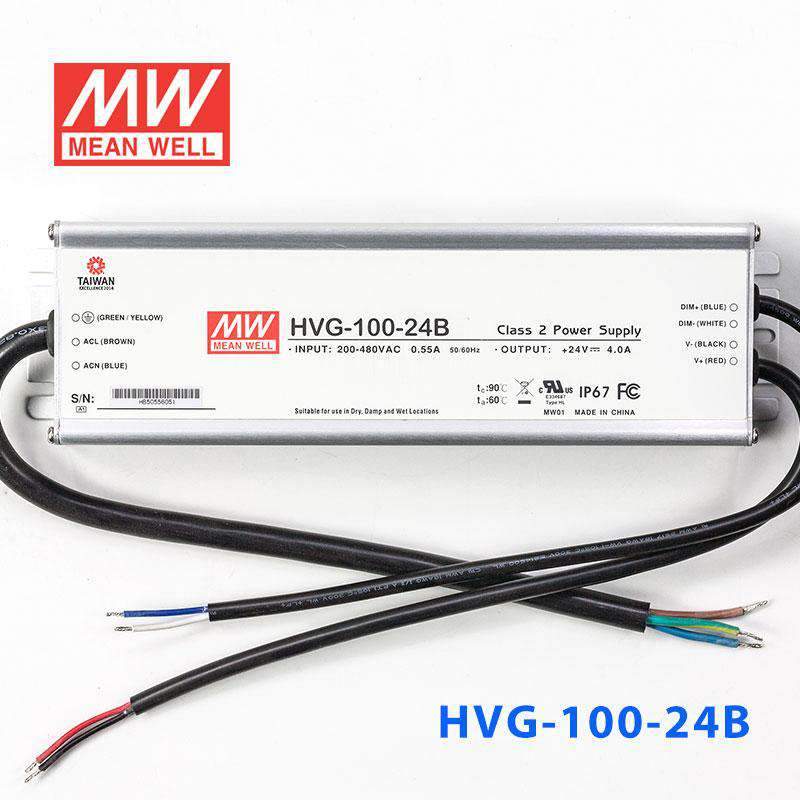

Mean Well HVG-100-24B Power Supply 100W 24V - Dimmable
The HVG-100 is a 100W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.29 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the HVG-100-24B for 24V LED strip lighting around outdoor signs?
Yes, it is a 24V unit with 96W maximum output, so it can support 24V LED strip loads used around sign cabinets or perimeter lighting. Its IP67 waterproof rating makes it better suited for wet outdoor conditions than a water-resistant-only model.
Is the HVG-100-24B a good fit for 24V landscape or exterior accent lighting?
It can be used for 24V exterior accent lighting where the total load stays within 96W and 4A. With IP67 waterproof protection and an operating temperature range of -40°C to +90°C, it is intended for demanding indoor or outdoor environments.
Can this model power 24V LED strips for wet-location architectural lighting?
Yes, for 24V strip-based lighting in wet locations, this model is appropriate if the connected load does not exceed 96W. The IP67 waterproof enclosure is the key spec for applications exposed to rain or washdown conditions.
How do I estimate the LED strip length this 24V driver can support?
The sizing formula is 96W divided by the strip wattage per meter. That gives the maximum theoretical strip length, but you should always check your strip rated power per meter and keep the total load within 96W and 4A.
Is the HVG-100-24B suitable for fully outdoor or wet environments?
This model is rated IP67 waterproof, so it is designed for outdoor and wet-location use where stronger ingress protection is needed. It also operates across -40°C to +90°C, which supports use in very hot or very cold conditions within that stated range.
