Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

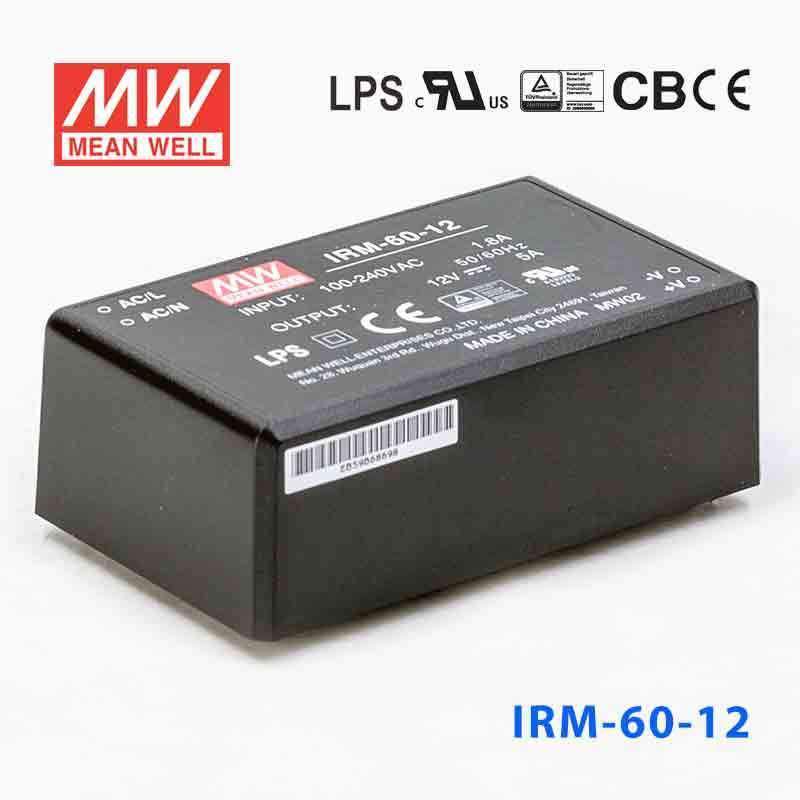

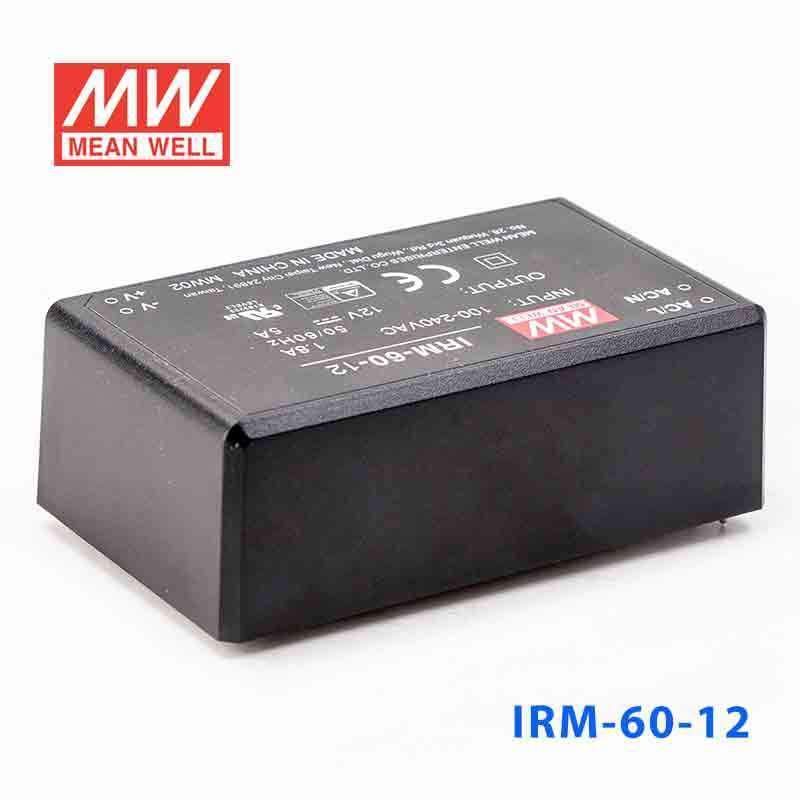

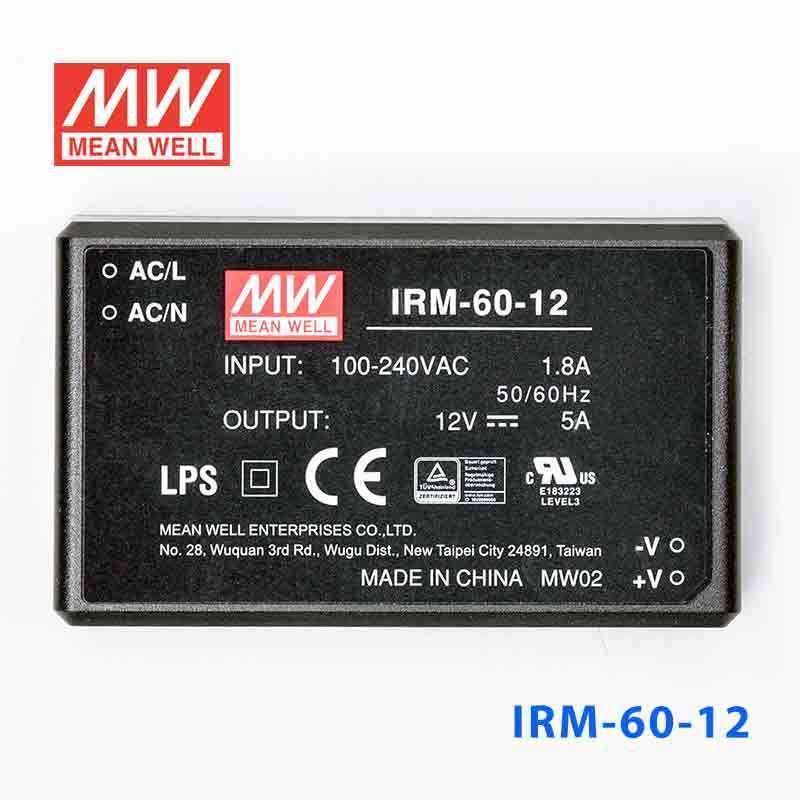

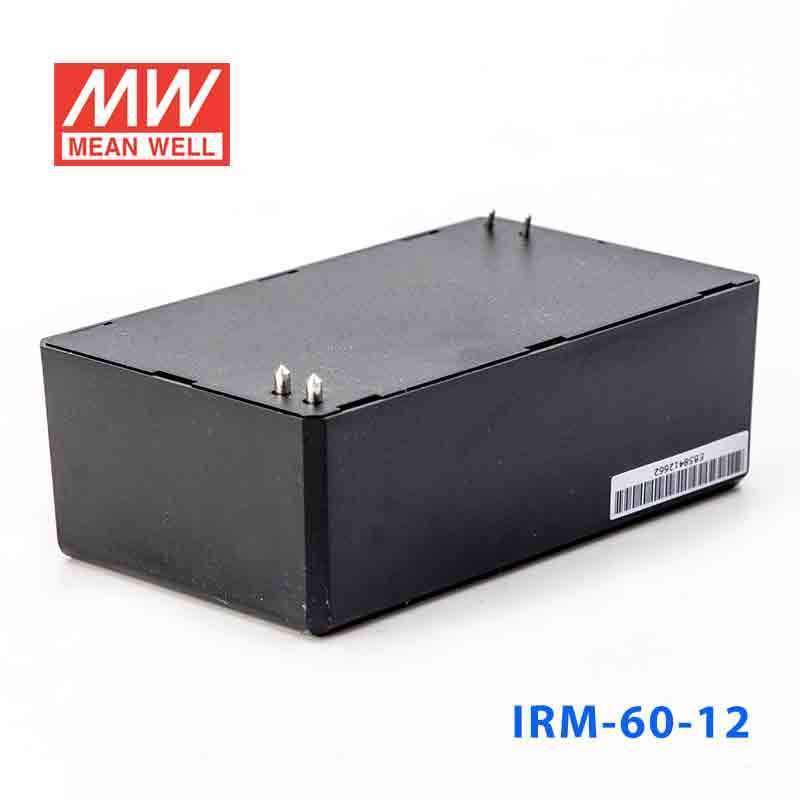

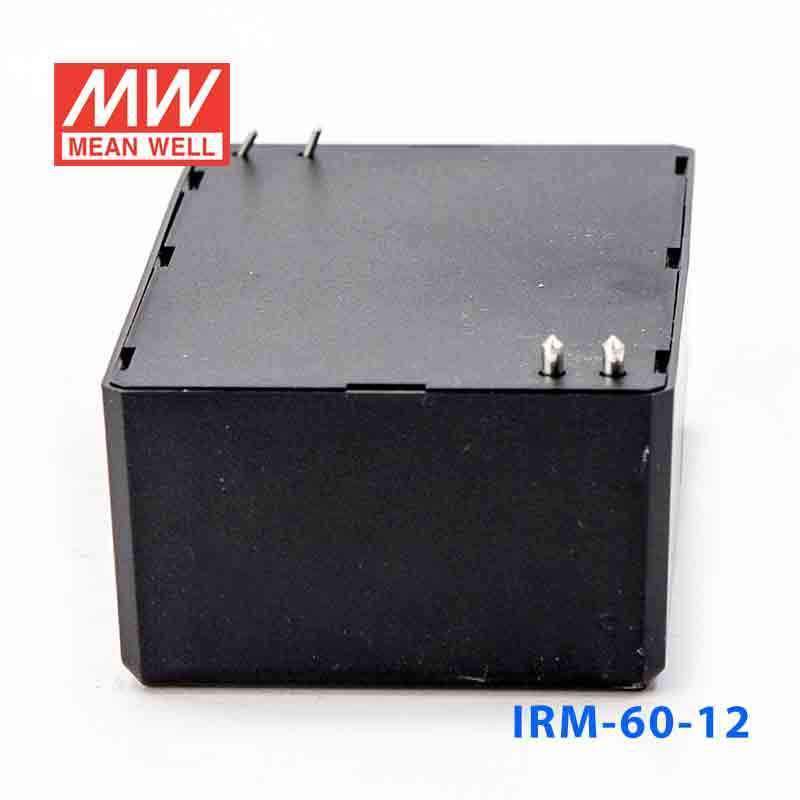

Mean Well IRM-60-12 Switching Power Supply 60W 12V 5A - Encapsulated
The IRM-60 is a 60W Mean Well power converter (input range: 85~305VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: IEC62368-1, UL6 2368 -1, TUV EN6
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.43 in
-
Width2.05 in
-
Height1.16 in
-
Weight0.43 lb
::specification::
Frequently Asked Questions
Can I use the IRM-60-12 for a 12V industrial control or monitoring system?
Yes, it provides constant 12V output up to 5A and 60W, which fits many industrial control, monitoring, and auxiliary electronics loads. It is a good fit when the total 12V demand stays within that 5A limit.
Is the IRM-60-12 suitable for 12V embedded devices and automation accessories?
Yes, this model suits embedded devices, automation accessories, and low-voltage control electronics that require a regulated 12V rail and up to 60W. Compared with the IRM-45-12 at 45.6W and 3.8A, it provides more 12V output headroom.
Can the IRM-60-12 power a 12V security or communications subsystem inside equipment?
It can, provided the subsystem operates on constant 12V and does not exceed 5A or 60W. The wide 85-305VAC input also makes it useful for equipment that may be deployed in regions with different mains voltages.
Will the IRM-60-12 work in cold or warm enclosed equipment areas?
The specified operating range is -30C to +70C, so it is designed for a wide range of enclosed equipment temperatures. No IP rating is listed, so it should be used as an internal encapsulated supply in protected indoor hardware rather than exposed outdoor service.
How does the IRM-60-12 compare with other IRM-60 series models?
The IRM-60 series includes IRM-60-5 at 50W, 5V, 10A; IRM-60-12 at 60W, 12V, 5A; IRM-60-15 at 60W, 15V, 4A; IRM-60-24 at 60W, 24V, 2.5A; and IRM-60-48 at 60W, 48V, 1.25A. Each also has an ST version, and this IRM-60-12 is the PCB mounting style 12V model at 87.0 x 52.0 x 29.5 mm.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other IRM-60 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well IRM-60-24ST Switching Power Supply 60W 24V 2.5A - Encapsulated | 60W | 24V | 2.5A | Indoor | $18.41 | View |
| Mean Well IRM-60-12ST Switching Power Supply 60W 12V 5A - Encapsulated | 60W | 12V | 5A | Indoor | $17.08 | View |
| Mean Well IRM-60-5ST Switching Power Supply 50W 5V 10A - Encapsulated | 50W | 5V | 10A | Indoor | $18.41 | View |
| Mean Well IRM-60-5 Switching Power Supply 50W 5V 10A - Encapsulated | 50W | 5V | 10A | Indoor | $16.48 | View |
| Mean Well IRM-60-48ST Switching Power Supply 60W 48V 1.25A - Encapsulated | 60W | 48V | 1.25A | Indoor | $18.41 | View |
| Mean Well IRM-60-48 Switching Power Supply 60W 48V 1.25A - Encapsulated | 60W | 48V | 1.25A | Indoor | $16.48 | View |
| Mean Well IRM-60-24 Switching Power Supply 60W 24V 2.5A - Encapsulated | 60W | 24V | 2.5A | Indoor | $15.60 | View |
| Mean Well IRM-60-15ST Switching Power Supply 60W 15V 4A - Encapsulated | 60W | 15V | 4A | Indoor | $18.41 | View |
| Mean Well IRM-60-15 Switching Power Supply 60W 15V 4A - Encapsulated | 60W | 15V | 4A | Indoor | $16.48 | View |
