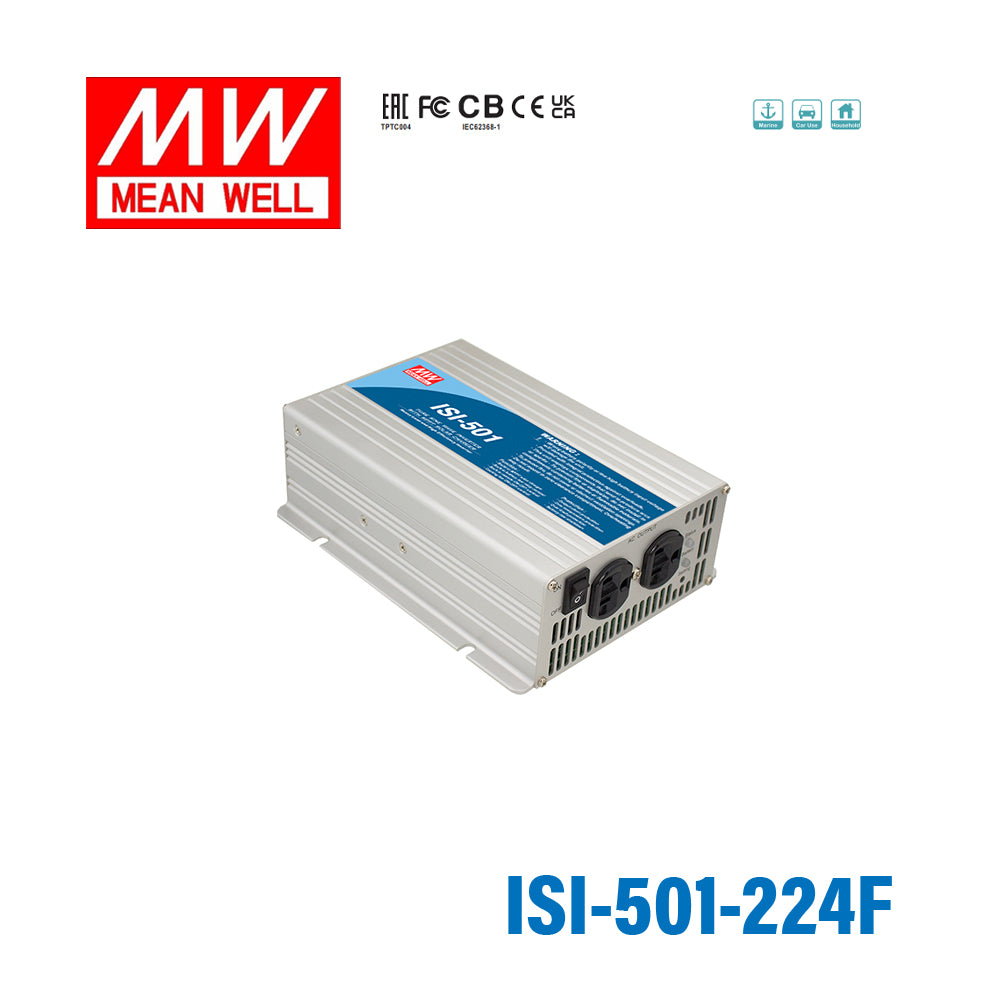

Mean Well ISI-501-224F True Sine Wave DC-AC Inverter 500W 110V out 12V in with MPPT Solar Charger
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ISI-501-224F True Sine Wave DC-AC Inverter 500W 110V out ...
The ISI-501 is a 500W Mean Well power converter (input range: 35~50V).
Key Features
- ✓ Input voltage range: 35~50V
- ✓ Protections: Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: IEC62368-1 CB, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesISI Series
-
Power Rating500 Watt
-
Output Voltage230 Volt
-
Input Voltage21V~30V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~40°C
-
Warranty3 Year
-
Length8.07 in
-
Width6.22 in
-
Height2.64 in
-
Weight5.18 lb
::specification::
Frequently Asked Questions
What is the Mean Well ISI-501-224F designed for?
The ISI-501-224F is a 500W true sine wave DC-AC inverter for applications that need clean AC power from a DC source. It also includes a built-in 500W MPPT solar charger, which makes it suitable for mobile, off-grid, and backup power systems using lead-acid batteries.
What kind of output waveform does this inverter provide?
This model provides a true sine wave output with total harmonic distortion below 3%. That makes it a better fit for sensitive electronics and equipment that benefit from cleaner AC power than modified sine wave alternatives.
What are the main electrical specifications of this model?
The ISI-501-224F is rated for 500W continuous power and supports surge power up to 1000W. Its DC input voltage range is 21 to 30VDC, and the listed no-load current draw is 0.63A.
Does this inverter include a solar charger?
Yes. The unit has a built-in 500W MPPT solar charger with typical MPPT efficiency of 98%. This gives buyers an integrated inverter and solar charging solution in one model.
What battery type is this inverter compatible with?
The product specification lists compatibility with open and sealed lead-acid batteries. That makes it suitable for systems already built around those battery chemistries.
What protection features are included on the ISI-501-224F?
This model includes battery low alarm, battery low shutdown, over-voltage, over-temperature, output short, input polarity reverse, and overload protection. For overload, over-temperature, and output short conditions, the unit shuts down output and requires re-powering to recover.
Can this inverter operate in demanding environments?
It is rated for operation from -20°C to +40°C at 100% load, and up to 60°C at 50% load. The inverter also uses a thermostatically controlled cooling fan to help manage temperature under load.
What are the physical size and warranty for this inverter?
The listed dimensions are 205 x 158 x 67 mm, and the product weight is 2.35 kg. Mean Well specifies a 3-year warranty for this model.
