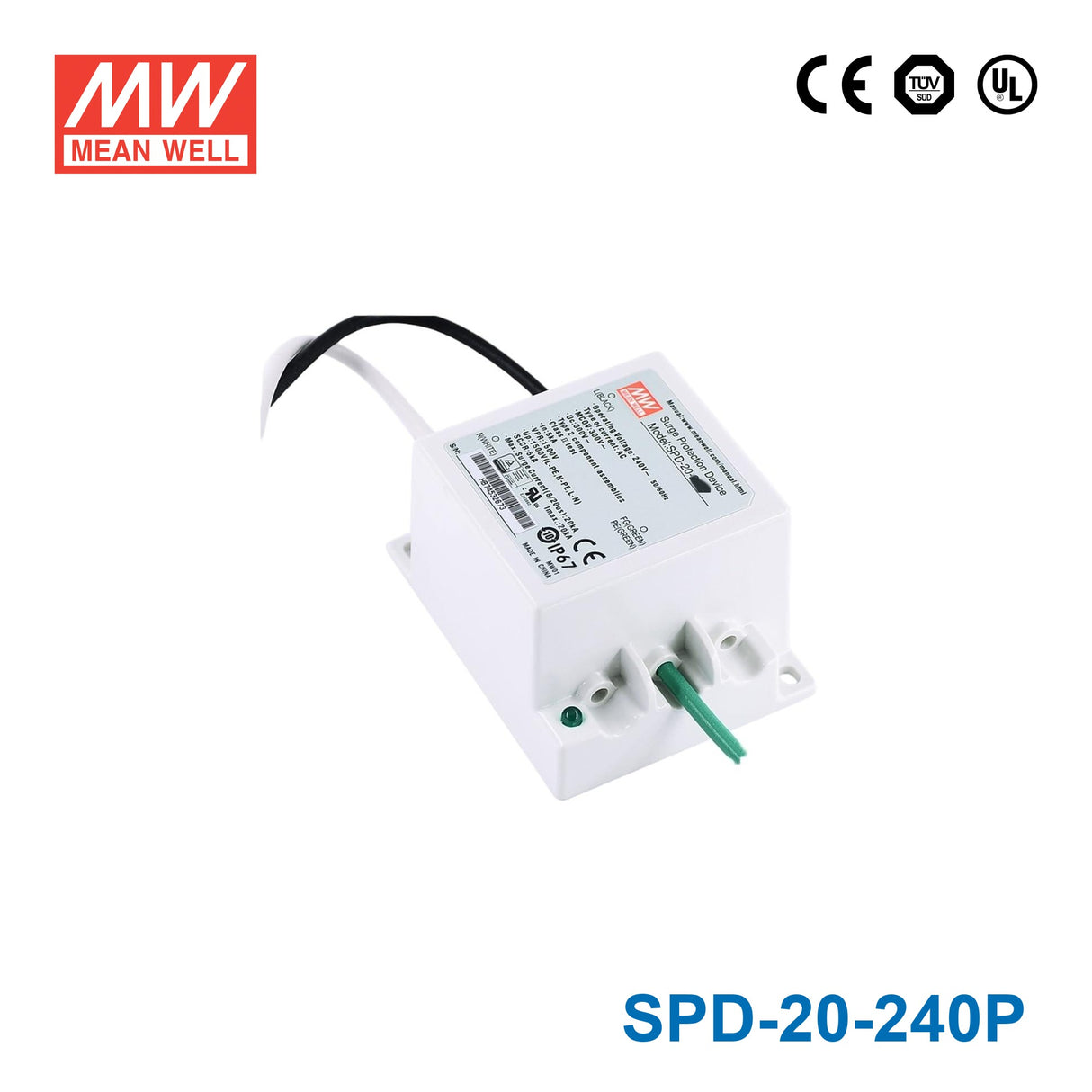

Mean Well SPD-20-240P Surge Protection Device 240VAC 10KV
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SPD-20-240P Surge Protection Device 240VAC 10KV
The SPD-20 is a Mean Well power converter.
Key Features
- ✓ Protections: Short circuit
- ✓ Safety approvals: DIMENSION PACKING NOTE 1600VAC 1minutes -40 ~ +70℃ UL1449(Third Edition),CS22.2 NO.8,EN61643-11(only SPD-20-240P)
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSPD
-
Input Voltage240V~300V
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.54 in
-
Width2.76 in
-
Height1.97 in
-
Weight0.86 lb
::specification::
Frequently Asked Questions
What is the Mean Well SPD-20-240P used for?
The SPD-20-240P is a surge protection device designed to help protect LED drivers and related power supply equipment from surge events. It is intended for applications where 240VAC systems need added surge protection performance.
What surge protection capability does the SPD-20-240P provide?
This model is rated for 10kV surge protection capability and has an Imax rating of 20kA. It is built as a type 2 component assembly for protecting against transient overvoltage events.
Is the SPD-20-240P suitable for outdoor or harsh environments?
Yes. The SPD-20-240P has an IP67 design, which makes it suitable for indoor or outdoor installations where environmental sealing is important. Its operating temperature range is -40°C to +70°C, supporting use in demanding conditions.
How can I tell if the SPD-20-240P needs servicing?
This model includes an LED status indicator. The indicator illuminates when the unit is operating normally and turns off when servicing is needed.
What kind of protection coverage does the SPD-20-240P offer?
The SPD-20-240P provides both line-to-ground and line-to-line protection. That makes it a focused option for AC surge protection in LED driver and power supply applications.
Which standards does the SPD-20-240P comply with?
The product is listed as compliant with IEC61643-11:2011, IEC61000-4-5:2005, and UL1449. These references are relevant for buyers evaluating surge protection devices for commercial or industrial use.
