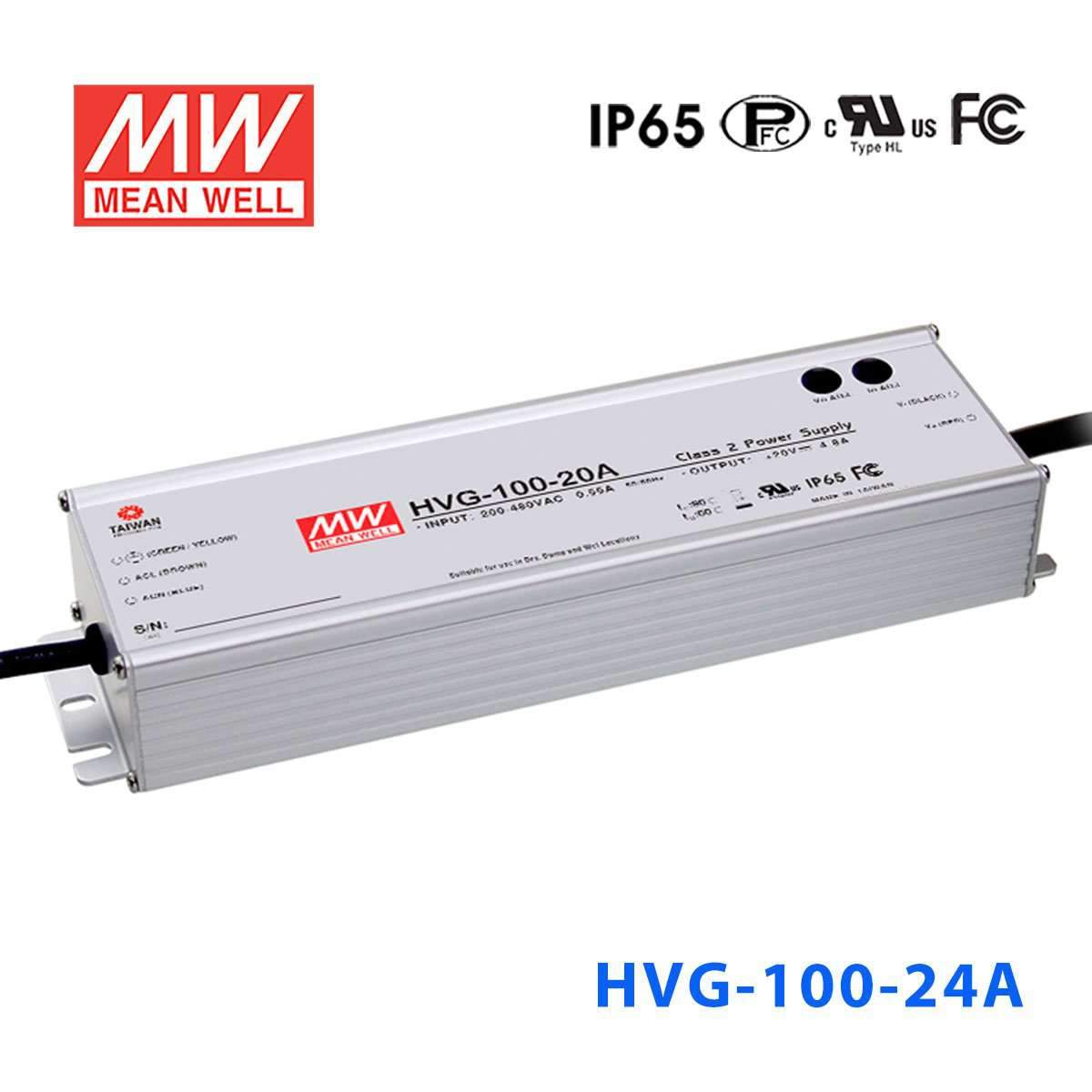

Mean Well HVG-100-24A Power Supply 100W 24V - Adjustable 4A
The HVG-100 is a 100W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.29 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the HVG-100-24A for 24V LED strip lighting in commercial spaces?
Yes, if the 24V load stays within 96W and 4A. It is intended for 24V lighting products operating within a 12-24V constant current range, so the connected load needs to match that specification.
Is this driver suitable for 24V sign or display lighting?
It can be used for 24V sign and display lighting loads up to 96W and 4A. The IP65 water-resistant housing also helps in locations where the driver may be exposed to dust or water spray.
Can the HVG-100-24A power 24V architectural accent lighting?
It is suitable for 24V accent lighting systems that fit within the driver's 96W maximum output and 4A current rating. With an operating temperature range of -40°C to +90°C, it is built for a wide range of indoor and semi-exposed lighting environments.
How much 24V LED strip can I run from the HVG-100-24A?
Estimate the run length with maximum length = 96W ÷ strip watts per meter. You also need to keep total current within 4A, so check your strip rated power per meter before final sizing.
Is the HVG-100-24A appropriate for outdoor use?
It has an IP65 water-resistant rating, so it suits outdoor locations where the driver may see dust and water spray. For more exposed wet conditions, an IP67 version in the family is typically the closer match.
