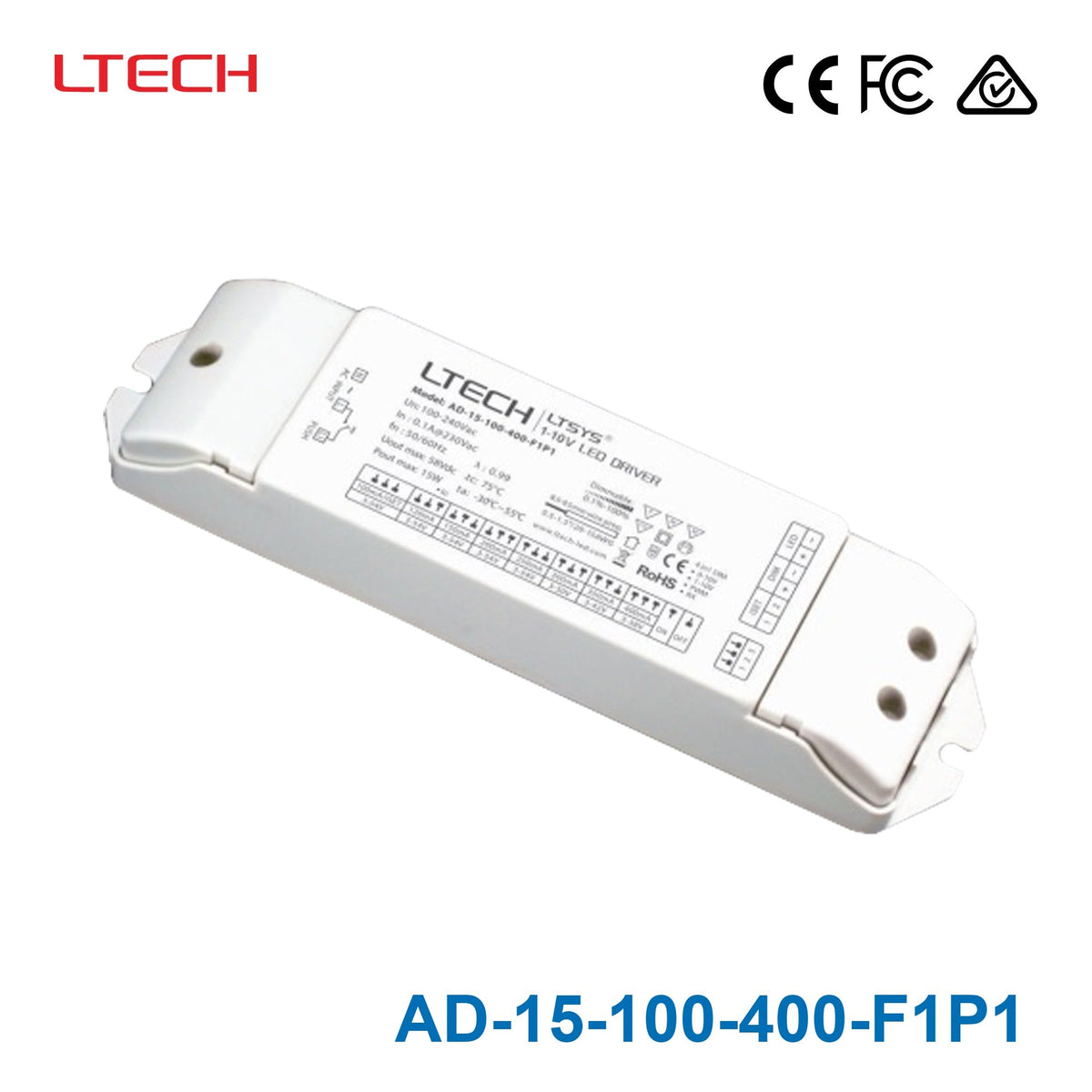

Ltech AD-15-100-400-F1P1 LED intelligent Driver
The AD-15-100-400-F1P1 is intended for internal lighting applications. It is described for use in Class I, II, and III lighting environments and uses a full protective plastic housing with Safety Extra Low Voltage compliance. It is best positioned where compact, low-power constant-current dimming performance is needed indoors.
Input 100~240VAC. 1 channel. Operating temperature -40~+80°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 100~240VAC
- ✓Dimming: 1-10V
- ✓Output channels: 1 Channel
- ✓Output voltage: 58V
- ✓Output current: 100~400mA, selectable by DIP switch
- ✓Rated power: 10W
- ✓Ingress protection: IP20
- ✓Operating temperature: -40~+80°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 175 x 44 x 30mm
- ✓5 year warranty
-
BrandLtech
-
Power Rating10 Watt
-
Output Voltage58 Volt
-
Rated Current0.5 Ampere
-
Input Voltage100V~240V
-
No of Output400
-
Dimming Control1-10V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.35 lb
::specification::
Frequently Asked Questions
What type of lighting application is the Ltech AD-15-100-400-F1P1 designed for?
This model is intended for internal lighting applications. It is described for use in Class I, II, and III lighting environments and uses a full protective plastic housing with Safety Extra Low Voltage compliance. It is best positioned where compact, low-power constant-current dimming performance is needed indoors.
Is the AD-15-100-400-F1P1 compatible with 0-10V and 1-10V dimming controls?
Yes. This driver automatically recognizes both 0-10V and 1-10V input signals, which makes it suitable for projects using either dimming standard. That flexibility can simplify product selection when control methods vary across commercial lighting specs.
How smooth is the dimming performance on this LED intelligent driver?
The AD-15-100-400-F1P1 uses T-PWM digital dimming to deliver a more refined visual result. Its dimming range is 0 to 100%, and LED startup at 0.01% is possible for very low-light adjustment. The built-in SCM also allows the dimming curve and smoothing time to be customized.
Is this driver suitable for flicker-sensitive lighting environments?
Yes. This model is specified as flicker-free under IEEE 1789 and is stated to achieve the exemption assessment level. That makes it a strong choice where visual comfort and reduced flicker are important selection criteria.
What are the main electrical ratings of the Ltech AD-15-100-400-F1P1?
This model is rated at 10W with a 58V output and 0.5A rated current. Those published values make it a low-power constant-current LED driver intended for applications that need controlled dimming rather than higher-output power delivery. Buyers should match it to fixtures that fit those exact driver ratings.
What protection and environmental durability features does this driver include?
The AD-15-100-400-F1P1 includes over-heat, over-load, and short-circuit protection. It also uses innovative thermal management technology with intelligent power life protection. The stated operating temperature range is -40°C to 80°C, which supports demanding indoor operating conditions.
What warranty is offered on the AD-15-100-400-F1P1?
This LED intelligent driver carries a 5-year warranty. For buyers comparing long-term reliability and support coverage, that warranty period is a meaningful advantage for a compact Class 2 dimmable driver. It aligns with applications where service life and maintenance planning matter.
