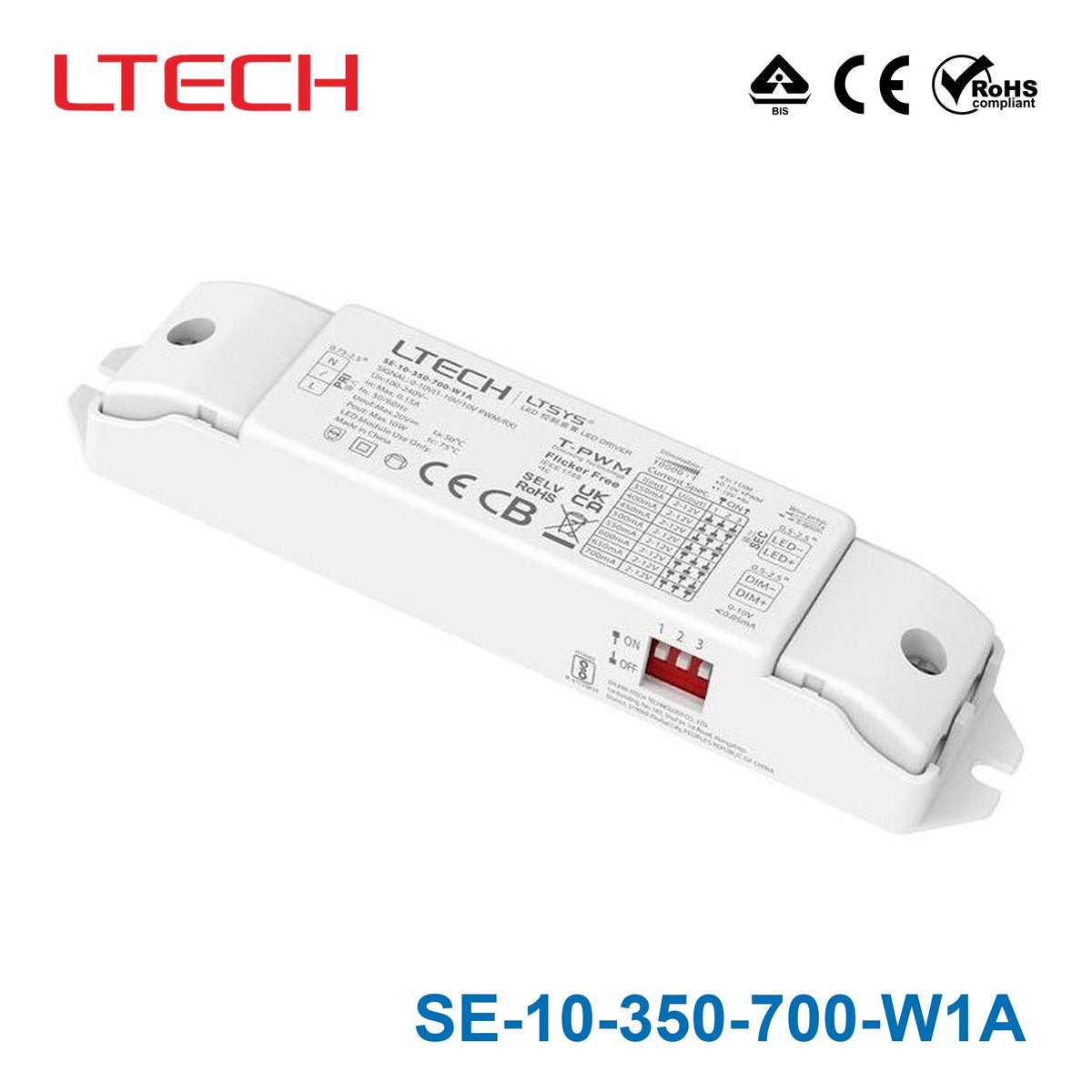

LTECH SE-10-350-700-W1A 10W 350mA~700mA CC 0-10V LED Driver
The LTECH SE-10-350-700-W1A is a 10W constant-current LED driver with 0-10V dimming control. It is designed for applications that need adjustable output current within the 350mA to 700mA range.
Input 100~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 100~240VAC
- ✓Dimming: 0-10V
- ✓Output voltage: 24V
- ✓Output current: 350~700mA, selectable by DIP switch
- ✓Rated power: 10W
- ✓Operating temperature: -20~+50°C
- ✓Certifications: BIS, CE, ROHS
- ✓Dimensions: 135 x 30 x 20mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating8.4 Watt
-
Output Voltage20 Volt
-
Rated Current0.35 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming Control0-10V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length5.32 in
-
Width1.18 in
-
Height0.79 in
-
Weight0.18 lb
::specification::
Frequently Asked Questions
What type of LED driver is the LTECH SE-10-350-700-W1A?
The LTECH SE-10-350-700-W1A is a 10W constant-current LED driver with 0-10V dimming control. It is designed for applications that need adjustable output current within the 350mA to 700mA range.
What dimming performance does this model offer?
This model supports 0-10V dimming from 0% to 100%, with dimming depth down to 0.01%. It also includes soft-on and fade-in dimming behavior for smoother visual transitions and improved comfort.
Is the SE-10-350-700-W1A suitable for flicker-sensitive lighting applications?
Yes, this driver uses T-PWM dimming technology intended to deliver continuous, flicker-free images under high-speed shooting conditions. That makes it a strong option for applications where lighting stability matters on camera or in visually sensitive environments.
What operating environment is this LED driver rated for?
The SE-10-350-700-W1A is rated for ambient temperatures from -20°C to 50°C. This range makes it suitable for many indoor and controlled-environment commercial lighting applications, provided the installation stays within those limits.
What protection features are included in this driver?
This model includes over-voltage, overload, and short-circuit protection with automatic recovery. These built-in protections help support reliability in demanding LED power applications.
What makes this model different from a fixed-current LED driver?
Unlike a fixed-current driver, the SE-10-350-700-W1A supports multiple current levels between 350mA and 700mA. That gives buyers more flexibility when matching one driver model to different constant-current LED load requirements within its rated range.
What are the physical and durability highlights of this LED driver?
The housing uses V0 flame-resistant polycarbonate from SAMSUNG/COVESTRO and is designed to be compact and lightweight. The unit weighs 0.08 kg and is backed by a 5-year warranty.
