Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

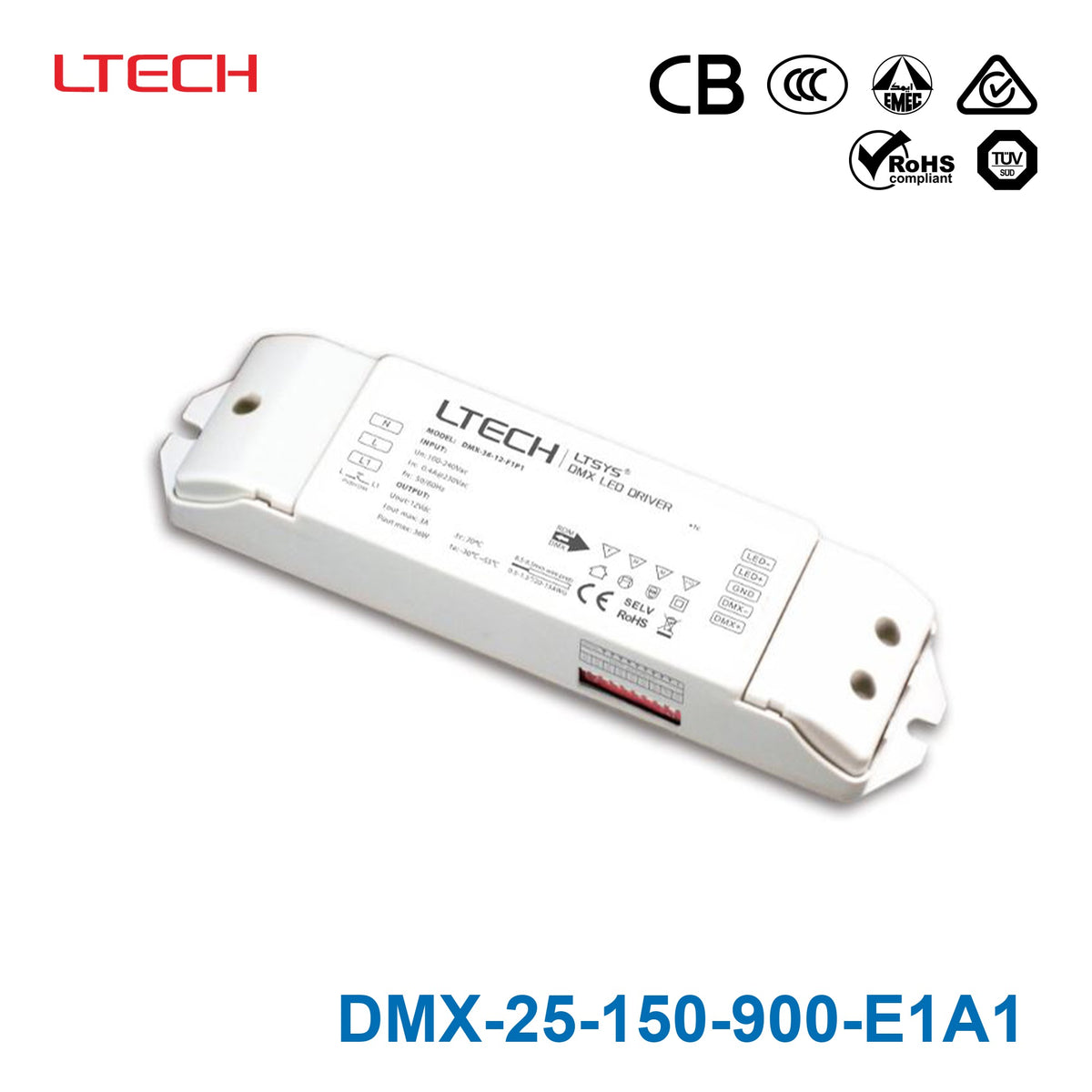

Ltech DMX-25-150-900-E1A1 25W 150~900mA CC DMX LED Driver - Selecta...
The DMX-25-150-900-E1A1 is aimed at indoor constant-current LED lighting where DMX control is required. Its 25W output and selectable 150 to 900mA current range make it relevant for commercial, architectural, and specialty LED applications that need dimming flexibility on one driver platform.
Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 3 year warranty.
Key Features
- ✓Input voltage: 220~240VAC
- ✓Dimming: DMX
- ✓Output voltage: 58V
- ✓Output current: 150~900mA, selectable by DIP switch
- ✓Rated power: 25W
- ✓Operating temperature: -20~+50°C
- ✓Certifications: CB, CCC, EMEC, RCM, ROHS, TUV
- ✓Dimensions: 167 x 41 x 32mm
- ✓3 year warranty
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating25 Watt
-
Output Voltage58 Volt
-
Rated Current0.15 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCB,CCC,EMEC,RCM,ROHS,TUV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty3 Year
-
Length6.57 in
-
Width1.61 in
-
Height1.26 in
-
Weight0.37 lb
::specification::
Frequently Asked Questions
What types of lighting projects is the Ltech DMX-25-150-900-E1A1 best suited for?
This model is aimed at indoor constant-current LED lighting where DMX control is required. Its 25W output and selectable 150 to 900mA current range make it relevant for commercial, architectural, and specialty LED applications that need dimming flexibility on one driver platform.
What does the selectable 150~900mA output mean on this LED driver?
The DMX-25-150-900-E1A1 allows you to choose from multiple constant-current output settings within a 150 to 900mA range. That gives buyers more flexibility when standardizing on one driver model for LEDs that require different drive currents within the supported range.
Is this a constant-current driver or a constant-voltage driver?
This is a constant-current LED driver, not a constant-voltage model. It is designed for LED loads that are specified by drive current, and the product supports selectable current settings with a maximum output voltage of 58V.
Why choose this model over a fixed-current LED driver?
A fixed-current driver is limited to one output current, while this Ltech model supports multiple selectable current options in a single unit. For B2B purchasing, that can simplify sourcing when projects use different constant-current LED requirements but still need DMX dimming capability.
What dimming control options does the DMX-25-150-900-E1A1 support?
This model supports DMX512/RDM dimming and also lists Push DIM and T-PWM digital dimming in the product description. It is intended for applications where precise dimming behavior and remote management support through RDM are important.
Is the Ltech DMX-25-150-900-E1A1 suitable for indoor or outdoor use?
Based on the product description, this driver is suitable for indoor use. Its stated operating temperature range is -20°C to 50°C, which helps buyers assess whether it fits the expected ambient conditions of the installation environment.
How low can this driver dim the connected LED load?
The product description states a 0 to 100% dimming range with flicker-free performance and LED startup possible at 0.01%. That makes it a strong fit for projects where smooth low-end dimming and stable light output are important.
