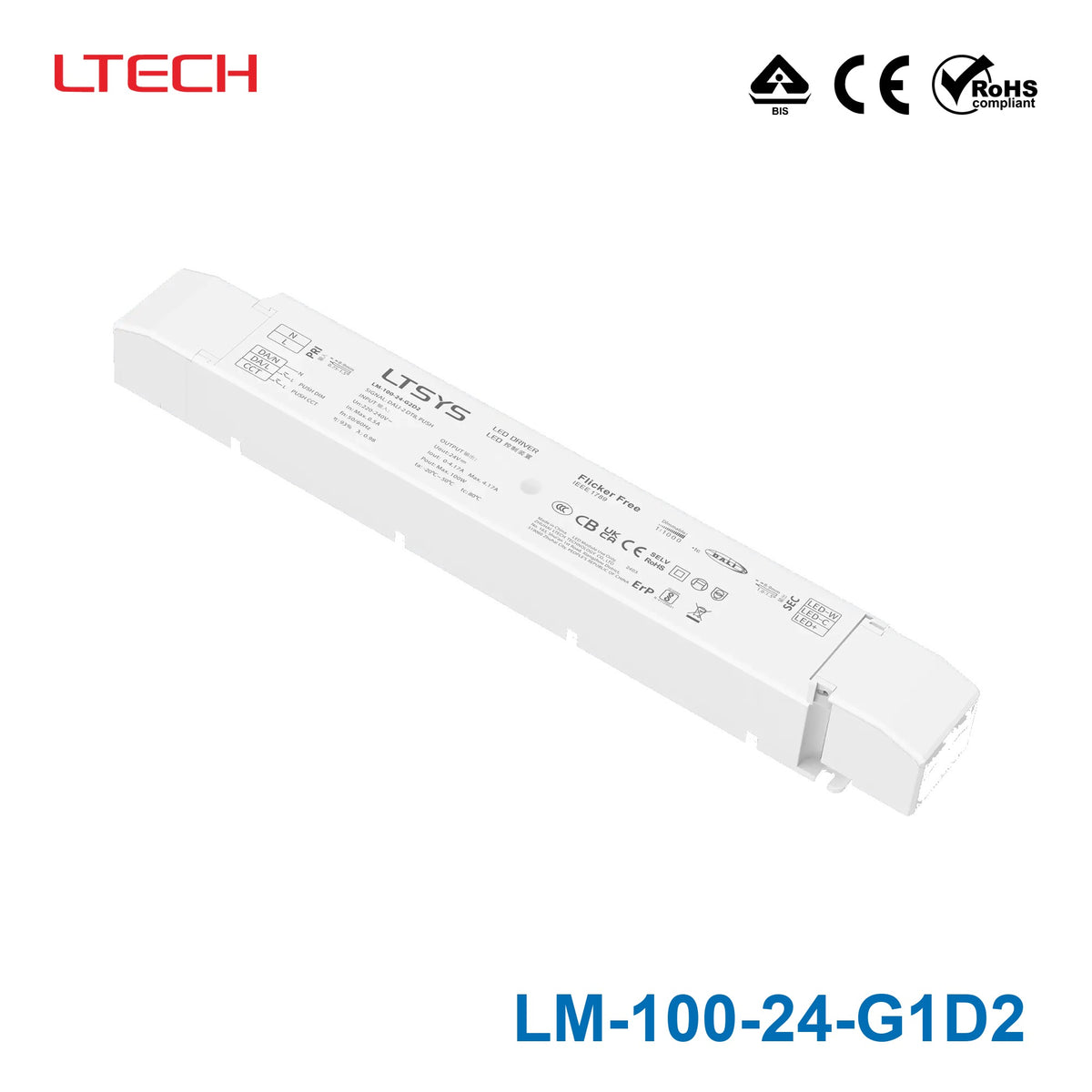

Ltech LM-100-24-G1D2 100W 24VDC CV DALI2 LED Driver 4.17A
The Ltech LM-100-24-G1D2 is a 100W constant-voltage 24VDC LED driver designed for indoor lighting applications. It is intended for projects that need DALI or Push DIM dimming with 24V constant-voltage LED products.
Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 220~240VAC
- ✓Dimming: DALI, Push DIM
- ✓Output voltage: 24V
- ✓Rated output current: 4.17A
- ✓Rated power: 100W
- ✓Ingress protection: IP20
- ✓Operating temperature: -20~+50°C
- ✓Certifications: BIS, CE, ROHS
- ✓Dimensions: 293 x 43 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4.17 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlDALI,Push Dimming
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What is the Ltech LM-100-24-G1D2 used for?
The Ltech LM-100-24-G1D2 is a 100W constant-voltage 24VDC LED driver designed for indoor lighting applications. It is intended for projects that need DALI or Push DIM dimming with 24V constant-voltage LED products.
Does this LED driver support DALI dimming?
Yes. This model supports DALI dimming and is listed as compatible with both DALI 1 and DALI 2 protocols. It also supports Push DIM control for applications that require that dimming method.
What dimming range does the LM-100-24-G1D2 offer?
This driver supports dimming from 0% to 100%. It also states LED start at 0.1% is possible, which helps in low-level dimming applications where very fine light output control is important.
What output and power rating does this model provide?
The LM-100-24-G1D2 is rated for 24VDC output with 100W total power. Its rated output current is 4.17A, making it suitable for 24V constant-voltage LED loads within that power range.
Is this driver suitable for indoor commercial lighting projects?
Yes, this model is described as suitable for indoor I, II, and III type lamp applications. Its DALI dimming support and low standby power loss under 0.5W make it relevant for commercial and professional lighting environments.
What protections are built into the LM-100-24-G1D2?
This driver includes over-heat, over-load, and short-circuit protection. The product description also states that it recovers automatically after these protection events.
What operating temperature range is this LED driver rated for?
The LM-100-24-G1D2 is rated for operation from -20°C to 50°C. That makes it appropriate for indoor environments that stay within this specified temperature range.
What kind of housing and warranty does this model have?
This LED driver uses a full protective plastic housing. It also carries a 5-year warranty, which is a useful consideration for long-term commercial lighting projects.
