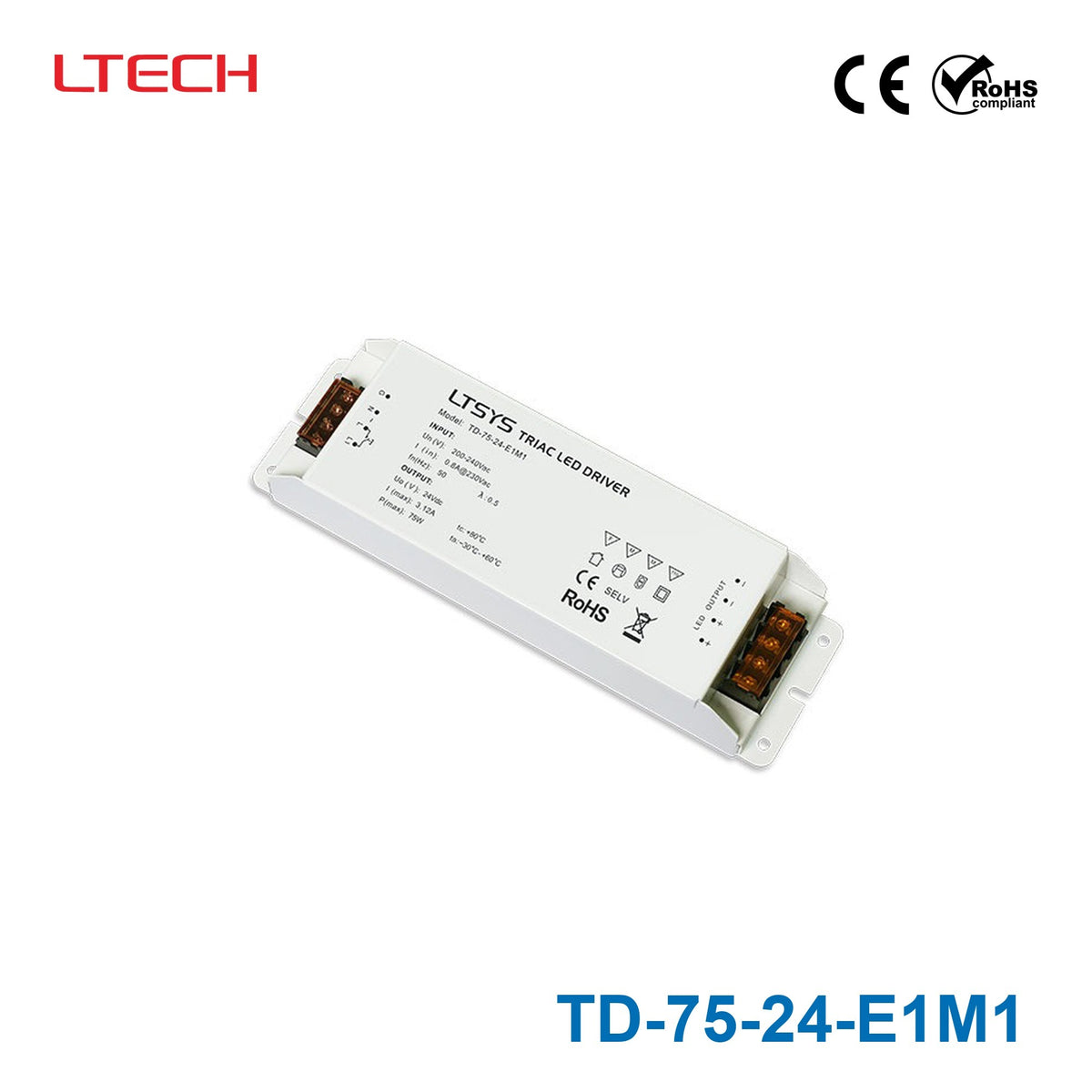

LTECH TD-75-24-E1M1 75W 24VDC CV Triac Driver 3.12A
The LTECH TD-75-24-E1M1 is a constant-voltage LED driver with a 24VDC output. It is rated for 75W maximum power and 3.12A rated current, making it suitable for 24V LED lighting applications that need phase-cut dimming support.
Input 200~240VAC. Operating temperature -30~+60°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 200~240VAC
- ✓Dimming: AC phase cut (TRIAC)
- ✓Output voltage: 24V
- ✓Rated output current: 3.12A
- ✓Rated power: 75W
- ✓Operating temperature: -30~+60°C
- ✓Certifications: CE, ROHS
- ✓Dimensions: 204 x 62 x 34mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage200V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty5 Year
-
Length8.03 in
-
Width2.44 in
-
Height1.34 in
-
Weight0.97 lb
::specification::
Frequently Asked Questions
What is the output specification of the LTECH TD-75-24-E1M1?
The LTECH TD-75-24-E1M1 is a constant-voltage LED driver with a 24VDC output. It is rated for 75W maximum power and 3.12A rated current, making it suitable for 24V LED lighting applications that need phase-cut dimming support.
What dimming methods does this driver support?
This model supports both leading edge and trailing edge TRIAC dimmers. It also supports Push Dim control, giving more flexibility for projects that use phase-cut dimming methods.
Is the TD-75-24-E1M1 suitable for flicker-sensitive lighting applications?
This driver uses high-frequency PWM digital dimming and is described as having no flicker in video camera use. It is also specified to maintain LED color rendering performance during dimming, which can matter in visual environments.
What dimming range does the LTECH TD-75-24-E1M1 offer?
The stated dimming range is 0 to 100%. LTECH also notes that LED start at 0.1% is possible on this model, which helps in applications that need very low light output.
Can this driver be used indoors or outdoors?
The TD-75-24-E1M1 is specified as suitable for indoor environments. The provided product data does not list outdoor suitability, so it should be selected for indoor use cases only.
What protection features are included in this LED driver?
This model includes short circuit, over-temperature, overload, and over-voltage protection. These built-in protections help support reliability in demanding commercial and architectural LED applications.
What operating temperature range is supported by this model?
The specified operating temperature range is -30°C to 60°C. That makes the TD-75-24-E1M1 suitable for a broad range of indoor environments where temperature conditions may vary.
What kind of LED projects is the TD-75-24-E1M1 best suited for?
This model is best suited for 24V constant-voltage LED lighting projects that need TRIAC or ELV-style dimming compatibility. Its 75W rating makes it a fit for medium-power indoor applications where smooth dimming and low-light control are important.
