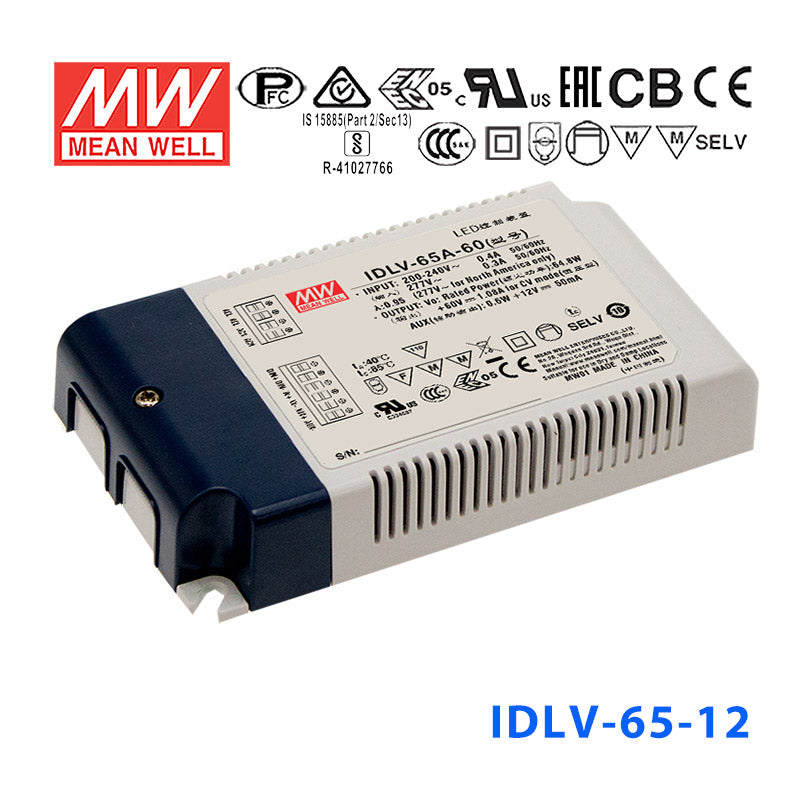

Mean Well IDLV-65-12 Power Supply 65W 12V, Dimmable 4.2A
The IDLV-65 is a 50.4W Mean Well AC-DC constant voltage LED driver (input: 180~295VAC, output: 12V, operating temperature: -20~+85°C).
Key Features
- ✓ Input voltage: 180~295VAC
- ✓ Output voltage: 12V
- ✓ Rated output current: 4.2A
- ✓ Operating temperature: -20~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, RCM, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesIDLV Series
-
Power Rating50.4 Watt
-
Output Voltage12 Volt
-
Rated Current4.2 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length5.12 in
-
Width2.95 in
-
Height0.98 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the IDLV-65-12 for longer 12V LED strip runs than a 36W driver?
Yes, this 12V constant voltage driver provides 50.4W and 4.2A, so it supports more 12V strip load than a 36W model. It is suitable for higher-capacity 12V strip lighting as long as the total load stays within 50.4W.
Is the IDLV-65-12 suitable for 12V LED signage applications?
Yes, it can be used for 12V LED signage where the sign lighting is designed for constant voltage operation and the total demand does not exceed 50.4W. The 4.2A output gives more current headroom than lower-power 12V versions in the series.
Can this driver power brighter 12V accent or display lighting setups?
Yes, the IDLV-65-12 is intended for 12V constant voltage lighting and can support higher-load accent or display lighting up to 50.4W. That makes it better suited to larger 12V lighting loads than the 21.6W and 36W 12V versions.
Is the IDLV-65-12 appropriate for 12V cabinet or architectural strip lighting?
It can be a fit for 12V cabinet, cove, or architectural strip lighting when the system uses 12V constant voltage products and stays within 50.4W. Its 4.2A output supports moderate-to-higher 12V strip loads for these applications.
What LED strip length can I estimate from the IDLV-65-12?
The maximum available strip power is 50.4W, so estimated length is 50.4W divided by your strip's rated power per meter. Use the formula 50.4 ÷ watts per meter = maximum meters, and check your strip rated power per meter before choosing length.
Can the IDLV-65-12 be used in outdoor or wet environments?
The listed specifications do not provide an IP rating, so it should not be assumed suitable for outdoor or wet-location use based on this data alone. It does have an operating temperature range of -20°C to +85°C, but that only addresses temperature, not moisture protection.
How does the IDLV-65-12 compare with other 12V models in the IDLV family?
For 12V units in the series, IDLV-25-12 and IDLV-25A-12 are 21.6W and 1.8A, IDLV-45-12 and IDLV-45A-12 are 36W and 3A, and IDLV-65-12 and IDLV-65A-12 are 50.4W and 4.2A. Compared with the lower 12V models, this version offers the highest listed 12V output capacity in that group.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other IDLV-65 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well IDLV-65-60 Power Supply 65W 60V, Dimmable | 64.8W | 60V | 1.08A | — | $23.64 | View |
| Mean Well IDLV-65-48 Power Supply 65W 48V, Dimmable | 64.8W | 48V | 1.35A | — | $24.96 | View |
| Mean Well IDLV-65-36 Power Supply 65W 36V, Dimmable | 64.8W | 36V | 1.8A | — | $24.96 | View |
| Mean Well IDLV-65-24 Power Supply 65W 24V, Dimmable | 57.6W | 24V | 2.4A | — | $25.89 | View |
