Can I use the PLM-12-500 for a 500mA LED downlight?

Yes, if the downlight is designed for 500mA constant current and the LED load falls within the 15-24V CC range. This model is a 12W constant current driver, so it should not be used as a constant voltage source.

Is the PLM-12-500 suitable for constant current LED signage modules?

It is suitable for signage modules that are specified for 500mA constant current and whose forward voltage stays within 15-24V. That makes it a better fit for constant current modules than for 12V or 24V constant voltage signage products.

Would the PLM-12-500 work for a compact LED array in the 12W class?

Yes, if the array is designed for 500mA constant current and its total forward voltage is within 15-24V. Its 12W power level fits compact LED arrays better than higher-power assemblies.

How do I match the PLM-12-500 to the right LED load?

Match it to LEDs that need 500mA constant current and whose combined forward voltage fits the 15-24V CC output range. The number of LEDs depends on each LED's forward voltage, so there is no single correct LED count.

Is this driver meant for exposed outdoor conditions?

The operating temperature range is -30°C to +50°C, and the unit has a fully isolated plastic case with Class II design. No IP rating is listed, so exposed wet or dusty environments should be evaluated through the enclosure or fixture design rather than assumed from the driver alone.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

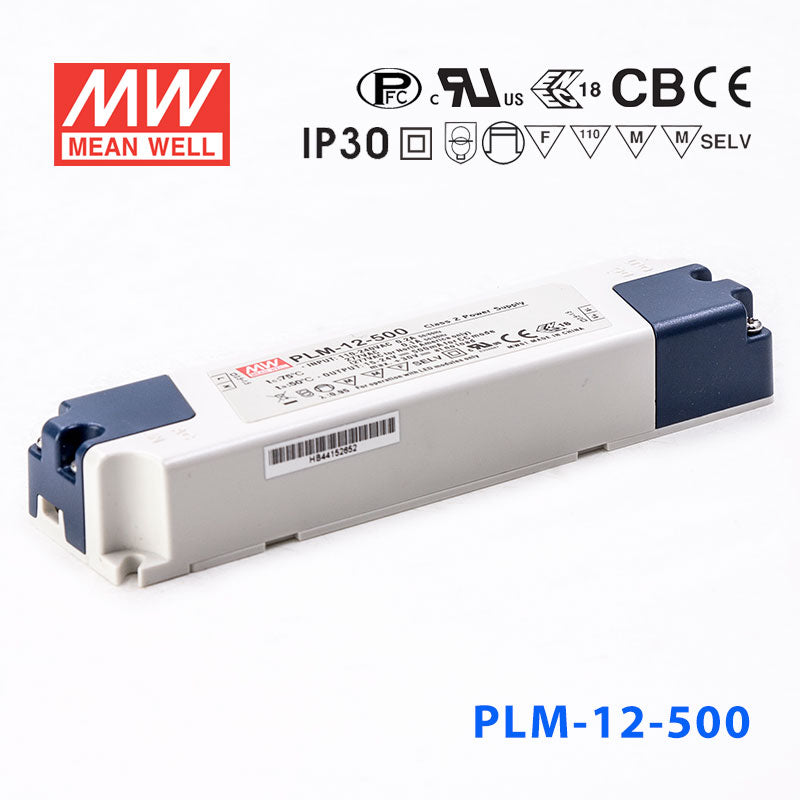

Mean Well PLM-12-500, 500mA Constant Current with PFC - Terminal Block

Name: Mean Well PLM-12-500, 500mA Constant Current with PFC - Terminal Block
Brand: Mean Well
SKU: PLM-12-500
Price: 14.16 USD
Availability: InStock

fully isolated plastic caseClass II design without FGpush terminal I/O

SKU PLM-12-500

$14.16 USD ~~$100.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The PLM-12 is a 12W Mean Well AC-DC constant current LED driver (input: 110~295VAC, output: 30V, operating temperature: -30~+50°C).

Key Features

✓ Input voltage: 110~295VAC
✓ Output voltage (max): 30V
✓ Rated output current: 500mA
✓ Class II design — no earth connection required
✓ Operating temperature: -30~+50°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 2 year warranty

Brand

Mean Well
Series

PLM Series
Power Rating

12 Watt
Output Voltage

30 Volt
Rated Current

0.5 Ampere
Input Voltage

110V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

5.71 in
Width

1.5 in
Height

0.87 in
Weight

0.28 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PLM-12-700, 700mA Constant Current with PFC - Terminal Block	12.6W	22V	0.7A	Indoor	$14.85	View
Mean Well PLM-12-350, 350mA Constant Current with PFC - Terminal Block	12.6W	42V	0.35A	Indoor	$14.85	View
Mean Well PLM-12-1050, 1050mA Constant Current with PFC - Terminal Block	12.6W	16V	1.05A	Indoor	$14.85	View

Please log in to write a review.

Key Features

✓ Input voltage: 110~295VAC

✓ Output voltage (max): 30V

✓ Rated output current: 500mA

✓ Class II design — no earth connection required

✓ Operating temperature: -30~+50°C

✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL

✓ 2 year warranty
